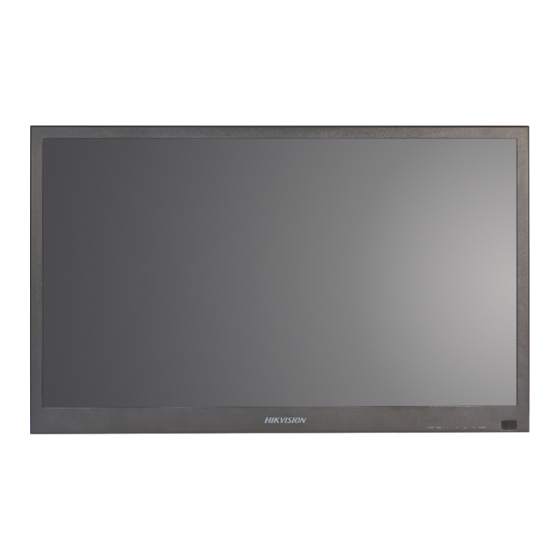

32 and 42-inch LCD Unit User Manual
DS-D5032FL
User Manual
UD00253N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-D5032FL/D and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-D5032FL/D

Summary of Contents for HIKVISION DS-D5032FL/D

  • Page 1 32 and 42-inch LCD Unit User Manual DS-D5032FL User Manual UD00253N...
  • Page 2 32 and 42-inch LCD Unit User Manual User Manual About this Manual This Manual is applicable to 32 and 42-inch LCD Unit. The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons.
  • Page 3 32 and 42-inch LCD Unit User Manual Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 32 and 42-inch LCD Unit User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected. Cautions: Injury or equipment damage may occur if any of the cautions are neglected.

  • Page 5: Table Of Contents

    Introduction ....................... 5 Main Features ........................5 Power Supply Connection ....................6 Chapter 2 Device Interfaces ....................... 7 DS-D5032FL/D and DS-D5042FL/D ................7 DS-D5032FL/S and DS-D5042FL/S ................7 DS-D5032FL and DS-D5042FL ..................8 Chapter 3 Panel Buttons ......................9 Chapter 4 Remote Control .......................

  • Page 6: Chapter 1 Introduction

    32 and 42-inch LCD Unit User Manual Chapter 1 Introduction 1.1 Main Features  8 bit/10 bit 2-ch LVDS(1920× 1080) HD display  3-D digital comb filter  operation menu True color OSD and user-friendly  Mstar ACE-5 auto color and im age enhancement engine, improve the image contrast, details, color of skin and edges, and so on ...

  • Page 7: Power Supply Connection

    32 and 42-inch LCD Unit User Manual 1.2 Power Supply Connection Insert the power adapter into the well-grounded socket and turn the power switch on. Figure 1.1 Power Adapter Input Voltage 100 to 240V AC Output Voltage 12 V Power Adapter Output Current 3.33 A Output Power...

  • Page 8: Chapter 2 Device Interfaces

    32 and 42-inch LCD Unit User Manual Chapter 2 Device Interfaces 2.1 DS-D5032FL/D and DS-D5042FL/D Figure 2.1 Rear Panel (1) Table 2. 1 Interface Description Interfaces Description FIBER Optical fiber interface Network interface HDMI IN HDMI digital signal input DVI IN...

  • Page 9: Ds-D5032Fl And Ds-D5042Fl

    32 and 42-inch LCD Unit User Manual Table 2. 2 Interface Description Interfaces Description SDI IN SDI signal input SDI signal output SDI OUT HDMI IN HDMI digital signal input DVI IN DVI digital signal input VGA IN VGA analog signal input CVBS/IN Composite video input USB interface...

  • Page 10: Chapter 3 Panel Buttons

    32 and 42-inch LCD Unit User Manual Chapter 3 Panel Buttons Buttons on lower right corner of the LCD unit panel are shown as the Figure 3.1. Figure 3.1 Buttons on the Display Unit Table 3. 1 Button Description Buttons Description SOURCE Press to show source menu...

  • Page 11: Chapter 4 Remote Control

    32 and 42-inch LCD Unit User Manual Chapter 4 Remote Control A remote control is attached when you purpose the LCD unit and you can use the remote control to control LCD unit. For detailed button function, refer to Table 4.1 Button Description. Figure 4.
  • Page 12 32 and 42-inch LCD Unit User Manual Table 4. 1 Button Description Name Function Name Function MENU POWER Turn on/off the LCD Menu unit SOURCE Input source menu TEST Aging test Reserved MUTE Turn off/on the sound Number 0-9 PLAY Play/Pause Numerical button FREEZE...

  • Page 13: Chapter 5 Basic Operation

    DS-D5032FL and DS-D5042FL include 5 input signal sources: AV, HDMI, DVI, PC-RGB, and USB. Input Source HDMI PC-RGB Figure 5. 1 Input Signal Source (1)  DS-D5032FL/D and DS-D5042FL/D include 6 input signal sources: AV, HDMI, DVI, PC-RGB, USB, and IP. Input Source HDMI PC-RGB Figure 5. 2 Input Signal Source (2)

  • Page 14: Main Menu

    32 and 42-inch LCD Unit User Manual  DS-D5032FL/S and DS-D5042FL/S include 6 input signal sources: AV, HDMI, DVI, PC-RGB, USB and SDI. Input Source HDMI PC-RGB Figure 5. 3 Input Signal Source (3) 5.2 Main Menu 5.2.1 Image Parameters ...
  • Page 15 32 and 42-inch LCD Unit User Manual 4. Press Menu button to return to the main menu after finishing the adjustment. Picture Mode Custom Contrast Brightness Picture Mode Color Light Mode Sharpness Sound Setting VGA Parameter Figure 5. 4 Picture Mode ...
  • Page 16 32 and 42-inch LCD Unit User Manual Light Mode Normal Picture Mode Light Mode Sound Setting VGA Parameter Figure 5. 5 Light Mode  Sound Settings Purpose: You can switch the mute On/Off and adjust the sound value and balance. Steps: 1.
  • Page 17 32 and 42-inch LCD Unit User Manual MUTE Volume Value Picture Mode Balance Light Mode Sound Setting VGA Parameter Figure 5. 6 Sound Setting  VGA Parameter Purpose: When the input source is selected as VGA, you can adjust the VGA parameters including H position, V Position, clock and phase.

  • Page 18: Overscan

    32 and 42-inch LCD Unit User Manual Auto Adjust H Position Picture Mode V Position Light Mode Clock Sound Setting Phase VGA Parameter Figure 5. 7 VGA Parameters 5.2.2 Overscan Purpose: When there is a black border, you can shield the border for the better image quality, and you can adjust the overscan value via pressing up/down/left/right buttons.

  • Page 19: System Information And Maintenance

    32 and 42-inch LCD Unit User Manual Overscan Left Edge Right Edge Overscan Top Edge Bottom Edge Back Figure 5. 8 Overscan 5.2.3 System Information and Maintenance  Maintenance Steps: To update the software, insert the USB driver to the interface on the rear panel of the device. Press Maintenance button to enter the Maintenance interface Select the Update (USB) to update it.
  • Page 20 32 and 42-inch LCD Unit User Manual Update (USB) Select User Restore Select Maintenance Temp Monitor Information Figure 5. 9 System Maintenance For further information about downloading upgrade program and USB driver usage, please contact your dealer or the nearest service center. Press MENU button to return to the main menu after finishing the adjustment.

  • Page 21: Settings

    32 and 42-inch LCD Unit User Manual Overheat Alarm Alarm Temp (° C) Maintenance Fan Mode Temp Monitor Exception Alarm Information Auto Temp (° C) Back Figure 5. 10 Temperature Monitor  System Information Press System Information to check the current software version information, working hours, current board temperature, and Device ID.
  • Page 22 32 and 42-inch LCD Unit User Manual Purpose: You can set the OSD’s language, blending and duration on the menu. Steps: 1. Press OSD Setting button to enter the OSD Setting interface. 2. Select OSD Language and press OK button to enter the 【OSD Language ◄English►】 interface, press ◄...
  • Page 23 32 and 42-inch LCD Unit User Manual Screen Saver Blue OSD Setting Screen Saver Backlight Picture Freeze Back Figure 5. 13 Screen Saver  Backlight Settings Purpose You can set backlight, low energy, and energy diagram. Steps: Press◄ or ► to set the backlight, and adjust the value ranging from 0 to 100. Press◄...
  • Page 24 32 and 42-inch LCD Unit User Manual Backlight Low Energy Energy Diagram OSD Setting Screen Saver Backlight Picture Freeze Back Figure 5. 15 Backlight Settings  Picture Freeze ： Purpose Picture Freeze is to freeze the current picture on the LCD unit. Steps: Select Picture Freeze and press OK button to enter the Picture Freeze interface on the right.
  • Page 25 32 and 42-inch LCD Unit User Manual Picture Freeze OSD Setting Screen Saver Backlight Picture Freeze Back Figure 5. 16 Picture Freeze...

  • Page 26: Usb Menu

    32 and 42-inch LCD Unit User Manual 5.3 USB Menu Steps: 1. Press the SOURCE button on the remote control. 2. Select USB from Input Source menu to enter the menu shown as Figure 5.14 USB Menu. 3. Press◄ or ► to play photo, text, movie or music. 4.

  • Page 27: Appendix

    32 and 42-inch LCD Unit User Manual Chapter 6 Appendix: 6.1 Specifications Model DS-D5032FL DS-D5032FL/D DS-D5032FL/S Display Type TFT-LED Backlight Screen Size 32" Dot Pitch 0.807 × 0.807 mm (0.032" × 0.032") Max Resolution 1920 × 1080 Best Operation Resolution 1920 ×...
  • Page 28 32 and 42-inch LCD Unit User Manual Model DS-D5032FL DS-D5032FL/D DS-D5032FL/S ≤ 70 W Consumption Standby Power ≤ 1W Consumption Operation Temperature 0° C to 40° C (32° F to 104° F) Operation Humidity 10% to 85% Storage Temperature: -20° C to 55° C (-4° F to131° F)
  • Page 29 32 and 42-inch LCD Unit User Manual Model DS-D5042FL DS-D5042FL/D DS-D5042FL/S Display Type TFT-LCD Backlight Screen Size 42" Dot Pitch 0.807 × 0.807 mm (0.032" × 0.032") Max Resolution 1920 × 1080 Best Operation Resolution 1920 × 1080 @ 60Hz Brightness 400 cd/m²...
  • Page 30 32 and 42-inch LCD Unit User Manual Model DS-D5042FL DS-D5042FL/D DS-D5042FL/S Device Dimensions 962.2 × 570.5 × 71.55 mm (37.88 × 22.46 × 2.82") Package Dimensions 1105 × 757 × 205 mm (43.50 × 29.80 × 8.07") G.W. 28 Kg (61.73 lb) N.W.

  • Page 31: Structure Diagram

    32 and 42-inch LCD Unit User Manual 6.2 Structure Diagram Figure 6. 1 Structure Diagram...
  • Page 32 32 and 42-inch LCD Unit User Manual...
