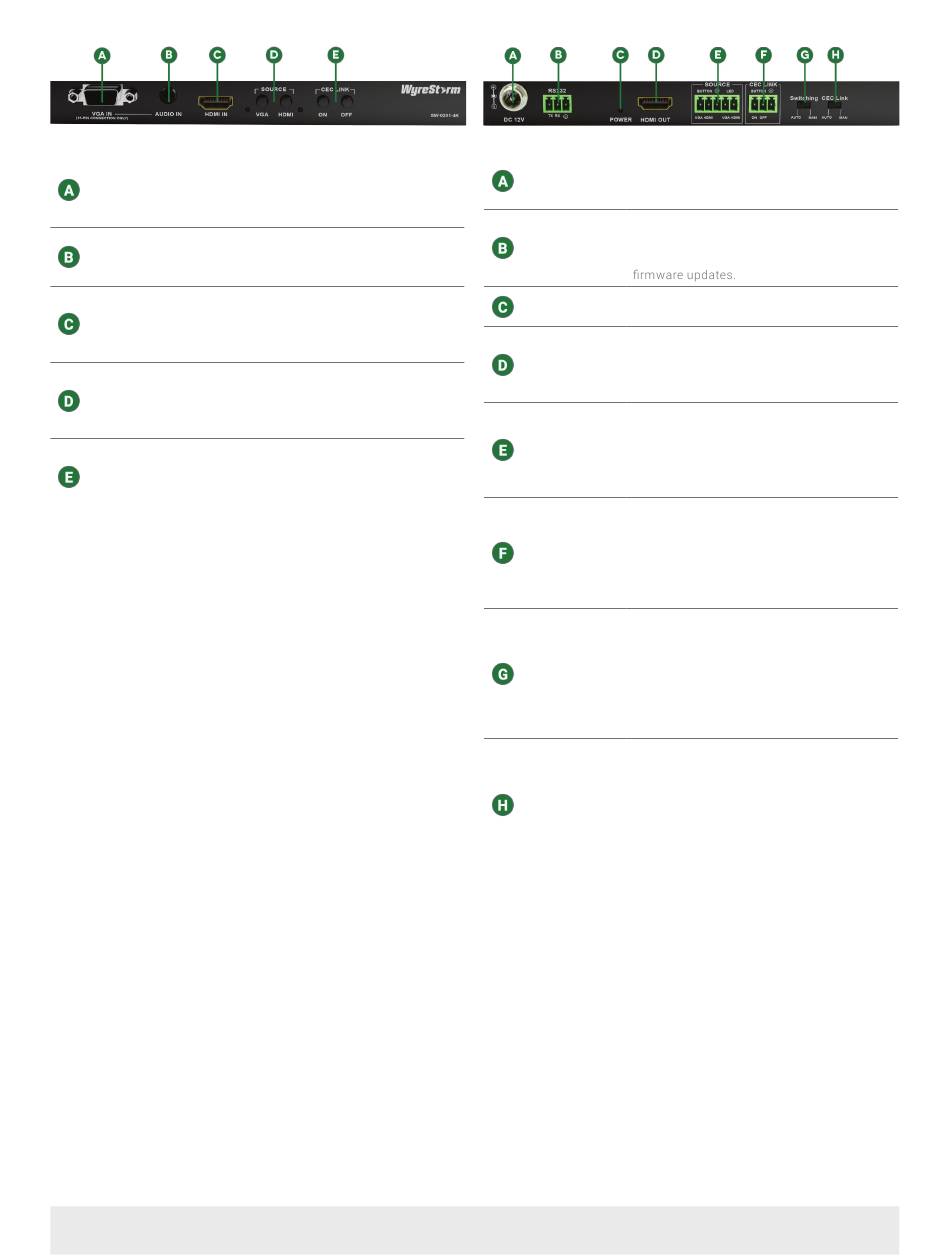

Front Panel

15-pin VGA VESA (D-SUB 15):
Connect to D-SUB 15 VGA output of a device
VGA In
such as a computer.
15-pin VGA cable is required.
3.5mm (1/8in) Stereo Jack
Audio In Connect to the analog audio output of a
device to send audio over HDBaseT.
19-pin type A HDMI female digital video/
audio: Supports HDMI and DVI/D (requires
HDMI In
adapter-not included). Limited to 297MHz
pixel clock
Press VGA to select the VGA source.
Press HDMI to select the HDMI source.
Source
LED next to source will illuminate when
selected.
On: Enables CEC to be used to control power
of a connected display device.
CEC Link
Off: Disables CEC from being used to control
power of a connected display device.
Copyright © 2015 WyreStorm Technologies |
SW-0201-4K Quickstart Guide | 151222
wyrestorm.com
2 of 4

Rear Panel

5.5mm Male Barrel Jack
Power In Connect to the included 12V DC 0.5A power
supply.
3-pin Screw Down Phoenix Connector
Used to send and receive RS-232 signals to/
RS-232
from the source location via HDBaseT and
Solid: The transmitter is powered On
Power LED
Off: The transmitter is powered Off
19-pin type A HDMI female digital video/
audio: Supports HDMI and DVI/D (requires
HDMI Out
adapter-not included). Limited to 297MHz
pixel clock
5-pin Screw Down Phoenix Connector
Connect to a remote I/O control device such
Source Contact
as a keypad or panel switch for selecting
Closure
inputs remotely. See
Wiring.
5-pin Screw Down Phoenix Connector
Connect to a remote I/O control device such
as a keypad or panel switch for turning a
CEC Link Relay
CEC-compatible display device On or Off
remotely.
See CEC Contact Closure Wiring.
Auto: Enables auto switching between inputs
based on source power state. HDMI has
priority over VGA.
Switching Man: Enables auto switching and enables
manual selection using front panel buttons
and source relay via remote keypad or panel
switch.
Auto:
of the connected display device.
Man:
CEC Link
of the connected display device using front
panel buttons and CEC relay via remote
keypad or panel switch.
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
See RS-232 Wiring.
Source Contact Closure
Enables automatic CEC power control
Enables manual CEC power control
