Right-Side Components - Getac UX10 User Manual

Ref Component

Battery pack

Select models have one of the below components.
a Bridge battery
and smart card
reader module
b Smart card
reader module
c Bridge battery
module

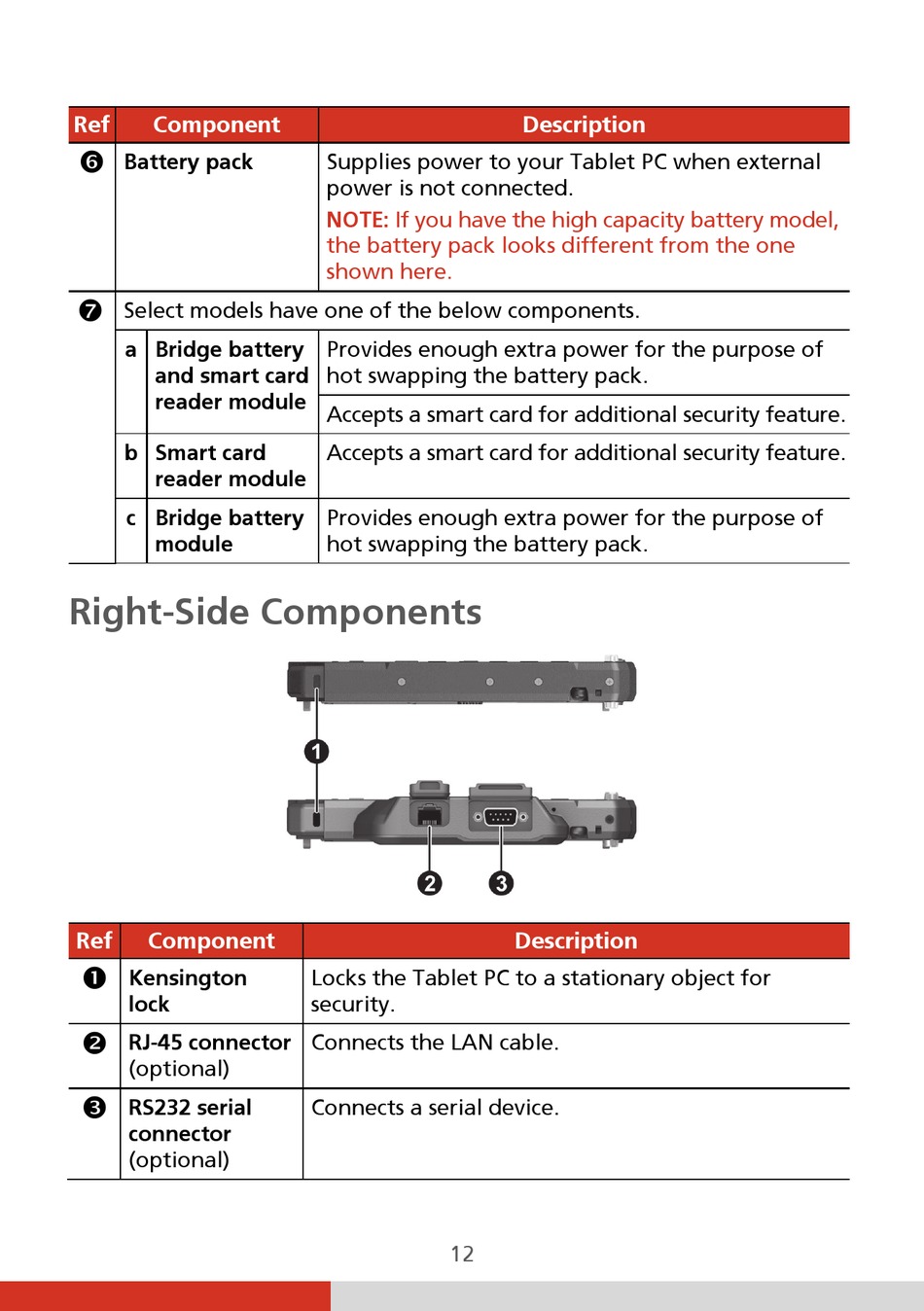

Right-Side Components

Ref Component

Kensington
lock

RJ-45 connector
(optional)

RS232 serial
connector
(optional)
Supplies power to your Tablet PC when external
power is not connected.
NOTE: If you have the high capacity battery model,
the battery pack looks different from the one
shown here.
Provides enough extra power for the purpose of
hot swapping the battery pack.
Accepts a smart card for additional security feature.
Accepts a smart card for additional security feature.
Provides enough extra power for the purpose of
hot swapping the battery pack.
Locks the Tablet PC to a stationary object for
security.
Connects the LAN cable.
Connects a serial device.
12
Description
Description
