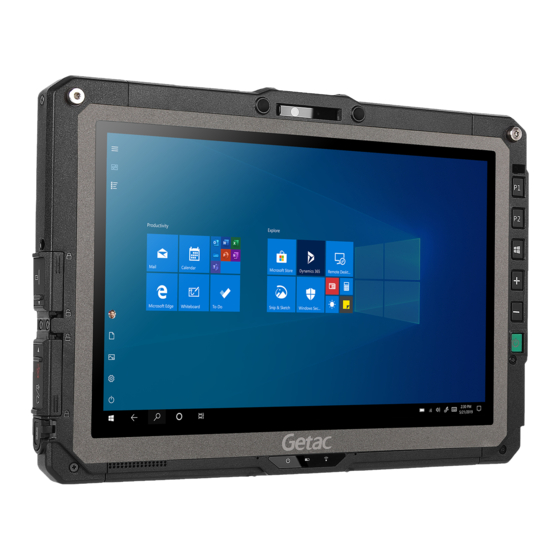

Getac UX10
Self-Maintenance Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UX10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Getac UX10

  • Page 1 Getac UX10 Self-Maintenance Manual...
  • Page 2: Table Of Contents

    IO Door (P/N 340141100022) DC Door (P/N 344141100011) SSD DOOR (P/N 340141100017) SSD (P/N 523445961008) KBD Right Cap (P/N 344141100030) KBD Left Cap (P/N 344141100031) Cap Screw(P/N 371103010070) | Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.
  • Page 3: Battery Pack (P/N 541314110007)

    Slide the security lock of the battery release latch to the unlocked position (1). Slide the battery release latch upwards (2). The battery pack will slightly pop up. Remove the battery pack from its compartment (3). | Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.
  • Page 4: Handle (P/N 340141100008)

    Handle (P/N 340141100008) Using TORX® T15 key wrench, remove the four screws (371102610027), then remove the two D-rings. | Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.
  • Page 5: Io Door (P/N 340141100022)

    IO Door (P/N 340141100022) Remove the two screws (370102100421) lock the USB door, then remove the USB door. | Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.
  • Page 6: Dc Door (P/N 344141100011)

    DC Door (P/N 344141100011) Remove the one screws (370102100421) lock the DC door, then remove the DC door. | Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.
  • Page 7: Ssd Door (P/N 340141100017)

    SSD DOOR (P/N 340141100017) Remove the eight screws (370102010421) lock the SSD door, then remove the SSD door | Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.
  • Page 8: Ssd (P/N 523445961008)

    SSD (P/N 523445961008) Remove the one screw (370102010421) lock the SSD module, remove the THERMAL-PAD. Pull out the SSD module from the connector. | Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.
  • Page 9 KBD Cap (P/N 344141100030---Right, P/N 344141100031---Left) Fasten the two screws (371103010070) to lock the KBD cap The screw torque force value: 7 ~ 7.5kg/f.cm | Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.
  • Page 10 THANK YOU FOR YOUR ATTENTION THANK YOU FOR YOUR ATTENTION Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.
