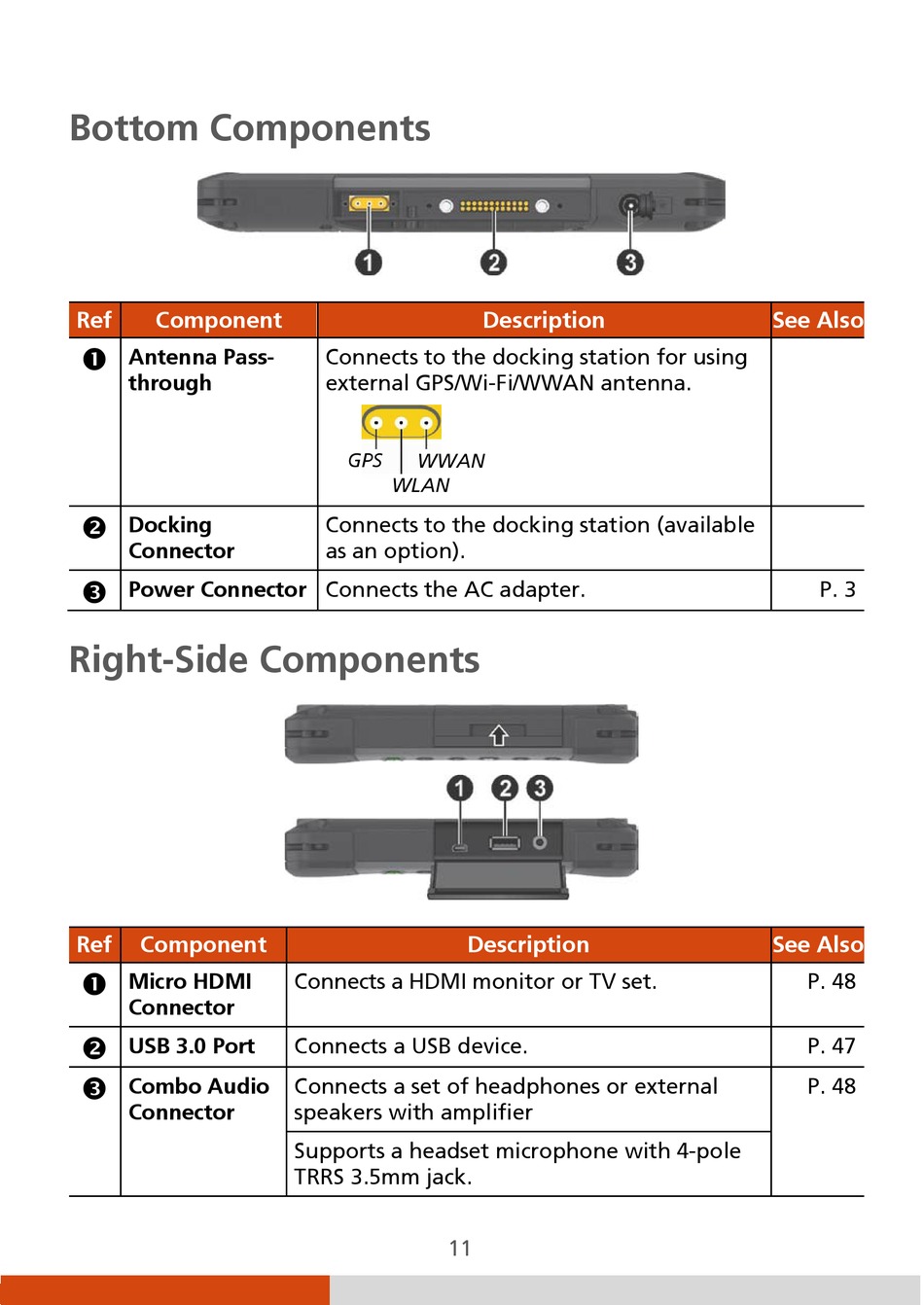

Bottom Components
Ref
Component
Antenna Pass-
through
Docking
Connector
Power Connector Connects the AC adapter.
Right-Side Components
Ref
Component
Micro HDMI
Connector
USB 3.0 Port
Combo Audio
Connector
Connects to the docking station for using
external GPS/Wi-Fi/WWAN antenna.
GPS
WWAN
WLAN
Connects to the docking station (available
as an option).
Description
Connects a HDMI monitor or TV set.
Connects a USB device.
Connects a set of headphones or external
speakers with amplifier
Supports a headset microphone with 4-pole
TRRS 3.5mm jack.
11
Description
See Also
P. 3
See Also
P. 48
P. 47
P. 48
