DAK SF 26CT • Setup Guide (Continued)

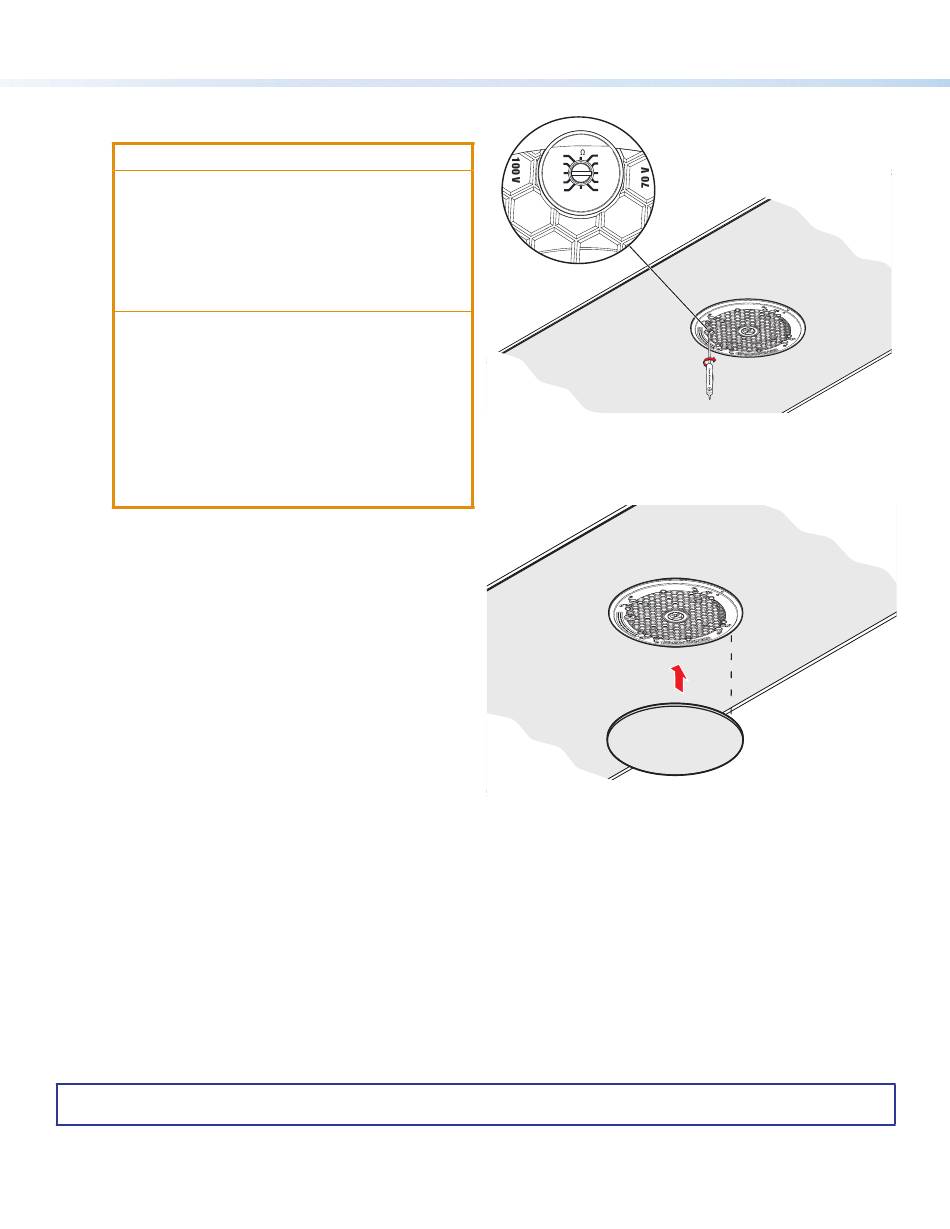

Set the rotary tap selector switch to the appropriate
2.
setting using a small screwdriver (see figure 3).
ATTENTION:
When setting the taps for a distributed (high
•
impedance) system, do not tap the system
above the rated power of the amplifier.
Lors de la mise en place des capteurs pour
•
un système distribué (haute impédance),
n'exploitez pas le système au delà du
niveau d'alimentation de l'amplificateur.
When connecting multiple speakers in
•
8-ohm mode, be sure that the combined
rated impedance does not equal a value
less than the minimum rated impedance of
the amplifier.
Lors de la connexion de plusieurs enceintes
•
en mode 8 ohm, assurez vous que le
niveau d'impédance combinée ne soit
pas équivalent à une valeur inférieure à
l'impédance minimum de l'amplificateur.
Install the grille. Position the grille so that it covers the
3.
baffle of the speaker (see figure 4). Six small magnets
secure the grille in place.
Repeat all the steps above, for all speakers.
4.
The completed speaker installation is now ready for use.
Test and adjust each speaker assembly as needed.
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Extron Safety and Regulatory Compliance Guide
Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876
2
on the Extron website.
© 2019 Extron Electronics — All rights reserved.
All trademarks mentioned are the property of their respective owners.
8
16W OFF
64W
32W
32W
64W
16W
OFF 8W
8Ω
Adjust the Tap Selector

Set the Rotary Tap Selector Switch

Figure 3.
Speaker Grille

Install the Grille

Figure 4.
