INT-HDX100-RXWP Quick Guide
2
1
4
1. DIAGNOSTIC LED'S
POWER (RED) - Solid when device is powered ON
LINK (GREEN) - Solid when successful link between transmitter and
receiver is established; off or blinking indicates a physical link error
HDCP (GREEN) - Solid when HDMI signal is encrypted; blinking when
non -HDCP protected content is transmitted; OFF when no content is
being transmitted
2. IR IN -3.5mm connection for IR receiver
3. IR OUT -3.5mm connection for IR emitter
4. HDMI OUT - HDMI output port for connection to HDMI display
5. ETHERNET - RJ45 port for passing Ethernet to receiver / display location from transmitter /
source location
6. RS232 - 3 pin terminal block for RS232 pass through control of connected display or 3rd party
device
7. DC24V - DC connector for power supply
8. HDBT IN / POH IN - HDBaseT input; RJ45 connection. Supports 48V PoH
4

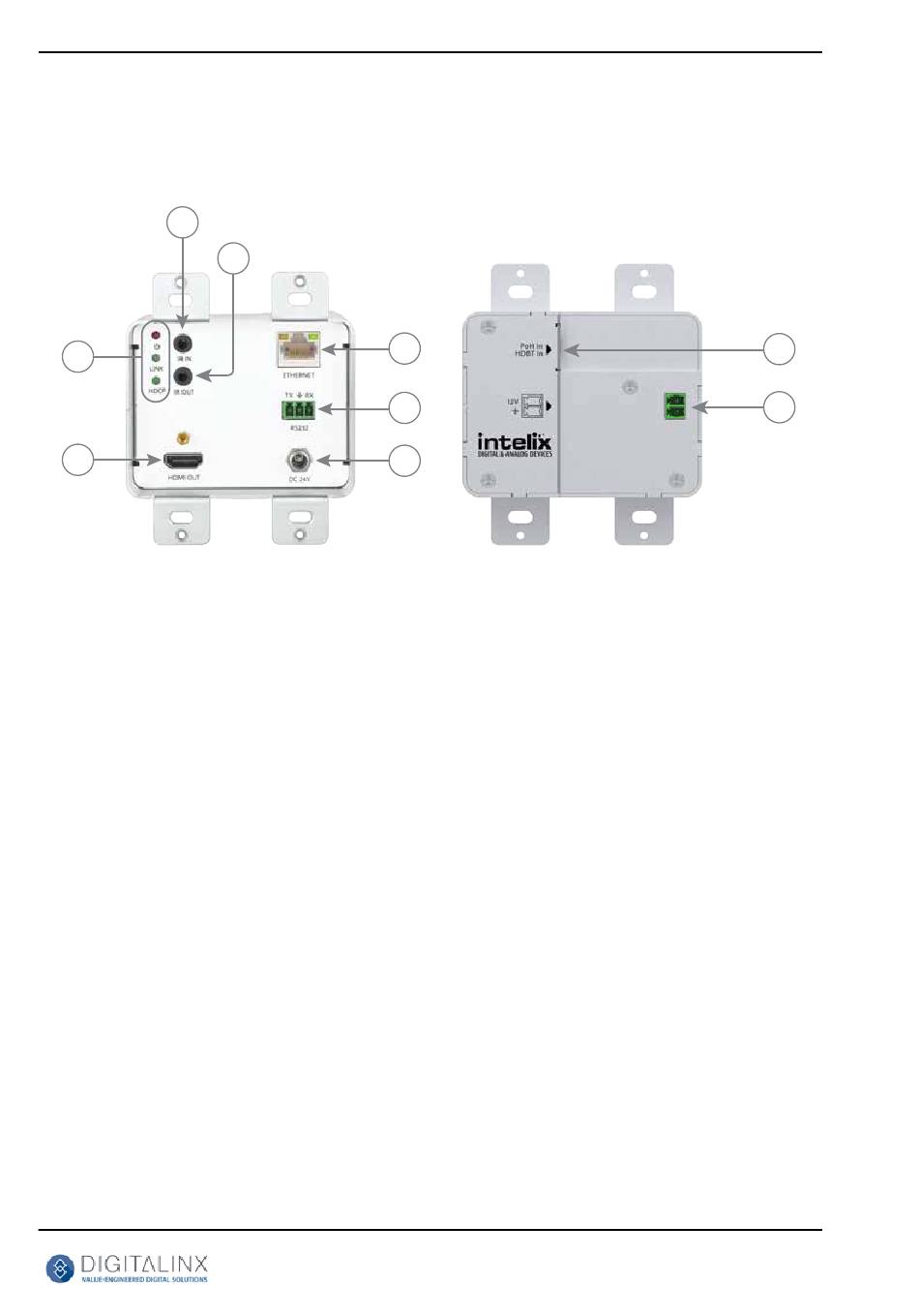

Receiver View

3
FRONT
5
6
7
BACK
8
9
