Intelix DIGI-HD-IR2
Installation Manual
Introduction

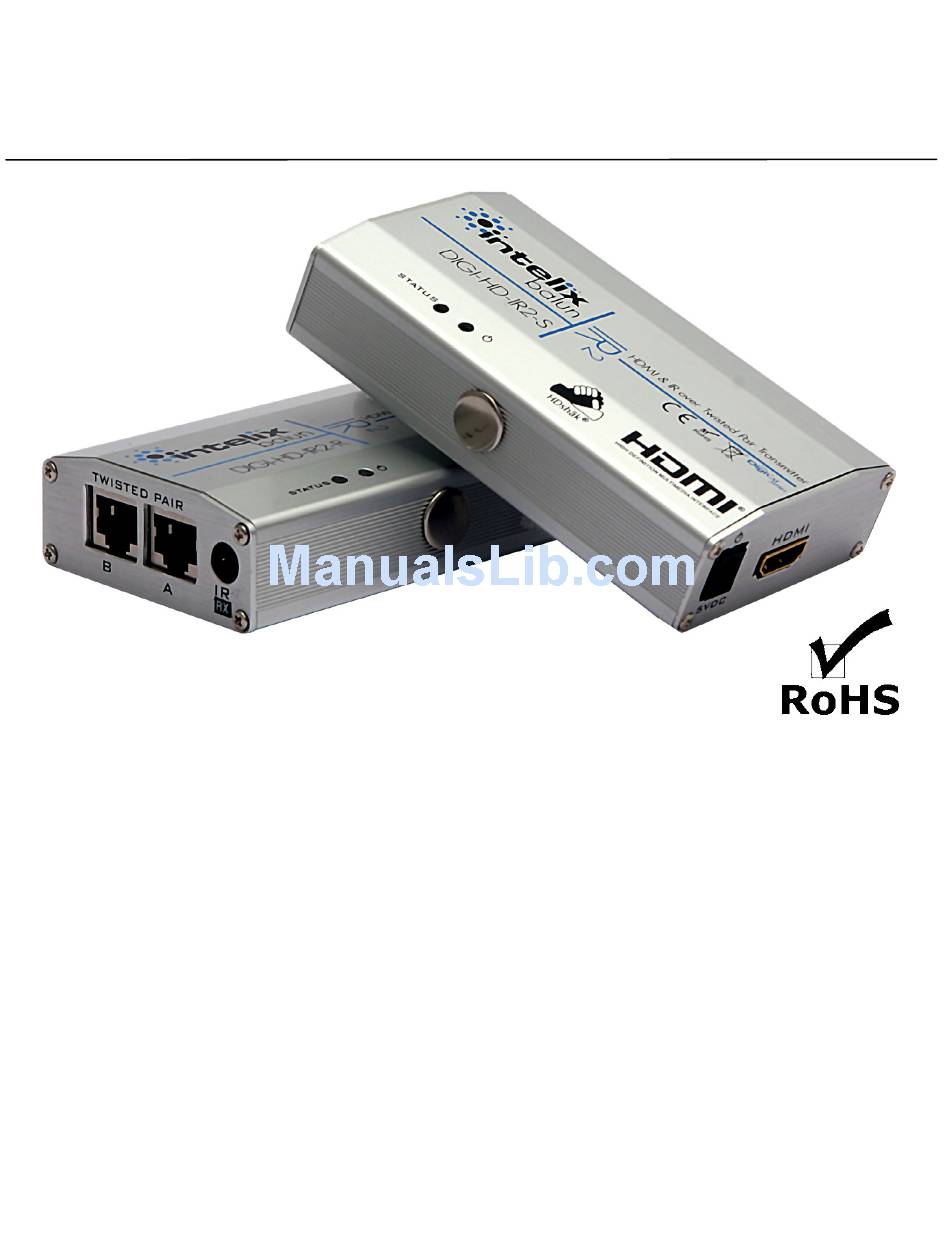

The Intelix DIGI-HD-IR2 transmits HDMI and IR up to 300' over two twisted pair
cables, such as Cat 5e or Cat 6. In environments with high electromagnetic
interference (EMI), two shielded twisted pair cables should be used.
Built-in HDshāk® technology provides dynamic HDMI, EDID/DDC and HDCP
mode selection, gauranteeing performance and image quality.
The DIGI-HD-IR2 features electrostatic discharge (ESD) protection circuitry which
safegaurds the HDMI circuit against static electricity and other destructive stray
voltage.
Design with Intelix and Design with Intelligence.
Advertisement
Related Manuals for Intelix DIGI-HD-IR2
Summary of Contents for Intelix DIGI-HD-IR2
- Page 1 Installation Manual Introduction The Intelix DIGI-HD-IR2 transmits HDMI and IR up to 300’ over two twisted pair cables, such as Cat 5e or Cat 6. In environments with high electromagnetic interference (EMI), two shielded twisted pair cables should be used.
-
Page 2: Installation
4. Verify that the source and destination equipment work when directly connected with HDMI cables. Be sure to test both HDMI cables required for system installation. 5. Connect the DIGI-HD-IR2 send balun to the HDMI output of the video source. Do not connect the 5V power supply. - Page 3 11. Connect the 5V power supply to the DIGI-HD-IR2 receive balun Power-on the video equipment. Verify picture quality. If necessary, adjust the dip switches on the send and receive baluns to select modes of operation. Note: Dip switches are located under the cap on the side of the unit.
- Page 4 DIGI-HD-IR2-S Transmitter Dip Switch Positions Position 1 Position 2 Mode Read and store EDID data from displays Turn on Dolby TrueHD and DTS-HD Turn on stereo audio No function DIGI-HD-IR2-R Receiver Switch Positions Position 1 Position 2 Mode Extended cable...
-
Page 5: Troubleshooting
Troubleshooting Symptom Probable Causes Possible Solutions No signal Incorrect cable Verify that both ends of the twisted pair termination cables use 568B crimp pattern. Status LED is off No signal Incorrect cable Swap the twisted pair cables in the AV and connection HDCP RJ45 inputs on the receive balun. -
Page 6: Technical Specifications
IR emitter, one IR receiver, and two power supplies The Intelix DIGI-HD-IR2 conforms to HDMI and HDCP specifications. Intelix does not guarantee operation with devices that do not conform to these specifications. The Intelix DIGI-HD-IR2 passes HDCP signals and does not manipulate them in any way. - Page 7 Thank you for your purchase. www.intelix.com | intelix@intelix.com | 608-831-0880 phone | 608-831-1833 fax...
