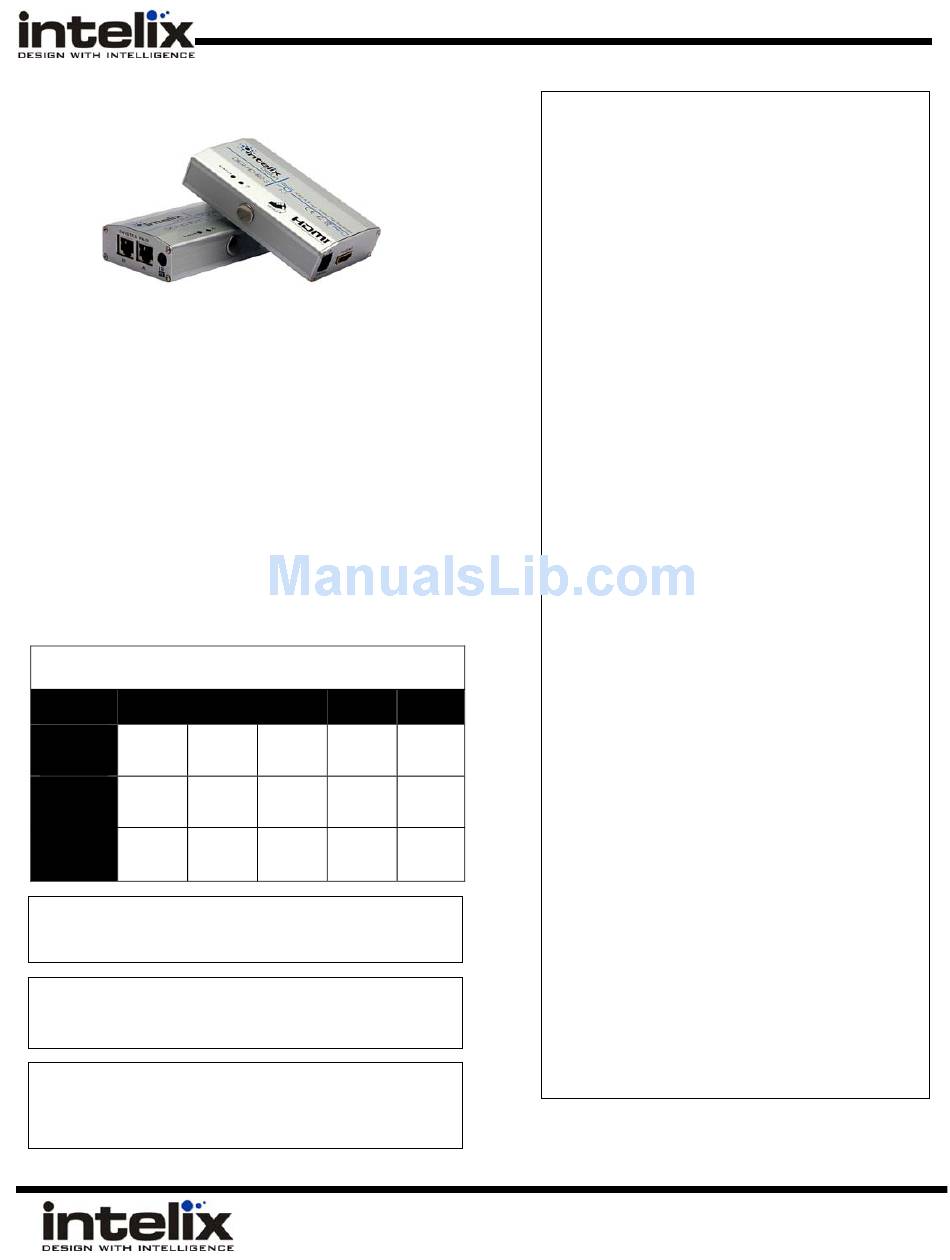

Intelix DIGI‐HD‐IR2 Installation Manual

DIGI‐HD‐IR2 Installation Manual

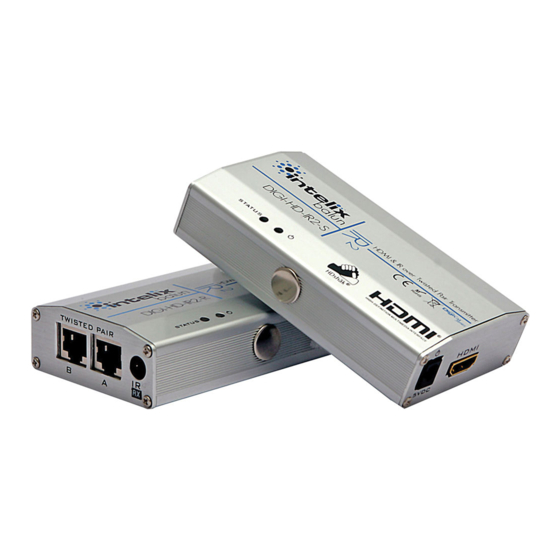

The Intelix DIGI‐HD‐IR2 transmits HDMI and IR up to 300'
over two twisted pair cables, such as Cat 5e or Cat 6. In
environments with high electromagnetic interference
(EMI), two shielded twisted pair cables should be used.
Built‐in HDshāk® technology provides dynamic HDMI,
EDID/DDC and HDCP mode selection, guaranteeing
performance and image quality.
The DIGI‐HD‐IR2 features electrostatic discharge (ESD)
protection circuitry which safegaurds the HDMI circuit
against static electricity and other destructive stray
voltage.
Design with Intelix and Design with Intelligence.
Maximum Recommended Distances
1080p 1080i
Cat 6 150'
(low‐skew)
Cat 6 110'
Cat 5e 100'
Caution: Do not attempt to disassemble or alter the extender
housing. There are no user-serviceable parts inside the unit.
Doing so will void your warranty.
Caution: To minimize the possibility of equipment damage
from electrostatic discharge (ESD), all source and destination
equipment must be powered off during installation.
Caution:
Do not connect
telecommunication outlet wired to unrelated equipment.
Doing so may damage the unit or any connected equipment.
Ensure all connected twisted pair cabling is straight-through
720p 576i/p
300' 300' 300'
220' 220' 220'
200' 200' 200'
the extender
1. Turn off power and disconnect the
2. Make certain that outlets and cross connects
3. Verify the desired twisted pairs are not being
4. Verify that the source and destination
5. Connect the IR emitter to the DIGI‐HD‐IR2
6. Connect the DIGI‐HD‐IR2 transmitter to the
7. Connect the IR receiver to the DIGI‐HD‐IR2
8. Connect the DIGI‐HD‐IR2 receiver to the
480i/p
350' 9. Complete the connection between the
220'
200'
10. Connect the 5V power supply to the DIGI‐HD‐
11. Connect the 5V power supply to the DIGI‐HD‐
12. Verify picture quality.
13. If necessary, adjust the DIP switches on the
to a
