INT-HDX100-RXWP Quick Install Guide
This guide is for quick installation only.
For complete owners manual go to www.libav.com or use a QR reader to access the
manual via QR code below.
Scan QR Code with your Smart-phone or Tablet
Rev 190306
11675 Ridgeline Drive
Phone: 719-260-0061
Colorado Springs, CO
Toll-Free: 800-530-8998
80921
Fax: 719-260-0075
Advertisement
Related Manuals for Intelix INT-HDX100-RXWP
Summary of Contents for Intelix INT-HDX100-RXWP

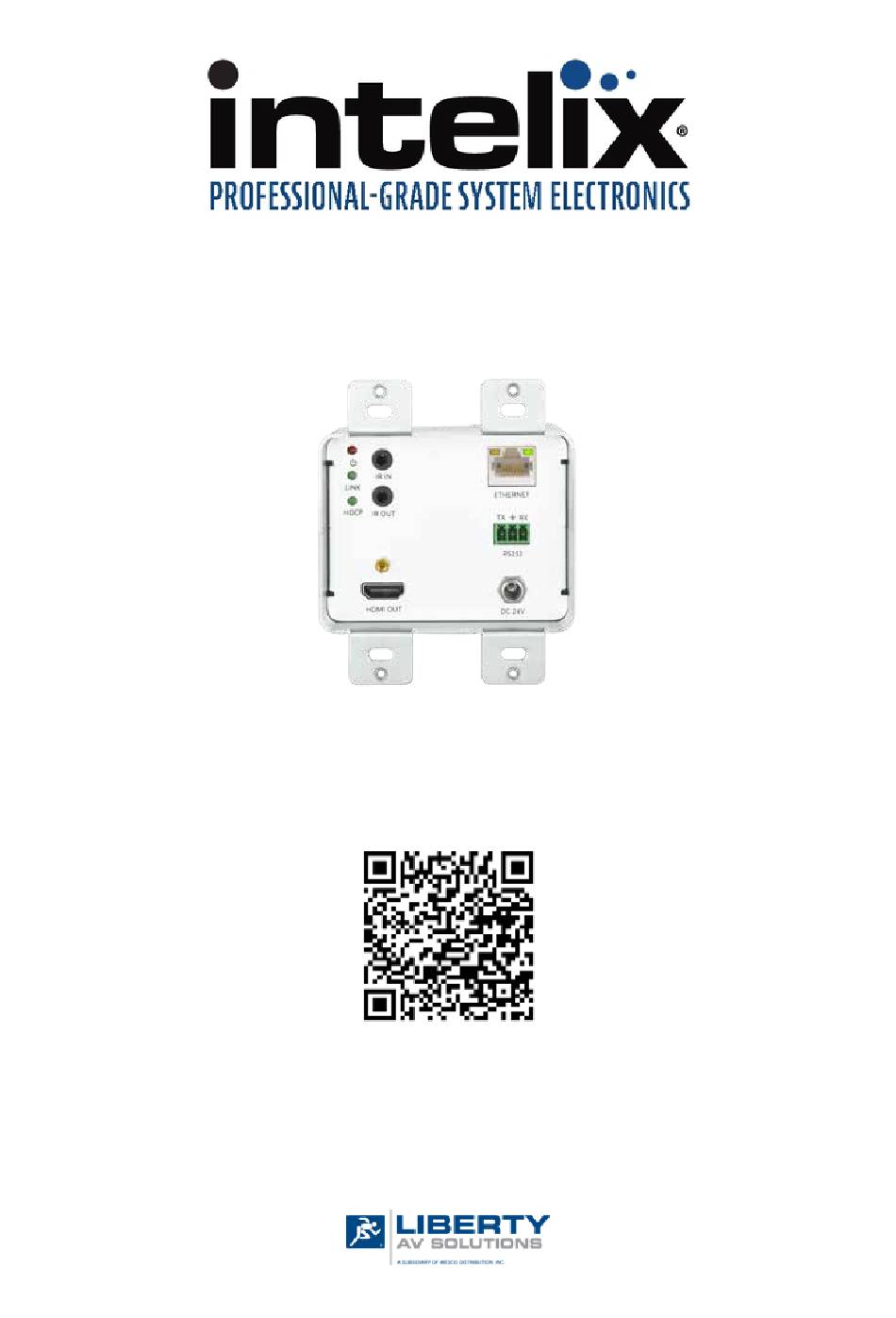

- Page 1 INT-HDX100-RXWP Quick Install Guide This guide is for quick installation only. For complete owners manual go to www.libav.com or use a QR reader to access the manual via QR code below. Scan QR Code with your Smart-phone or Tablet Rev 190306...
-
Page 3: Product Overview
Category cable. The INT-HDX100-RXWP supports 1080p video signal up to 100m and 4K signals up to 4K@60Hz / 4:2:0 / 8 bit color up to 70m. The INT-HDX100-RXWP supports CEC pass through and is HDCP 2.2 compliant. 48V PoH built in allows the receiver to be powered from a compatible Intelix transmitter. -
Page 4: Receiver View

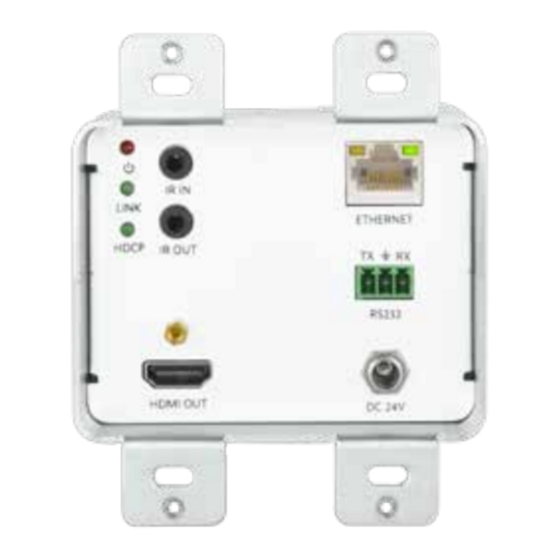

INT-HDX100-RXWP Quick Guide Receiver View FRONT BACK 1. DIAGNOSTIC LED’S POWER (RED) - Solid when device is powered ON LINK (GREEN) - Solid when successful link between transmitter and receiver is established; off or blinking indicates a physical link error HDCP (GREEN) - Solid when HDMI signal is encrypted;... - Page 5 5. Connect an HDMI cable and any desired IR, Ethernet and RS232 connections between the source and a compatible Intelix HDBaseT transmitter. 6. Connect a power supply to the compatible Intelix HDBaseT transmitter. and lock the power supply to the power connector by twisting the locking collar clockwise.
- Page 6 Cabling Wiring Requirements HDBaseT Cabling To ensure proper performance of the INT-HDX100-RXWP, it is recommended that you use solid core, shielded Category 6 F/UTP cabling at a minimum. Category 5e F/UTP may perform well but may not support power over HDBaseT reliably over longer distances.
-
Page 7: Technical Specifications
INT-HDX100-RXWP Quick Guide Technical Specifications Supported Audio and Video Video Compliance HDMI 2.0+, HDCP2.2, and CEC (Consumer Electronics Control) Input / Output Resolution Support Up to 4096x2160@60Hz (4:2:0 chroma sub-sampling / 8 bit deep color) Embedded Audio Up to PCM 8 channel, Dolby Digital, DTS, TrueHD, DTS-HD Master Audio and... - Page 8 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com Intelix is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
