Intelix AvoCat AVO-V3HD-F Installation Manual

Specifications
Specifications subject to change without notice.
Maximum Distance* 480i/p: 1000 feet
720p: 500 feet
1080i/p: 500 feet
Maximum Input 1.1 Vp-p
Bandwidth 60 MHz, 3 dB roll off
Impedance 75 ohms at 1 MHz
Insertion Loss .1 dB for 0.1 MHz. Gradually increasing to 2.5 dB over the
frequency range.
Return Loss Greater than 15 dB over the frequency range
Common Mode Rejection -55 dB at 0.1 MHz. Gradually increasing to -20 dB at 60 MHz.
Unshielded Twisted Pair Maximum capacitance: 20 pf/foot
Cabling Specifications Impedance: 100 ohms @ 1 MHz
(24 gauge or lower solid Attenuation: 6.6 dB/1000 ft. @ 1 MHz
copper) Cat 5, Cat 5e, Cat 6, Cat 7 compatible
Connectors Three (3) female BNCs to one (1) RJ45
RJ45 Pinout Red (Pr): 7 & 8, pair 4
Green (Y): 3 & 6, pair 3
Blue (Pb): 1 & 2, pair 2
Temperature Operating: 32 to 131 F (0 to 55 C)
Storage: -4 to 185 F (-20 to 85 C)
Humidity: up to 95%
Enclosure Black plastic
Dimensions 4.3" x 2.5" x 1"
Weight 0.2 lbs (3.2 oz.)
Ordering Information AVO-V3HD-F: single AVO-V3HD-F balun in bulk packaging
AVO-V3HD-PAC-F: two AVO-V3HD-F baluns in retail-ready
packaging
Warranty 2 years
* Distances and picture quality may be affected by cable grade, cable quality, source and
destination equipment, RF and electrical interference, and cable patches. Intelix specifications are
based on straight-through cabling with standard-grade Cat 5.
Contact Information
Intelix
2222 Pleasant View Road
Middleton, WI 53562
Toll-free: 866-4-MATMIX
Phone: 608-831-0880
Fax: 608-831-1833
www.intelix.com
AvoCat
Intelix AVO-V3HD-F Video Balun
Installation Manual Installation Manual
Installation Manual Installation Manual Installation Manual
The AVO-V3HD-F balun allows the transmission
of component video (YPbPr) video via unshielded
twisted pair (UTP) cable, such as Cat 5 or Cat 6.
The AVO-V3HD-F is also supports one RGB or
three composite video signals.

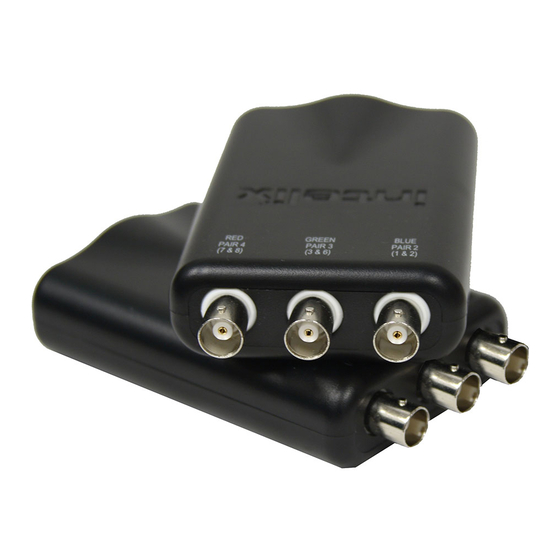

The AVO-V3HD-F balun is connected to the
structured cabling via a modular wall jack in the work
area. It is equipped with three BNC connectors at
one end and an RJ45 jack at the other end.
Installation
Caution: Do not attempt to open the balun housing. There are no user-serviceable parts
inside the AVO-V3HD-F. Opening the unit will void your warranty.
To install an AVO-V3HD-F balun, perform the following steps:
1. Turn off power and disconnect the video equipment by following the manufacturer's
instructions.
2. Make certain that outlets and cross connects to which you will connect the AVO-
V3HD-F are configured properly and labeled appropriately to identify the circuit.
Caution: Do not connect the AVO-V3HD-F to a telecommunication outlet
wired to unrelated equipment. Making such a connection may damage
the equipment and/or balun. Please ensure all wiring is "straight-
through."
3. Verify the desired twisted pairs are not being used for other LAN or telephony
equipment.
4. Connect the BNC inputs from the source equipment to one of the two baluns. Two
AVO-V3HD-Fs are needed—one at each end of the run—and are interchangeable.
Caution: Do not mount the balun over equipment ventilation openings. Covering the
openings may cause the equipment to overheat.
5. Connect a 4-pair Cat 5 cable from the RJ45 8-position modular jack of the AVO-
V3HD-F to a structured cable, such as Cat 5.
6. Connect the second balun's BNC inputs to the destination equipment.
7. Connect the 4-pair Cat 5 cable from the RJ45 8-position modular jack of another
AVO-V3HD-F to the structured cable attached to the first balun.
8. Power on the source and destination equipment and test for correct operation.
