Intelix DIGI-VGASD2-T8 Installation Manual

VGA, Audio, & RS232/IR over Twisted Pair Transmitter with Multiple Outputs

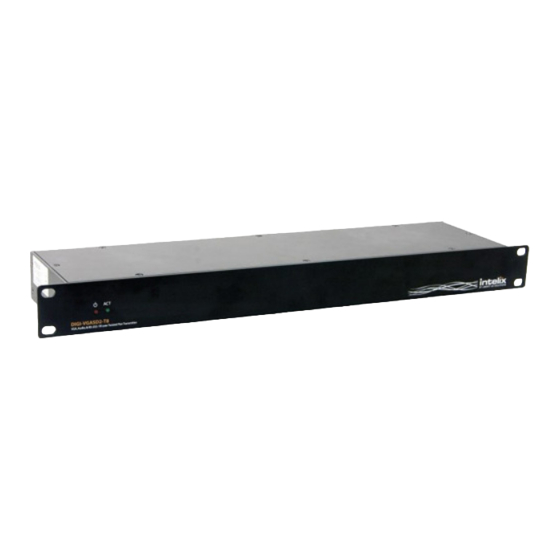

The Intelix DIGI-VGASD2-T8 transmits computer video, stereo audio, and control signals to eight remote destinations over a single twisted
pair cable, such as Cat 5e or Cat 6.
The DIGI-VGASD2-T8 features local computer video and stereo audio output.
The DIGI-VGASD2-T8 features built in EDID tables that emulate common resolutions (1024x768 and 1280x800). The DIGI-VGASD2-T8
features an EDID copy function that will copy all EDID information from the destination device. The DIGI-VGASD2-T8 will retain the copied
EDID information if power is disconnected.
The DIGI-VGASD2-T8 features up to 1920x1200 computer video performance and high-fidelity 20Hz to 20kHz audio performance extension
up to 350 feet. The DIGI-VGASD2-T8 features bi-directional IR and RS232 on Output 1, and uni-directional (transmitter to receiver) IR and
RS232 on all other outputs.
1 2
4
3
5
5

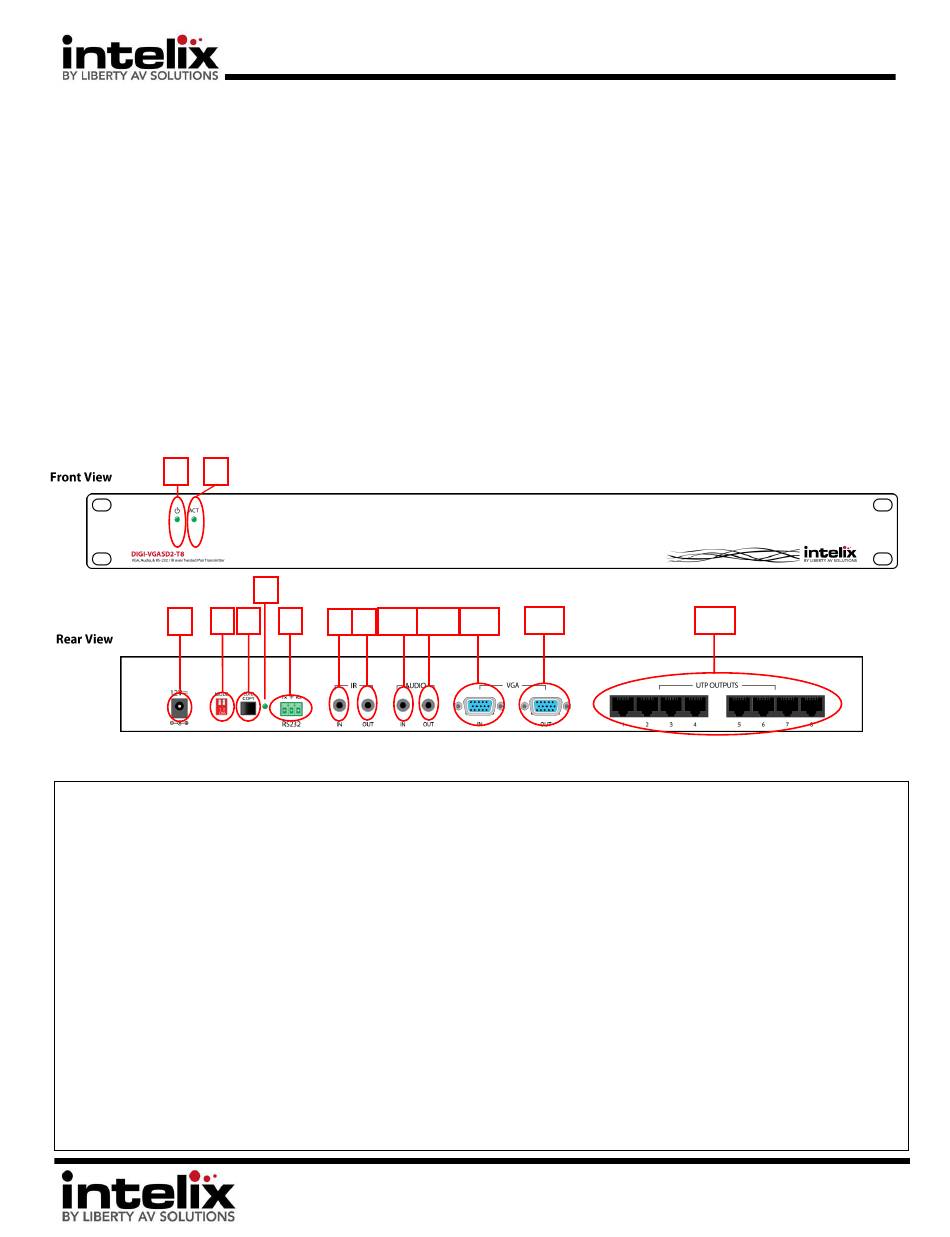

Connector Descriptions:
1. Power LED – Lit when unit is ON.
2. ACT LED – Will flash when IR or RS232 data is passing through the system
3. Power inlet – Connect the (included) 12vDC, 2A power supply.
4. EDID Mode – Use a small screwdriver to adjust the DIP switches to the desired EDID mode
5. EDID Copy Button – This activates the EDID copy operation when EDID Mode is set to "COPY"
6. EDID Status – This LED will flash when EDID is being copied successfully.
7. RS232 Pass-through – This connection allows RS232 commands to be passed through the extender connected to [Output 1]. Connect
a control system to either end, and control the remote source or display.
8. IR IN – Connect a VGASD2-EYE (not included) to this port. The IR eye will send IR information to the DIGI-VGASD2-R for the purpose
of controlling the display with the OEM remote.
9. IR OUT – Connect a VGASD2-EMT (not included) to this port. IR information sent from the DIGI-VGASD2-R connected to [Output 1]
will be emitted for the purpose of controlling the source with the OEM remote (place the emitter over the source's IR window).
10. Stereo Audio Input – Connect a line level source. Audio will be present at the DIGI-VGASD2-R audio outs. Video signal is not
required for audio to pass.
11. Stereo Audio Output – Connect to desktop speakers. This is a "Loop Output" which receives signal from the transmitter's audio
input.
12. VGA Input – Connect to laptop or other VGA source.
13. VGA Output – Connect to your PC Monitor This is a "Loop Output" which receives signal from the transmitter's VGA input.
14. Twisted Pair Outputs – Connect these to (8) DIGI-VGASD2-R using Cat5e (or equivalent) cable.
