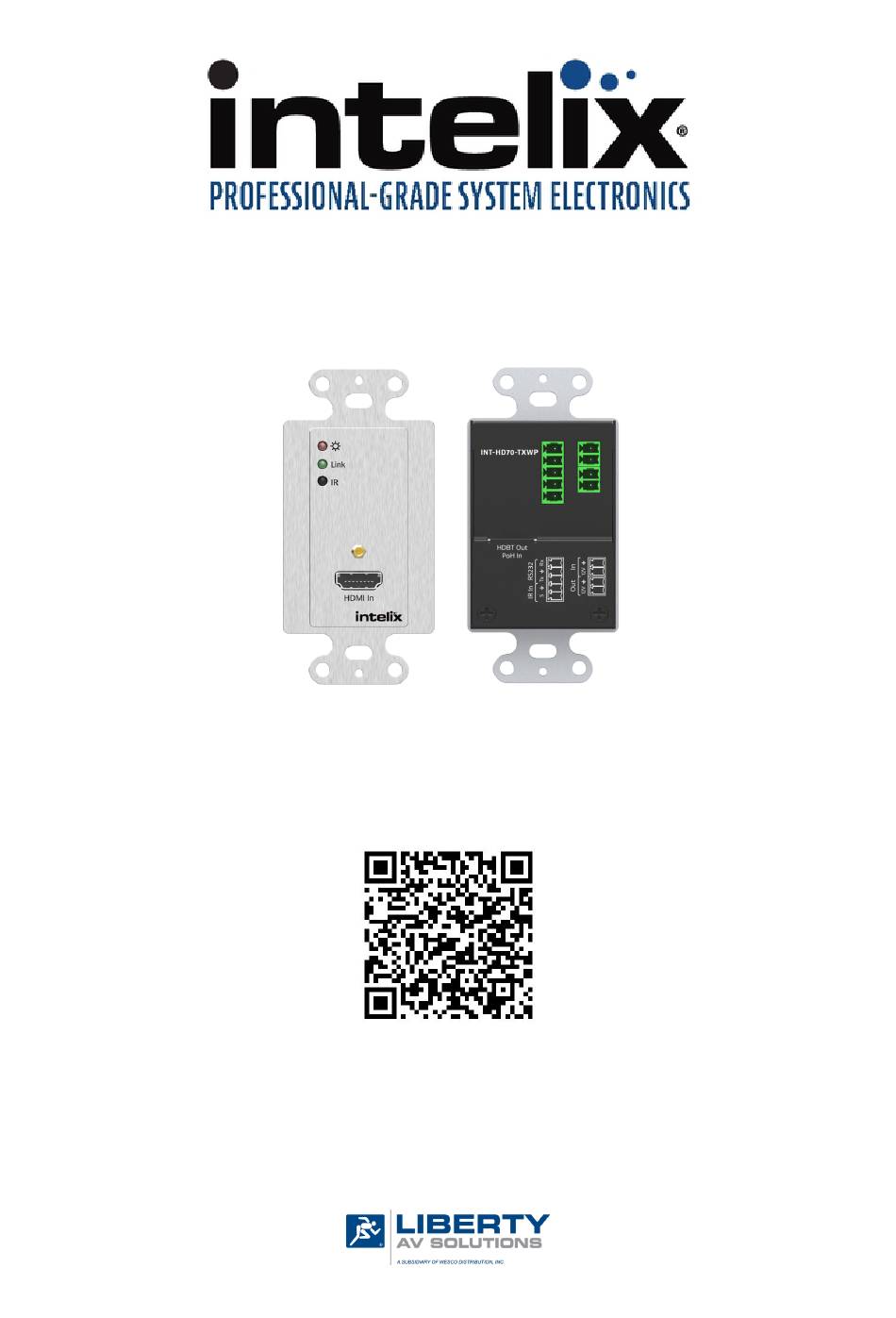

INT-HD70-TXWP Quick Install Guide
This guide is for quick installation only.
For complete owners manual go to www.libav.com or use a QR reader to access the
manual via QR code below.
Scan QR Code with your Smart-phone or Tablet
Rev 181130
11675 Ridgeline Drive
Phone: 719-260-0061
Colorado Springs, CO
Toll-Free: 800-530-8998
80921
Fax: 719-260-0075
Advertisement
Related Manuals for Intelix NT-HD70-TXWP
Summary of Contents for Intelix NT-HD70-TXWP
- Page 1 INT-HD70-TXWP Quick Install Guide This guide is for quick installation only. For complete owners manual go to www.libav.com or use a QR reader to access the manual via QR code below. Scan QR Code with your Smart-phone or Tablet Rev 181130 11675 Ridgeline Drive Phone: 719-260-0061 Colorado Springs, CO...
-
Page 3: Product Overview
INT-HD70-TXWP Quick Guide Product Overview The Intelix INT-HD70-TXWP extends HDMI, IR, and RS232 over a single solid core shielded Category 5e or greater cable using the Valens VS010TX HDBaseT chip. The INT-HD70-TXWP supports 1080p video signal up to 70m and 4K signals up to 4K@60Hz / 4:2:0 / 8 bit color up to 40m. The INT-HD70-TXWP supports CEC pass through and is HDCP 2.2 compliant. -
Page 4: Transmitter View
INT-HD70-TXWP Quick Guide Transmitter View FRONT BACK 1. POWER LED - Illuminates RED when power is applied 2. LINK LED - Illuminates GREEN when the transmitter is connected to receiver successfully 3. IR - Built in IR sensor / receiver for IR pass through control 4. - Page 5 5. Connect an HDMI cable and any desired IR or RS232 control accessories between the source and the INT-HD70-TXWP transmitter. 6. Connect a power supply to the compatible Intelix HDBaseT receiver. and lock the power supply to the power connector by twisting the locking collar clockwise.
- Page 6 INT-HD70-TXWP Quick Guide Cabling Wiring Requirements HDBaseT Cabling To ensure proper performance of the INT-HD70-TXWP, it is recommended that you use solid core, shielded Category 6 F/UTP cabling at a minimum. Category 5e F/UTP may perform well but may not support power over HDBaseT reliably over longer distances. When using shielded category cabling ALWAYS...
-
Page 7: Technical Specifications
INT-HD70-TXWP Quick Guide Technical Specifications Supported Audio and Video Video Compliance HDMI 2.0+, HDCP2.2, and CEC (Consumer Electronics Control) Input / Output Resolution Support Up to 4096x2160@60Hz (4:2:o chroma sub-sampling / 8 bit deep color) Embedded Audio Up to PCM 8 channel, Dolby Digital, DTS, TrueHD, DTS-HD Master Audio and Dolby Atmos IR Carrier Frequency Range 30-50kHz at 5 volts... - Page 8 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com Intelix is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
