Intelix DIGI-VGASD-R

Installation Manual

Introduction

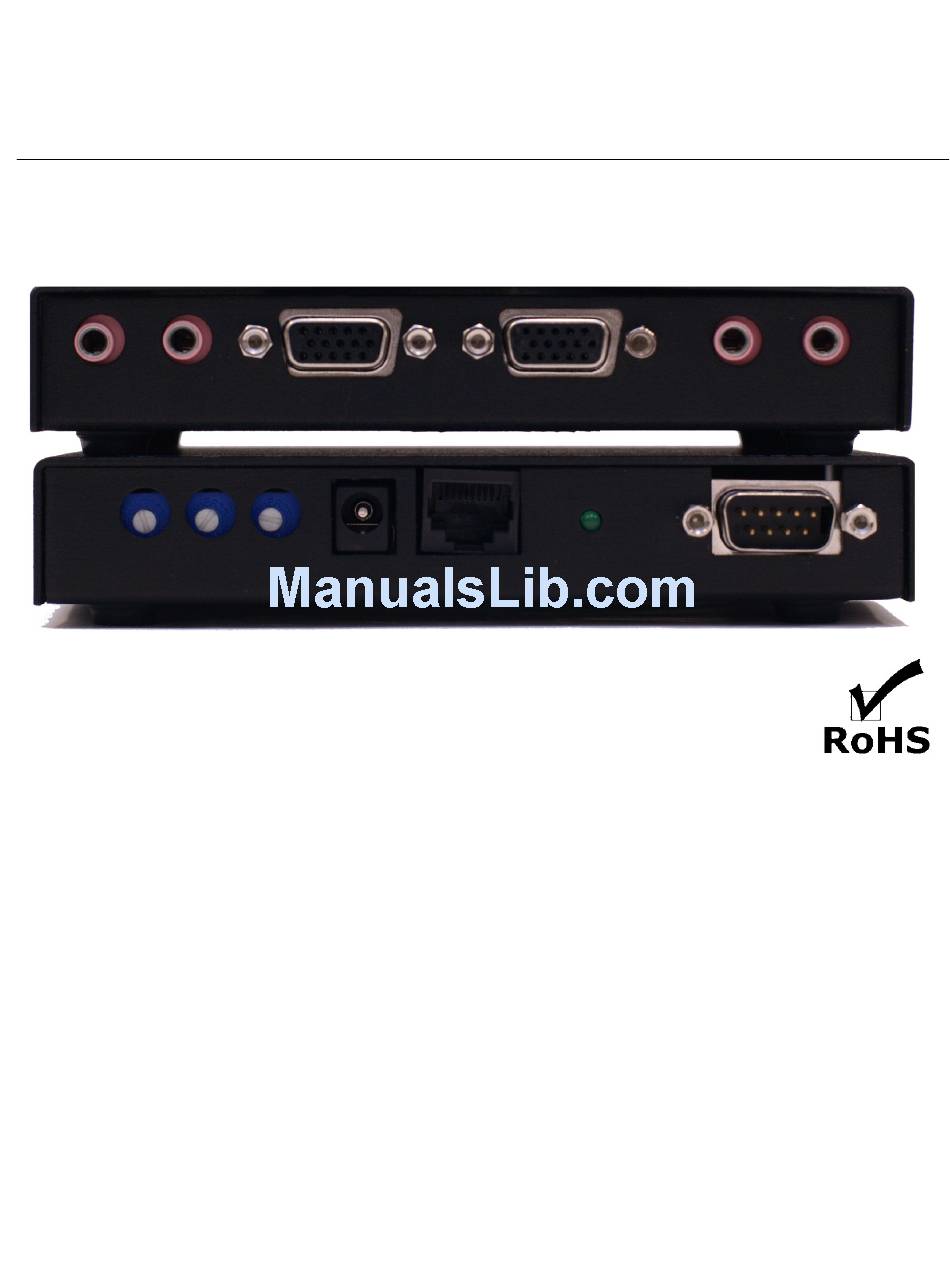

The Intelix DIGI-VGASD-R active receiver balun transmits VGA video,
stereo audio, and IR or RS232 up to 350 feet over a single twisted pair cable.
The unit features dual amplified outputs and adjustable video equalization.
When used with a compatible Intelix send balun, the DIGI-VGASD-R
provides 1600 x 1200 video performance and 20 Hz to 20 kHz, hi-fidelity
audio performance.
The unit requires power and includes a 5V power supply.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Intelix DIGI-VGASD-R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intelix Intelix DIGI-VGASD-R

Summary of Contents for Intelix Intelix DIGI-VGASD-R

  • Page 1: Installation Manual

    Intelix DIGI-VGASD-R Installation Manual Introduction The Intelix DIGI-VGASD-R active receiver balun transmits VGA video, stereo audio, and IR or RS232 up to 350 feet over a single twisted pair cable. The unit features dual amplified outputs and adjustable video equalization.

  • Page 2: Installation

    Installation To install the Intelix DIGI-VGASD-R balun, perform the following steps: 1. Identify the pin configuration of the baluns and RJ45 connectors on the twisted pair cabling. To eliminate crosstalk, the pin configuration must follow the EIA/TIA 568B standard. Please ensure that wiring is straight- through.
  • Page 3 7. Connect the 5V power supply to the DIGI-VGASD-R receive balun. 8. Power-on the connecting audio, video, and control equipment. 9. Verify picture quality. If necessary, adjust the signal using the blue, green, and red dials on the DIGI-VGASD-R receive balun. Warning! Do not use any IR receiver (eye) or IR emitter other than those sold exclusively for the DIGI-VGASD series of products to prevent damage to the balun.
  • Page 4 Example System...

  • Page 6: Troubleshooting

    Troubleshooting Symptom Causes Possible Solutions No signal No continuity in Verify cable continuity between pairs of video link baluns. Verify the max distance has not been exceeded. Verify the audio, video, and control cables between the equipment and hardware are connected and pass signal. No signal Power off Check power supplies of video...

  • Page 7: Technical Specifications

    Humidity: up to 95% Shipping Weight 3.0 lbs. Warranty 2 years Compliancy CE, RoHS Included Accessories One (1) 5VDC power supply Ordering Information DIGI-VGASD-R *Distances, picture and audio quality may be affected by cable grade, cable quality, source and destination equipment, RF and electrical interference, and cable patches.
  • Page 8 Intelix LLC 2222 Pleasant View Road Phone: 608-831-0880 Middleton, WI 53562 Toll-Free: 866-4-MATMIX www.intelix.com intelix@intelix.com...
