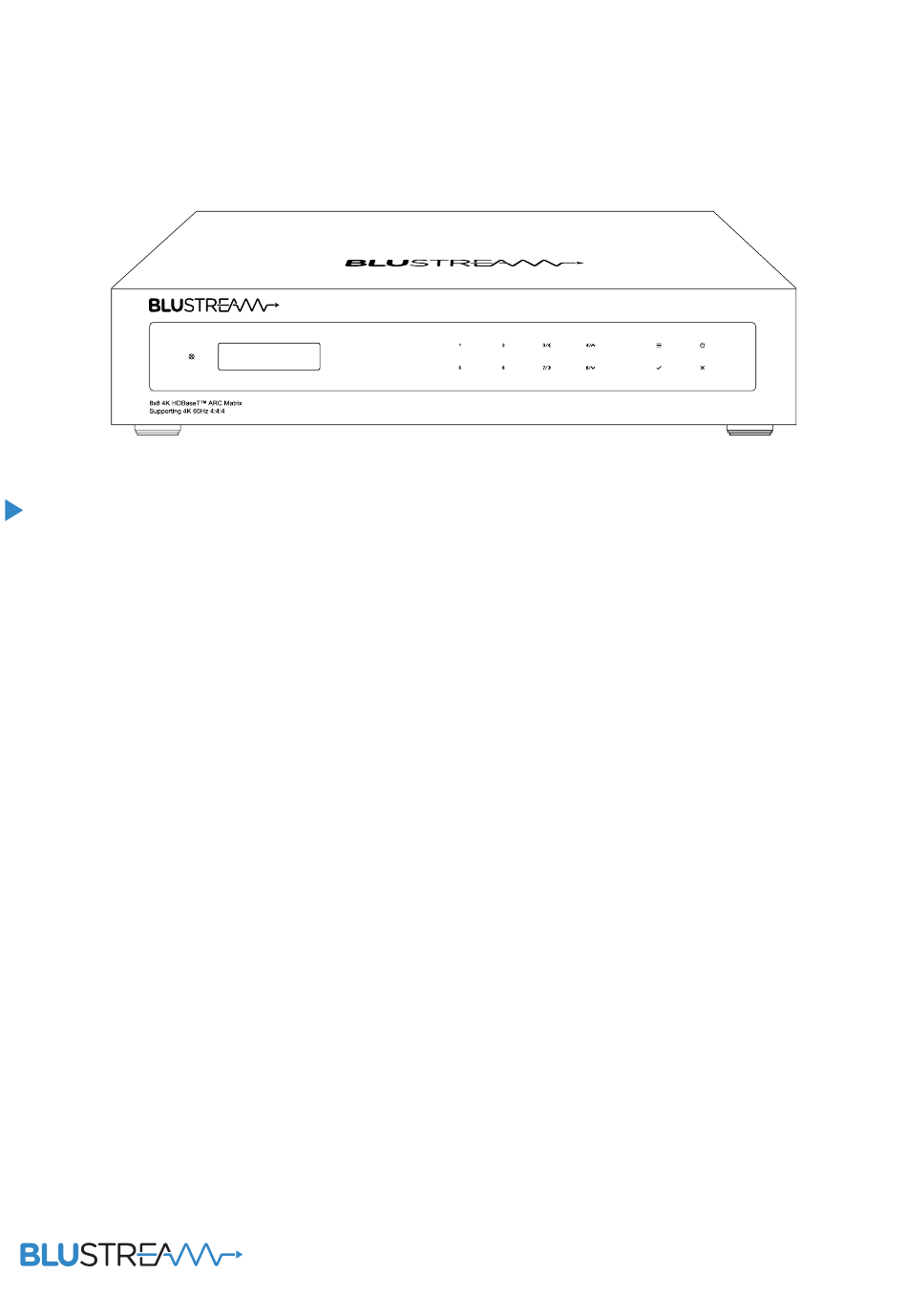

  • Page 1 HMXL88ARC User Manual RevA0_HMXL88ARC_User_Manual_210303...

  • Page 2: Table Of Contents

    HMXL88ARC USER MANUAL Contents Introduction Thank you for purchasing this product. Features For optimum performance and safety, please read these instructions care- Front Panel Description fully before connecting, operating or adjusting this product. Please keep this Rear Panel Description manual for future reference.

  • Page 3: Introduction

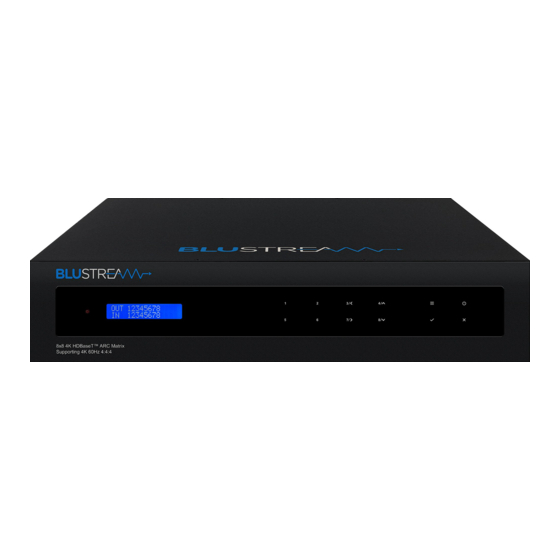

    Our Essential 8x8 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The HMXL88ARC is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix package utilising CSC technology to deliver HDMI, Bi-directional IR and PoC up to lengths of 70m over a single CAT cable.

  • Page 4: Front Panel Description

    IR Inputs - 3.5mm stereo connector to receiver for IR control of the Matrix HDMI Output - Connect to display connect to Blustream 5V IR receiver or TCP/IP - RJ45 connector for TCP/IP and device Control Processor. Used to extend IR Web GUI control of the Matrix HDBaseT™...
  • Page 5 HMXL88ARC USER MANUAL EDID Control EDID (Extended Display Identification Data) is a data structure that is used between a display and a source. This data is used by the source to find out what audio and video resolutions are supported by the display. By pre-determining the video resolution and audio format of the source and display device you can reduce the time needed for EDID hand shaking thus making switching quicker and more reliable.

  • Page 6: Front Panel Menu System

    Please note PoC (Power over Cable) has been disabled on this product by default to reduce the risk of damaging incompatible HDBaseT™ receiver products. Please check your HDBaseT™ receiver supports 24V PoC before enabling PoC on this Matrix. The Blustream RX70CS HDBaseT™ receiver is recommended for use with this Matrix as it supports all features of this Matrix.

  • Page 7: Understanding The Hdbaset™ Status Led's

    When installing CAT cables it is advised that you use the best possible CAT cable quality. HDMI distribution products will only work if used with CAT5e standard cable or above. Blustream recommends using a CAT6 cable (or better) for installations, especially when running longer distances, in areas of high EMI, or for 4K signal distribution. It is advised that using any method of patch panel, wall plate, or join within the CAT cable is avoided as these can add degradation to the signal.

  • Page 8: Infrared (Ir) Control

    The Blustream range of matrix products include Matrix control via IR. IMPORTANT: Blustream Infrared products are all 5V and NOT compatible with alternative manufacturers Infrared solutions. When using third party 12V IR control solutions please use the Blustream IRCAB cable for IR conversion.
  • Page 9 HMXL88ARC USER MANUAL Login Page The Login Page allows a user or admin to login and access additional functionality. This page also shows you the current firmware version of both the matrix and web GUI. Guest Control Page The Guest Control Page allows a guest to change inputs for each zone without needing to be logged into the matrix.
  • Page 10 HMXL88ARC USER MANUAL Audio Control Page The Audio Control Page allows you to change the source audio of the matrix per output, as well as adjust the line level volume output or enable/disable the muting of the analogue or digital outputs. The Audio Select drop down menu also allows selection of Audio Return Channel either via HDMI or RX from compatible RX70CS HDBaseT™...
  • Page 11 HMXL88ARC USER MANUAL Configuration IR Select Page The Configuration IR Select Page allows you to change the IR routing of the matrix. Simply select the square that corresponds with the input and zone output you wish to set up a bi-directional IR relationship with, to have IR route only between that input to output.
  • Page 12 • Enable or disable PoC (Power over Cable) to power connected HDBT receiver. It is recommended to use the Blustream RX70CS HDBT Receiver to support all features of this Matrix • Enable or disable IR being transmitted out to a zone or from that zone output •...
  • Page 13 HMXL88ARC USER MANUAL CEC Page - Input The CEC Page allows you to send pre-defined CEC commands to Inputs or Outputs of the matrix. You can choose between Input, Output and User-defined sections at the top of the page. On the CEC Input Page, you must specify an input to send the CEC command to.
  • Page 14 HMXL88ARC USER MANUAL CEC Page - User-defined The CEC User-defined Page allows you to send custom CEC commands to any Output in the matrix. You can select an output and then enter the custom CEC command to send the desired function to the output display.
  • Page 15 HMXL88ARC USER MANUAL RS-232 Page - HDBT The RS-232 HDBT Page allows you to remotely control devices connected via DB9 serial to the remote HDBT Receiver. It is then possible to automate the display on, input select and display off process via RS-232 for each HDBT output, when the Matrix is turned on or off.
  • Page 16 HMXL88ARC USER MANUAL Upgrade Page The Upgrade Page will show you the current firmware version of the matrix, including the Web GUI version and the MCU firmware version. It also allows you to upgrade the firmware of both the Matrix MCU as well as the Receiver units connected to the matrix.

  • Page 17: Remote Control Description

    HMXL88ARC USER MANUAL Remote Control Description OUTPUT AND INPUT SELECTION Select the zone Output you wish to change the source on (Numbers 1-8 correspond to the zone outputs 1-8, or All corresponds with all outputs). Pressing the PTP button will mirror all inputs and outputs (Example - Input 1 to output 1, input 2 to output 2 etc).
  • Page 18 HMXL88ARC USER MANUAL IR Commands COMMAND 0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 OUTPUT 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 003F 0016 003F 0016 003F 0016 003F...

  • Page 19: Specifications

    • Power Supply: Internal 100-240V AC NOTE: Specifications are subject to change without notice. Weights and dimensions are approximate. Package Contents • 1 x HMXL88ARC • 1 x Rack Mounting Kit • 1 x Remote Control • 8 x IR Emitters •...
  • Page 20 \r or 0D (in hex) • Spaces – Blustream commands do not require space between commands unless specified. There may be some programs that require spacing in order to work. - How the string should look is as follows OUT01ON - How the string may look if spaces are required: OUT{Space}01{Space}ON •...
  • Page 21 HMXL88ARC USER MANUAL RS-232 Configuration and Telnet Commands COMMAND ACTION COMMAND ACTION ? / HELP Print help information Set RX70ARC On Output xx To ARC Mode aa xx = 00 : All Outputs STATUS Print system status and port status...
  • Page 22 HMXL88ARC USER MANUAL RS-232 Configuration and Telnet Commands COMMAND ACTION COMMAND ACTION OUTxx CEC DOWN DOWN On Output xx Send Custom CEC Command u8DevID: 00 Select All CEC Input Port OUTxx CEC LEFT LEFT On Output xx CECUSER- u8DevID: [01-08] Input 1 - 8...

  • Page 23: Web-Gui Firmware Update

    HMXL88ARC USER MANUAL Web-GUI Firmware Update The web-GUI of the Matrix is used to configure and control the product through a web portal. The Matrix can be accessed on any internet connected device including: tablets, smart phones and laptops that are on the same network.
  • Page 24 HMXL88ARC USER MANUAL 4) Click 'Choose File' and select the web-GUI/MediaTek firmware file downloaded from the Blustream website. This will be a .bin file: 5) Press 'Apply' to begin the firmware update process. The update process will take up to 1 minute to complete. Do not refresh or navigate away from this page until the update process has completed.

  • Page 25: Schematic

    HMXL88ARC USER MANUAL Schematic Contact: support@blustream.com.au support@blustream-us.com support@blustream.co.uk...
  • Page 26 HMXL88ARC USER MANUAL Certifications FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 27 HMXL88ARC USER MANUAL www.blustream.com.au www.blustream-us.com www.blustream.co.uk Contact: support@blustream.com.au support@blustream-us.com support@blustream.co.uk...
