BluStream HMXL66 Quick Reference Manual

6x6 4K HDBaseT™ Matrix
6x6 4K HDBaseT™ Matrix
1 2
1 2

Introduction

Key Features

• Features 6 x HDMI inputs which can be independently routed to 6x HDBaseT™ outputs
• Outputs 1 and 2 feature simultaneous HDMI and HDBaseT™ outputs
• Extends HDMI up to a distance of 70m 1080P over single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports 3D signal display
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Supports bi-directional IR on all HDBaseT outputs
• Control via front panel, IR, RS-232, and TCP/IP
• Web interface module for control and configuration of the Matrix
• IOS™ and Android™ control and configuration apps available
• Supports PoH (Power over HDBaseT™) to power compatible HDBaseT™ receivers
• 3rd Party drivers available for all major home control brands
• Advanced EDID management
• 1U Design for 19" rack mount integration - mounting kit included
• HDCP 1.4 compliant
contact
support@blustream.co.uk / support@blustream.com.au
HMXL66
Quick Reference Guide
IR
IR
HMXL66
RS232
TCP/IP
HDMI Input
HMXL66
3 4 5 6
RS232
TCP/IP
HDMI Input
3 4 5 6

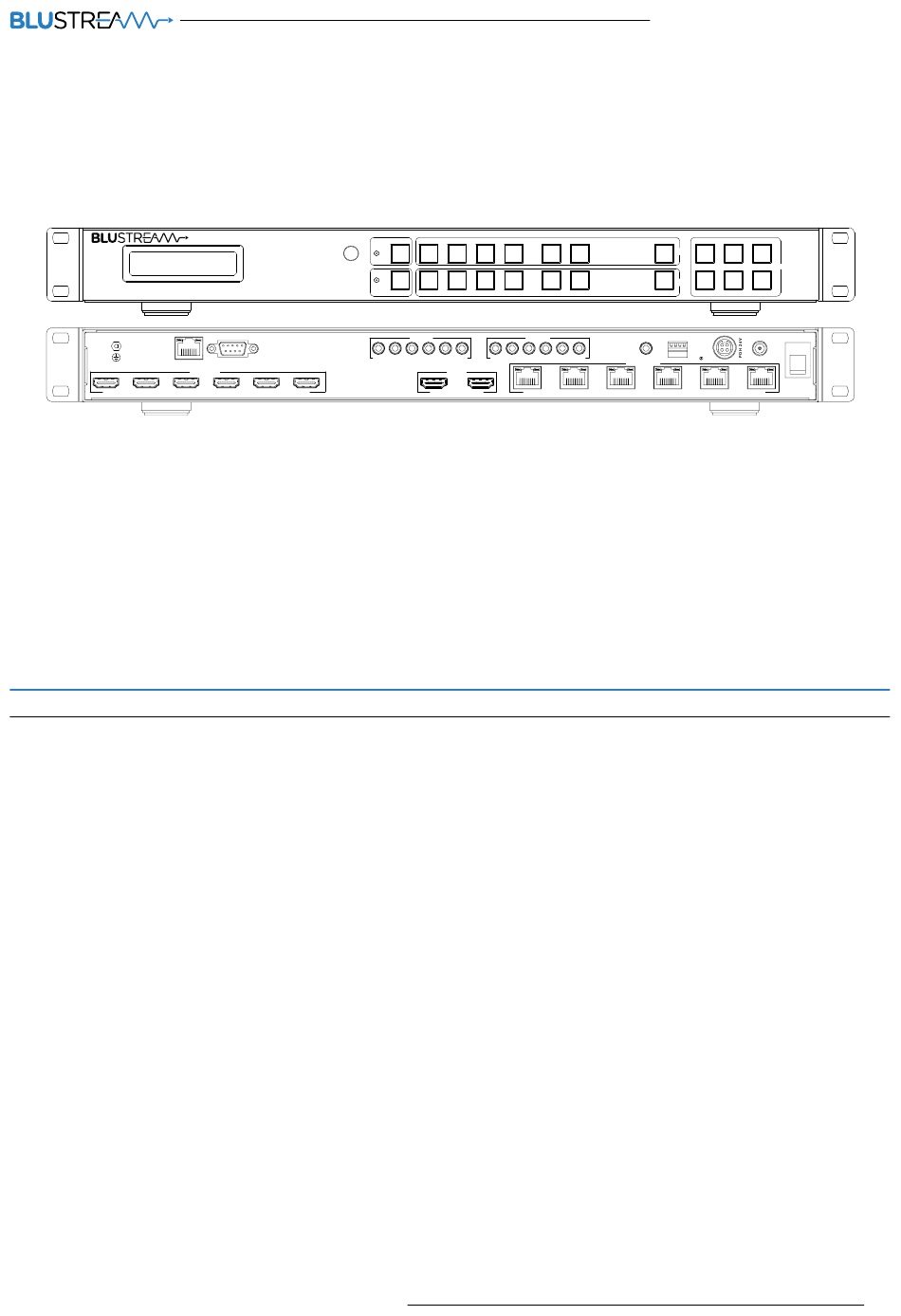

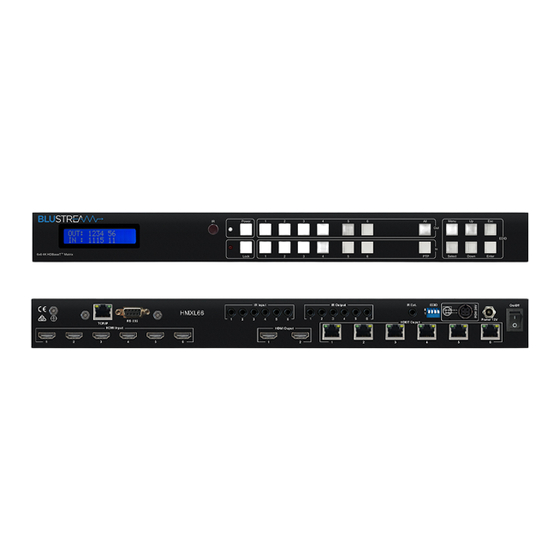

Our essential 6x6 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation
market. The HMXL66 is a 4K 6x6 matrix with a combination of 6 x HDBaseT™ and 2 x HDMI outputs (Outputs
1 and 2 feature simultaneous HDBaseT™/HDMI outputs). This allows for cost-effective integration of local
displays or AV receivers within an installation. The matrix delivers 1080p HDMI, Bi-directional IR and PoH (PoE)
up to lengths of 70m over a single CAT cable. The HMXL66 Matrix can be seamlessly integrated into 3rd party
control systems using RS-232, TCP/IP and Infrared and features a web browser interface module for control
and configuration of the Matrix.
Power 1 2 3 4
Power 1 2 3 4
Lock 1 2 3 4
Lock 1 2 3 4
IR Input IR Output
1 2 3 4 5 6 1 2 3 4
IR Input IR Output
Ouput
1 2 3 4 5 6 1 2 3 4
1
1 2
Ouput
1 2 1
HMXL66
Menu
5 6 All
Out
5 6 All Menu
Out In
5 6 PTP Select
In
5 6 PTP Select
IR Ext. EDID
0
1
5 6
HDBT Ouput
IR Ext. EDID
0
1
5 6
2 3 4 5
HDBT Ouput
2 3 4 5
QUICK REFERENCE GUIDE
Up Esc
EDID
Up Esc
Down Enter
EDID
Down Enter
On/Off
Power 12V
On/Off
Power 12V
6
6
