Ergotron StyleView SV32 User Manual

Notebook cart
Hide thumbs Also See for StyleView SV32:

Advertisement

Quick Links

Download this manual
For the latest User Installation Guide and StyleLink Software Download please visit:
Encontrará la versión más reciente del manual de instalación del usuario y el software de StyleLink en:
Si vous souhaitez télécharger le dernier manuel d'installation de l'utilisateur ou le logiciel StyleLink, rendez-vous sur :
Den neuesten Installationsleitfaden für Benutzer sowie den neuesten StyleLink-Softwaredownload fi nden Sie unter:
Voor de nieuwste Installatiehandleiding voor de gebruiker en voor het downloaden van StyleLink-software gaat u naar:
Per scaricare le versioni più recenti del manuale di installazione e del software StyleLink, andare al sito:
De senaste versionerna av installationshandledningen och nedladdning av programvaran för StyleLink fi nns på:
最新版ユーザインストールガイ ドとスタイルリンク ソフトウェアは次のサイ トでダウンロードできます。
请从下列地址获取最新版本的用户安装指南和 StyleLink 软件下载：
사용자 설치 안내서 및 StyleLink 소프트웨어 다운로드는 다음 웹 사이트에서 제공하고 있습니다.
http://4support.ergotron.com
StyleView powered carts provide electrical AC power
for mobile point of care computing equipment in a
healthcare environment. The carts are not intended
to power medical products or devices. Outlets
are provided to power information technology
equipment only such as computer equipment and
computer peripherals.
888-24-094-G-02 rev. K • 08/10
User's Guide - English
Guía del usuario - Español
Manuel de l'utilisateur - Français
Gebruikersgids - Nederlands
Benutzerhandbuch - Deutsch
Guida per l'utente - Italiano
Användarhandbok - svenska
ユーザーガイ ド : 日本語
用户指南 : 汉语
사용자 안내서 : 대한민국

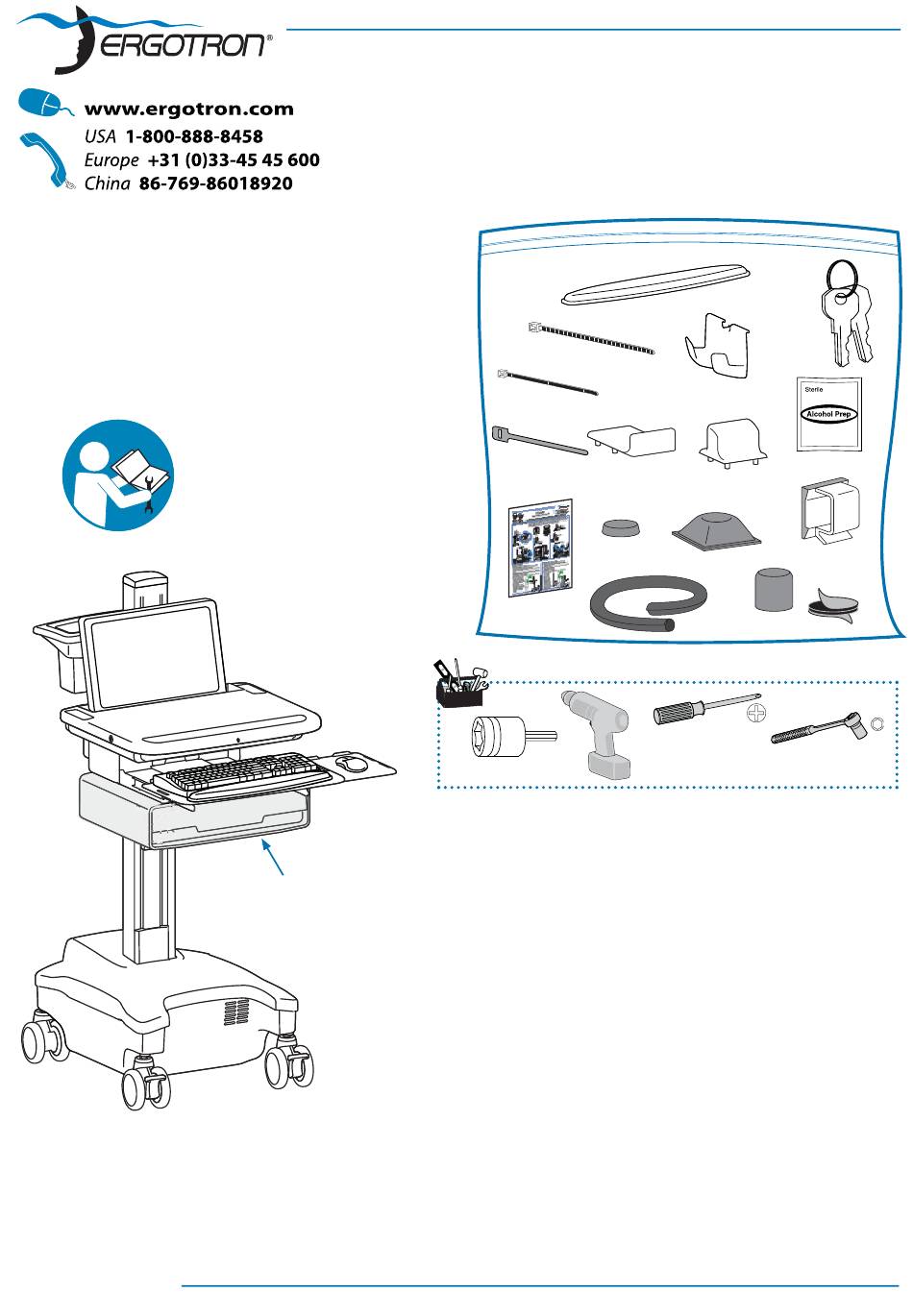

NOTE: The SV32-32008 Carts
do not include the Auto Lock
Drawer (shaded area).
StyleView® SV32 Notebook Cart
1x
1x
1x
2x
1x
1x
8x
1x
14mm (9/16")
Features & Specifi cations ............................................... 2 - 3
Set-up .............................................................................. 4 - 6
Route Cables & Cords ....................................................... 7-9
Ready On .......................................................................7
Keyboard Light .............................................................7
Adjustment ........................................................................ 10
Battery Charge/Discharge .................................................11
Auto-Lock Drawer ...............................................................12
Change Power System Batteries ................................ 14 - 15
Cart Storage (long term/short term) .................................16
Ergonomics .........................................................................17
Maintenance & Safety ................................................ 18 - 19
AUS
User Guide
· SV32-32008; 66 Ah Electrical System
· SV32-32058; 66 Ah Electrical System,
with Auto-Lock Drawer
3x
1x
2x
2x
2x
4x
8x
16x
10mm
(3/8")
1/20

Advertisement

loading
Need help?

Need help?

Do you have a question about the StyleView SV32 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ergotron StyleView SV32

Summary of Contents for Ergotron StyleView SV32

  • Page 1: Table Of Contents

    De senaste versionerna av installationshandledningen och nedladdning av programvaran för StyleLink fi nns på: 最新版ユーザインストールガイ ドとスタイルリンク ソフトウェアは次のサイ トでダウンロードできます。 请从下列地址获取最新版本的用户安装指南和 StyleLink 软件下载： 사용자 설치 안내서 및 StyleLink 소프트웨어 다운로드는 다음 웹 사이트에서 제공하고 있습니다. http://4support.ergotron.com User's Guide - English Guía del usuario - Español Manuel de l’utilisateur - Français...

  • Page 2: Features & Specifi Cations

    10 °C -20 °C 50 °F - 4 °F BATTERY Relative Relative Humidity 5-95% rH Humidity 5-95% rH Range Range Operational Storage For more information on this or other Ergotron www.ergotron.com products, visit our website: 888-24-094-G-02 rev. K • 08/10 2/20...
  • Page 3 Features & Specifi cations 34.5" 13.3" (876 mm) (337 mm) 28.1" 3.1" 8.1" (714 mm) 5.9" 4.4" 1.7" (79 mm) 29.1”- 49.1” (206 mm) (149 mm) (112 mm) (43 mm) 47.2" (739-1247 mm) (1199 mm) 16.4" 41.4" (416 mm) (1053 mm) 24.2”- 44.2"...

  • Page 4: Set-Up

    Set-up Spacers are required under notebook and battery to ensure adequate air fl ow and to optimize screen adjustment. 888-24-094-G-02 rev. K • 08/10 4/20...
  • Page 5 Set-up Connect the USB and Ethernet Crossover cables to your Notebook NOTE: these cables are factory-connected to the USB Hub and routed USB Type A Ethernet from a compartment connection Crossover at the rear of the cart on notebook connection to be connected to the notebook at this time.
  • Page 6 Set-up Carts with no AutoLock Drawer: Carts with AutoLock Drawer: Connect Cart (DC) Power Connect Cart (DC) for "Ready On" Power for "Ready On" Remove cap and Remove cap plug-in and plug-in to Connect Cart (DC) Power to lower lower power for AutoLock Drawer power connection.

  • Page 7: Route Cables & Cords

    5. Turn Computer off. 6. Press Ready On Button. Computer should turn on. If it does not turn on repeat steps 1 - 6. If computer still does not turn on, contact Ergotron Customer Care. Keyboard Light NOTE: The Keyboard Light is powered from the USB Hub inside the enclosure. Your equipment must be routed into the USB Hub and your computer must be on for this light to function.
  • Page 8 Route Cables and Cords Route AC Replace covers. Power Cords Place AC Power Adaptor in compartment. Note: Factory Route power cable pre-installed down along tower. cables have not been illustrated for clarity. Remove cover. NOTE: Carts NOTE: Carts with AutoLock with AutoLock Drawer do not Drawer do not...
  • Page 9 Route Cables and Cords Wrap cable tie around power cords. Insert cable tie through holder. Replace cover. Pull tie Trim excess tightly cable tie around with sissors. cords. NOTE: Carts with NOTE: Carts with AutoLock Drawer AutoLock Drawer do not have cable do not have cable cover.

  • Page 10: Adjustment

    Adjustment It is important that you adjust this product according to the weight of the mounted equipment as described in the following steps. Any time equipment is added or removed from this product, resulting in a change in the weight of the mounted load, you should repeat these adjustment steps to ensure safe and optimum operation. Adjustments should move smoothly and easily through the full range of motion and stay where you set it.

  • Page 11: Battery Charge/Discharge

    100%! You can use cart while charging. gets below 50%. For details on enabling and disabling alarm contact Ergotron Customer Care. Alarm Mute button. Pressing this will temporarily mute alarm. Power button for internal power system outlets. Pressing this will provide or remove power to/ from components plugged into the internal outlets.

  • Page 12: Auto-Lock Drawer

    2 Press 3 and 5 simultaneously (while blinking) 3 Press 1 and 2 on number pad at the same time Lost Master Code Contact Ergotron Customer Care for instructions. Drawer Troubleshooting • Key pad numbers are dark Flashing LED: Meaning...

  • Page 13: Change Fuse (1 Amp) And Reset Circuit Breakers

    AC Outlet power source. Power button for 1 - 3 seconds. Power light will shut off. 1 Amp Fuse Recommended: Littelfuse 312001P Before reseting circuit breakers, contact Ergotron to determine cause of trip. 888-24-094-G-02 rev. K • 08/10 13/20...

  • Page 14: Change Power System Batteries

    • Replace fi rst battery before removing second battery. • Replace batteries with same Amp/Hour rating batteries only. • Only Ergotron-specifi ed batteries may be used in the StyleView Power System. Please call customer care for more details. • Recycle battery or contact Ergotron for proper battery disposal guidelines.
  • Page 15 Caution: Connect Red (+) before connecting Black (-). Black Caution: Remove Black (-) before removing Red (+). Black LEAD Recycle battery or contact Ergotron for proper battery disposal guidelines. BATTERY Caution: Connect Red (+) before connecting Black (-). Black Follow Battery Charge/Discharge Initial Power on steps 1-4.

  • Page 16: Cart Storage (Long Term/Short Term)

    Store battery in cool, dry area while Cart is out of use. Optimal storage temperature is 15°C/59°F. Battery votage should be checked every three (3) months. If voltage drops below 12.5VAC, fully recharge battery. Contact Ergotron Customer Care for information about how storage might impact the battery warranty.

  • Page 17: Ergonomics

    Ergonomics Moving Working stow - before you go customize - to your size 1 During normal movement, release brake and lower worksurface to 1 Set top of monitor screen about one inch below eye level - Release brake and lift or lower riser lowest position for optimal stability and unobstructed view.
  • Page 18 It is recommended that any cleaning solution be tested on a small, inconspicuous area to ensure surface is not harmed. Adjustment, Service, Replacement - DO NOT attempt to adjust, service or replace any part of the StyleView Cart unless directed to do so through Ergotron-approved documentation (i.e.
  • Page 19 Emissions Test Compliance Electromagnetic environment – guidance capacity specifi ed by Ergotron. Ensure optimum lift function by testing and RF Emissions Group 1 The SV32 Powered Computer Cart uses RF energy only...
  • Page 20 888-24-094-G-02 rev. K • 08/10 20/20...

This manual is also suitable for:

Styleview sv32-32008Styleview sv32-32058
