How To Install The Mounting Bracket - Magtek iDynamo 6 Installation And Operation Manual

2 - Installation
2.4

How to Install the Mounting Bracket

iDynamo 6 provides a universal mounting bracket that can be used to mechanically stabilize its
connection with the host and provide a more secure, integrated feel for cardholders to interact with.
To install the optional mounting bracket, follow these steps:

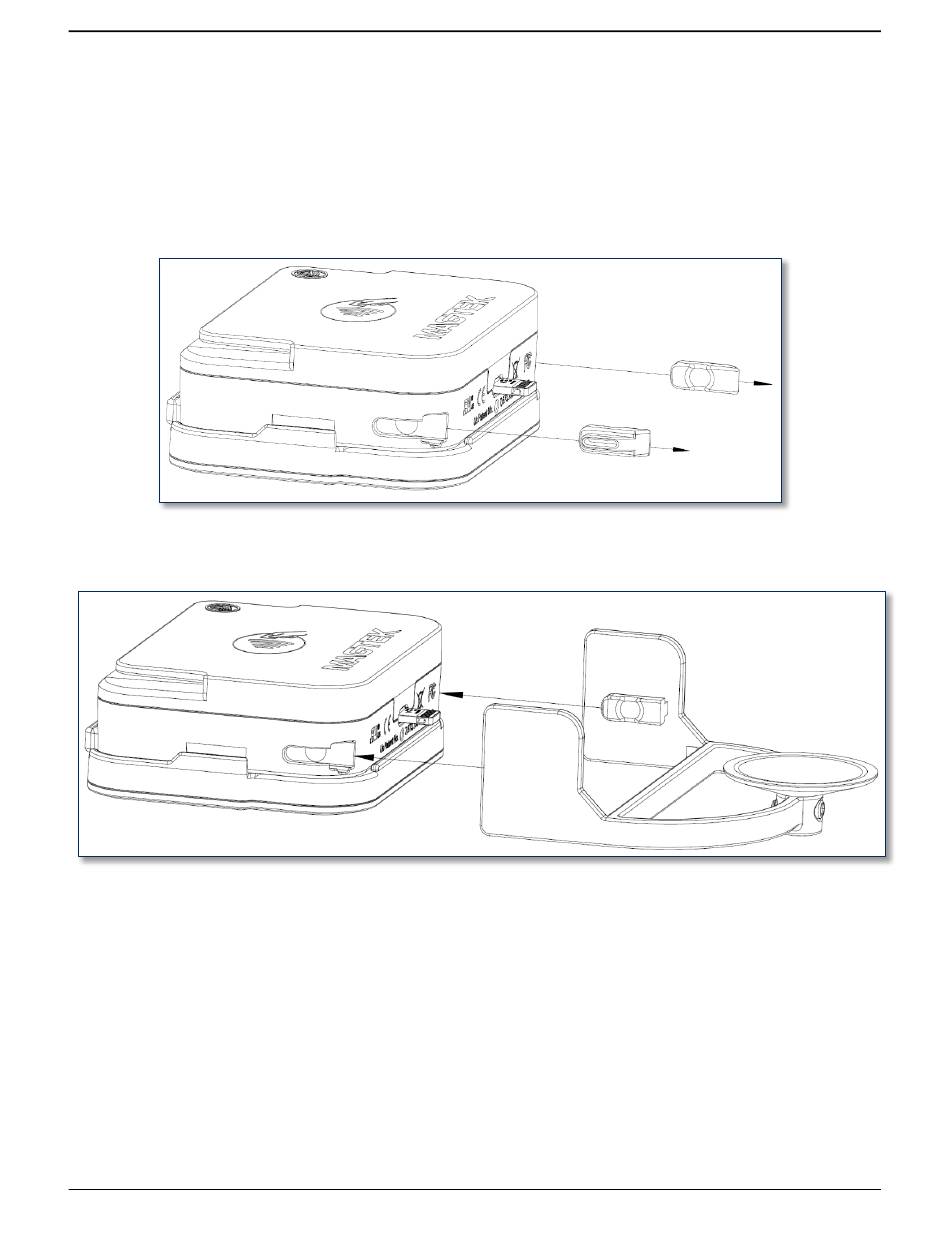

1) Use a paperclip to slide the small covers out of the mounting bracket retaining holes on each side of
iDynamo 6's housing. Set them aside for possible future use.
2) Slide the mounting bracket's retaining clips into iDynamo 6's retaining holes until you feel them seat
firmly in place.
3) Make sure the mounting bracket suction cup is clean.
4) Make sure the rear surface of the host is clean.
5) After connecting iDynamo 6 to the host (see section 2.5 Connecting to an iOS Host or section 2.6
How to Connect to an Android Host), press the mounting bracket's suction cup onto the rear
surface of the host.
To uninstall the mounting bracket, reverse the steps above, including re-inserting the retaining hole
covers. The mounting bracket resists slightly when being pulled out of the retaining holes, but is
designed to be removable without damage.
iDynamo 6| Secure Card Reader Authenticator | Installation and Operation Manual
Page 19 of 41 (D998200321-20)
