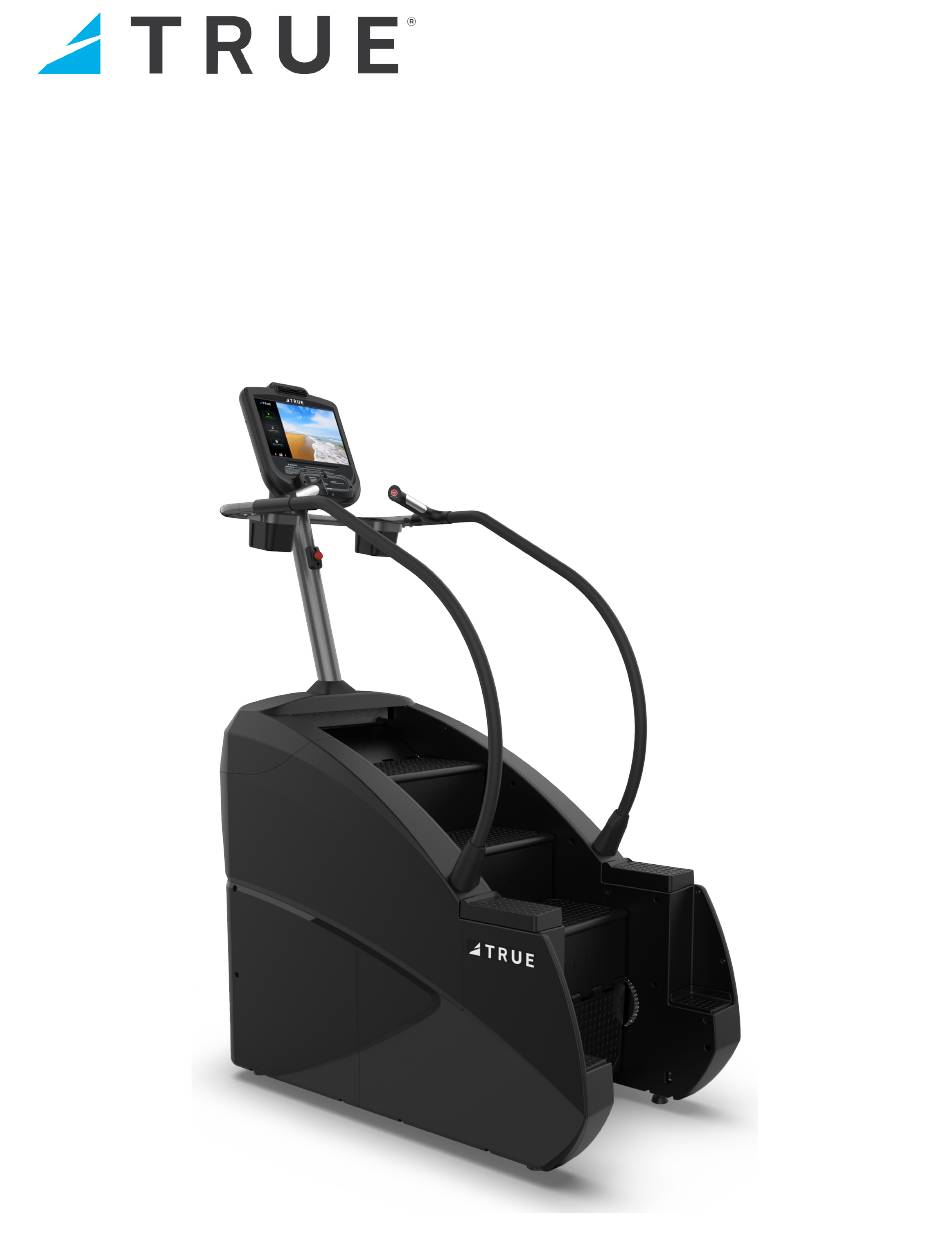

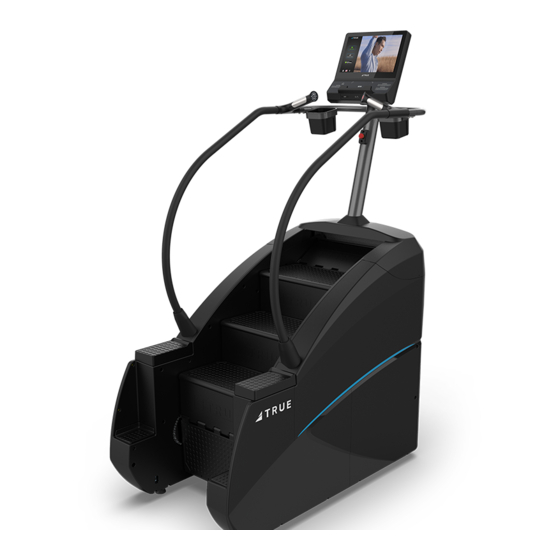

- Page 1 * Assembly Guide & Warranty Card Included VC900 PALISADE CLIMBER OWNER’S MANUAL Model #: VC900 Revision 072319...
- Page 2 VC900 OWNERS MANUAL IMPORTANT: All products shown are prototype. Actual product delivered may vary. Product specifications, features & software are subject to change without notice. For the most up-to-date owner’s manual please visit www.truefitness.com. For documents in additional languages please visit www.truefitness.com/resources/document-library/ IMPORTANTE: Todos los productos mostrados son prototipos.
- Page 3 The proud manufacturing tradition of quality and the culture of innovation at TRUE have given rise to a full line of extraordinary cardio and strength equipment. As a result, people all over the world are benefiting from the TRUE experience.
-
Page 4: Table Of Contents
VC900 OWNERS MANUAL TABLE OF CONTENTS: Chapter 1: Safety Instructions Safety Instructions ..................................5 Space Requirements ................................8 Grounding Instructions .................................9 Power Requirements ................................10 Warning Decals..................................11 Compliances ..................................11 Chapter 2: Pre-Assembly Pre-Assembly Checklist ...............................12 Chapter 3: Unboxing Unboxing ....................................14 Chapter 4: Assembly Instructions Assembly Steps ..................................16... -
Page 5: Chapter 1: Safety Instructions
45, smokes, has high cholesterol, is obese or has not exercised regularly in the past year. Additionally, TRUE recommends consulting a fitness professional on the correct use of this product. - Page 6 To disconnect, turn power OFF at the ON/OFF switch if applicable, then remove plug from electrical outlet. • Never operate a TRUE product if it has a damaged power cord or electrical plug, or if it has been dropped, damaged, or even partially immersed in water. Contact TRUE Customer Service for a replacement.
- Page 7 • Do not exceed VC900 maximum user weight of 400lbs (181 kg). • Do not use if you have a cold or fever.
-
Page 8: Space Requirements
CHAPTER 1: SAFETY INSTRUCTIONS SPACE REQUIREMENTS: TRUE’s recommendation is to leave a minimum of 12” (.3 m) on each side of the Palisade Climber and a 36” (.9 m) safety zone at the rear of the Palisade Climber. VC900: Ceiling 60”... -
Page 9: Grounding Instructions
CHAPTER 1: SAFETY INSTRUCTIONS GROUNDING INSTRUCTIONS: This product must be grounded, if it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. -
Page 10: Power Requirements
CHAPTER 1: SAFETY INSTRUCTIONS Truefitness.com / 800.426.6570 / 636.272.7100 10 of 38... -
Page 11: Warning Decals
WARNING DECALS: WARNING: Replace warning labels that may be worn, damaged, or missing. To replace any worn or missing decals contact TRUE FITNESS by visiting www.truefitness.com or contact customer service at 800-883-8783. COMPLIANCES: This equipment complies with all applicable codes and regulations. For a complete list of compliances, please visit www.truefitness.com. -
Page 12: Chapter 2: Pre-Assembly
Important Electrical Requirements – 120V: Your TRUE equipment requires a dedicated 120 volt, alternating current (AC), 20 amp grounded outlet circuit. This means nothing else can be plugged into the same circuit. Most power circuits are rated for this 120V AC 20 amp requirement, but you must ensure the equipment does not share the circuit with anything else. -
Page 13: Pre-Assembly Checklist
CHAPTER 2: PRE-ASSEMBLY PRE-ASSEMBLY CHECKLIST: ITEM DESCRIPTION Qty. Handrail Console Mast Console Back Cover Cup Holder Rings Handrail Base Covers Cup Holder Mast Base Cover Inner Cover Upper Frame Top Shroud Body Handrail Brackets Truefitness.com / 800.426.6570 / 636.272.7100 13 of 38... -
Page 14: Chapter 3: Unboxing
CHAPTER 3: UNBOXING PALISADE CLIMBER ASSEMBLY STEPS: Step 1 Unboxing: After opening the product box, remove all smaller part boxes and plastic wrapping. Remove the cardboard securing the top part of the handrails and then remove the screws identified below that are securing the handrails to the shipping palette. - Page 15 CHAPTER 3: UNBOXING PALISADE CLIMBER ASSEMBLY STEPS: Step 2 Unboxing: Carefully tilt the product base upward to position lifting straps underneath. Using two people, carefully lift the product off the shipping palette and place on the ground. If the product is near its final resting position, carefully tilt the product on each side and adjust the leveling feet identified below until the product base is parellel with the ground.
-
Page 16: Assembly Steps
CHAPTER 4: ASSEMBLY STEPS PALISADE CLIMBER ASSEMBLY STEPS: Step 1 Upper Frame: Secure the Upper Frame to the Body Item Part Number Description Quantity using the identified hardware. VC90176 SHCS, M8 x 20mm VC90151 Flat Washer VC90003 Upper Frame Weldment Note the orientation of the threaded holes on the Upper Frame as identified in the callouts shown below. - Page 17 CHAPTER 4: ASSEMBLY STEPS PALISADE CLIMBER ASSEMBLY STEPS: Step 2 Inner Cover: Secure the Inner Cover to the Body Item Part Number Description Quantity using the identified hardware. VC90148 PHMS, M5 x 12mm VC90103 Inner Cover Truefitness.com / 800.426.6570 / 636.272.7100 17 of 38...
- Page 18 CHAPTER 4: ASSEMBLY STEPS PALISADE CLIMBER ASSEMBLY STEPS: Step 3 Console Mast: Secure the Console Mast to the Upper Item Part Number Description Quantity Frame using the identified hardware. VC90176 SHCS, M8 x 20mm VC90151 Flat Washer VC90004 Console Mast Note: Place the Mast Base Cover and VC90112 Mast Base Cover...
- Page 19 CHAPTER 4: ASSEMBLY STEPS PALISADE CLIMBER ASSEMBLY STEPS: Step 4 Handrails: Connect the contact heart rate Item Part Number Description Quantity (CHR) and thumbswitch (TS) cables VC90005 Left Handrail between the handrails and console VC90006 Right Handrail VC90117 Left Handrail Base Cover mast.
- Page 20 CHAPTER 4: ASSEMBLY STEPS PALISADE CLIMBER ASSEMBLY STEPS: Step 5 Cup Holders: Assemble the cup holders to the Item Part Number Description Quantity handrails and console mast using the VC90009 Left Cupholder Bracket identified hardware. VC90010 Right Cupholder Bracket VC90167 BHCS, M8 x 12mm Truefitness.com / 800.426.6570 / 636.272.7100 20 of 38...
- Page 21 CHAPTER 4: ASSEMBLY STEPS PALISADE CLIMBER ASSEMBLY STEPS: Step 6 Handrail Brackets: Align the handrails with the brackets Item Part Number Description Quantity shown below and assemble using the VC90168 HHCS, M10 x 55mm identified hardware. VC90019 Handrail Bracket VC90169 Hex Nut, M10 Truefitness.com / 800.426.6570 / 636.272.7100 21 of 38...
- Page 22 CHAPTER 4: ASSEMBLY STEPS PALISADE CLIMBER ASSEMBLY STEPS: Step 7 Securing Hardware: Insert the cupholders into the cupholder Item Part Number Description Quantity rings. VC90111 Cupholder Secure all hardware identified in the callouts as shown below. Note: Top Shroud omitted here for clarity purposes.
- Page 23 CHAPTER 4: ASSEMBLY STEPS PALISADE CLIMBER ASSEMBLY STEPS: Step 8 Top Shroud: Connect all console mast cables to their respective body cables Item Part Number Description Quantity using the Wiring Diagram on page 35. VC90090 Top Shroud VC90179 PHMS, Secure these cables to the Upper Frame to ensure they do not M5 x 12mm hang below the Inner Cover, thus preventing cable pinching.
- Page 24 CHAPTER 4: ASSEMBLY STEPS PALISADE CLIMBER ASSEMBLY STEPS: Step 9 Console Assembly: Place the two bottom console mounting screws inside Item Part Number Description Quantity the bottom identified holes on the console mast VC90148 CR.-RE. TRUSS HD. assembly. Partially thread the two top console mounting SCREW screws into the console.
- Page 25 CHAPTER 4: ASSEMBLY STEPS PALISADE CLIMBER ASSEMBLY STEPS: Step 10 Rear Console Cover: Attach the rear console cover using the identified Item Part Number Description Quantity hardware. VC90148 CR.-RE. TRUSS HD. SCREW Note: Confirm the heart rate cables are connected to the Heart Rate Board per the wiring diagram on pg.
-
Page 26: Product Overview
CHAPTER 5: PRODUCT OVERVIEW PALISADE CLIMBER OVERVIEW: Quick Access Keys Console Assembly Contact Heart Rate Pads Cupholders Handrails Safety (E-Stop) Key On/Off Switch and Power Cord Steps Leveling Feet Truefitness.com / 800.426.6570 / 636.272.7100 26 of 38... - Page 27 CHAPTER 5: PRODUCT OVERVIEW PALISADE CLIMBER OVERVIEW: Console Assembly: The console allows the user to set up a workout program and control the Palisade Climber during a workout (For console overview and operation instructions refer to chapter 4). Quick Access Keys: Allows the user to quickly start, stop, and wake the Palisade Climber or make fast, convenient adjustments to the speed of the Palisade Climber.
-
Page 28: Chapter 6: Care & Maintenance Care & Maintenance
CAUTION: Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Fitness Warranty. Never pour water or spray liquids on any part of the Palisade Climber. Allow the Palisade Climber to dry completely before using. -
Page 29: Leveling The Equipment
OTHER SCHEDULED PREVENTIVE MAINTENANCE: TRUE recommends that quarterly scheduled maintenance be performed by a qualified service technician. Please contact your dealer or visit www.truefitness.com to contact a local TRUE authorized service technician. Scheduled Preventive Maintenance: •... -
Page 30: Chapter 7: Customer Service Contacting Service
HOURS OF OPERATION: 8:30 A.M. - 5:00 P.M. CST E-MAIL: service@truefitness.com CONTACTING SALES: Interested in TRUE Products? Please contact us with any sales or product inquires so that we may direct you to the appropriate sales representative to answer your questions. TRUE FITNESS HOME OFFICE 865 HOFF ROAD ST. -
Page 31: Reporting Freight Or Parts Damage
Please make sure the photos include the damaged product as well as the damaged box the product arrived in. Contact the TRUE Fitness customer support team by calling 800.883.8783 or sales support team by calling 800.426.6570 Monday-Friday during normal business hours. -
Page 32: Chapter 8: Additional Information
This troubleshooting guide is intended to assist in diagnostics only and is not all inclusive. Technical specifications, error codes and programming are subject to change without notice. TRUE accepts no liability for any damage or loss suffered by persons whom rely wholly or in part on any description or statement contained within this manual. Please visit www.TRUEfitness.com to obtain the most recent version of all manuals and contact the TRUE Service Department at 800-... - Page 33 Re-configure console Corrupted Console configuration - fails Firmware and software Console Re-install software/firmware integrity check Configuration versions are not Contact dealer or TRUE service compatible Console is configured Power cycle Console Configure Fault CN06: for a product different incorrectly Config Console...
- Page 34 Fault A107: Loose Cable Check cable connections Motor Phase A Circuit AC MCB Controller Open Motor Control Board Contact dealer or TRUE service Fault Fault A109: Power cycle Critical DCLink Loose Cable Connection Motor AC MCB Bus Overvoltage Check cable connections...
-
Page 35: Wiring Diagram
CHAPTER 8: ADDITIONAL INFORMATION WIRING DIAGRAMS: Truefitness.com / 800.426.6570 / 636.272.7100 35 of 38... -
Page 36: Chapter 9: Warranty Information
VC900 PALISADE CLIMBER Save Time and Register Online! Activate Multiple Warranties at truefitness.com All TRUE® Fitness products are distributed by TRUE and are touchscreen consoles are warranted for defects in material and warranted to the original registered product purchaser and the workmanship for three years with three years labor warranty. - Page 37 OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL attached form is filled in, signed by the original purchaser and mailed to TRUE within 30 days of purchaser’s receipt of this DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY Product. The serial number must be intact on the Product for NOT APPLY TO YOU.
- Page 38 If you prefer to mail your warranty card, have the owner of the product complete the information below and return it to TRUE Fitness within 30 days from the date of equipment installation.
