use keyboard in USB. press t - touchscreen, use mouse to adjust settings. press t when done to revert
ESCALATE
WARNING:
Changes made within this any of these modes can drastically change the way this machine functions. Unsupervised
interaction with these modes can cause fatal errors and void Manufacturers warranties
press and hold top left button ( two arrows back, like rewind)
toggle
9
SERVICE MODE
use USB port on console for mouse and keyboard. d - diagnose, c - cursor
-TREADMILL-
esco 15 w/ buttons under screen.....
when "True" starts to blink, press and hold enter
TFT CONSOLE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for True ESCALATE9
Summary of Contents for True ESCALATE9
- Page 1 15 w/ buttons under screen..press and hold top left button ( two arrows back, like rewind) when "True" starts to blink, press and hold enter toggle use keyboard in USB. press t - touchscreen, use mouse to adjust settings. press t when done to revert...
-
Page 2: Entering Service Mode

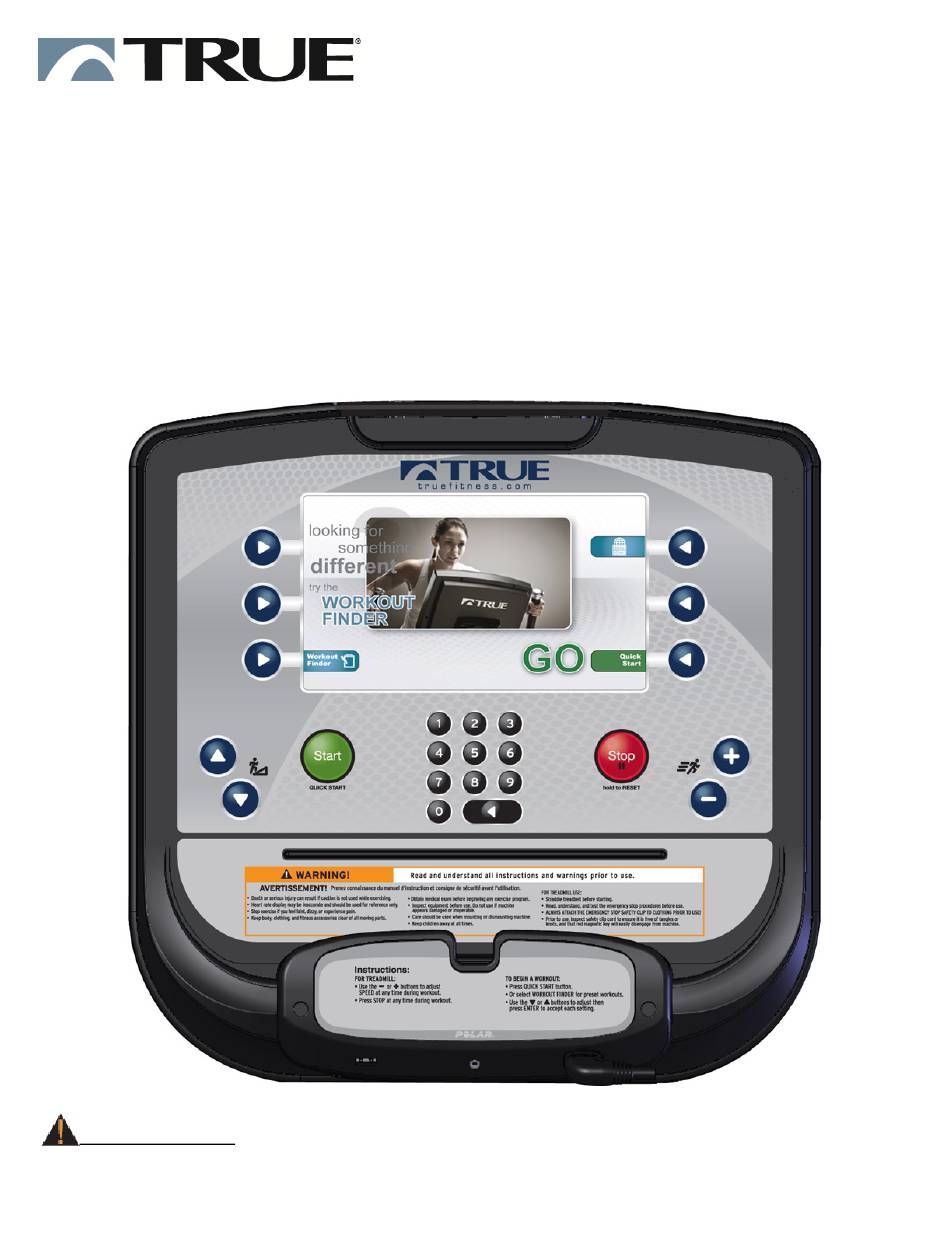

ESCALATE SERVICE MODE -TREADMILL- ENTERING SERVICE MODE: Entering Service Mode can be completed by pressing and holding the upper left selection button (A) for 3-5 seconds or until the “Workout Finder” icon (B) blinks. When the “Workout Finder” icon blinks, release and hold the “Workout Finder”... -
Page 3: Summary Screen
ESCALATE SERVICE MODE -TREADMILL- SUMMARY SCREEN: The Summary Screen provides an overview of the unit’s current settings (values cannot be changed in this screen). A) Product Model: The model number that the console is currently configured to. B) Software Version: The current version of software that is installed on the console. -
Page 4: Utilities Menu
(C) to confirm the selection. Product Setup: The product setup screen allows the technician to adjust model configuration, incline range, and speed range. TRUE’s recommendation is to only use the Setup Wizard to adjust these attributes. After pressing the Setup Wizard Selection... - Page 5 To complete the update, press the update selection button (A). WARNING: To avoid errors and console damage, All files or documents on the USB stick, other than the TRUE software update, must be placed in a folder.
-
Page 6: Options Menu
ESCALATE SERVICE MODE -TREADMILL- OPTIONS MENU: The options menu contains 12 Settings with various options available for each. For a complete list of settings and options, please refer to the table on the next page. To navigate the options menu, use the scroll selection buttons (A) to highlight the option to be changed (B) and use the speed keys (C) or incline keys (D) to adjust the options. -
Page 7: Diagnostics Menu
ESCALATE SERVICE MODE -TREADMILL- OPTIONS MENU (continued): Max Workout Time: This setting will limit the amount of time that all workouts can last. By choosing the “Off” setting, the time will be unlimited (this setting does not apply to manual workouts or distance workouts). Finder Timeout: Choose how long the Workout Finder remains on the screen without any user interaction. - Page 8 ESCALATE SERVICE MODE -TREADMILL- DIAGNOSTICS MENU (continued): Calibration/Test: This menu contains tools for testing and verifying treadmill operation. A) Key Test: When a key is pressed on the console “NONE” will change to indicate which key is being pressed. In the event of a stuck key, the key that is being engaged will display (the selection buttons are excluded from this test).
- Page 9 ESCALATE SERVICE MODE -TREADMILL- DIAGNOSTICS MENU (continued): Error Log: Error codes are an important part of troubleshooting any issues with the treadmill. Any time an error occurs it is entered into the error log for review by a service professional. This console is capable of storing the ten most recent errors. The error log can be cleared by pressing the enter selection button (A), but it is not recommended.
