- Page 1 FS-30 MITH ACHINE SSEMBLY ANUAL AM-FS-30 REV: 110413...
- Page 2 For your convenience, product questions can be answered by an Authorized Dealer or by contacting the TRUE Customer Service Department at 1-800-883-8783 or Paramount Service at 1-800-721-2121. Office hours are Monday-Friday, 8:30 am - 5:00 pm CST Or email us at service@truefitness.com or paramountservice@truefitness.com...
-
Page 3: Table Of Contents
ABLE ONTENTS ......................AFETY ..............ENERAL ARE AND AINTENANCE & W ............... ACHINE IMENSIONS EIGHTS ..................... ARTON ONTENTS ......................SSEMBLY ....................ARNING ABELS ....................ARTS IAGRAMS .................... IMITED ARRANTY... -
Page 4: Safety
AFETY ACILITY AND AFETY RECAUTIONS 1. Review and understand all of the warning labels affixed to this machine and on the facility safety sign. 2. Be certain that the machine operation is understood before it is used. Refer to the instructional Procedure Label affixed to the machine. - Page 5 AFETY 12d. This equipment is designed for standard olympic size weight plates with a 50mm bore (1.9”). 12e. Do not exceed the maximum weight capacity of the machine. Maximum plate size is 45 lbs. (25 kg.). 13. On Selectorized and Cable equipped machines: 13a.
- Page 6 AFETY AINTENANCE AFETY RECAUTIONS 1. Refer to Maintenance Schedule label on the machine as well as this manual for when to perform maintenance. 2. Check the function of your machine DAILY by verifying the following: • Inspect cables and end fittings for any signs of wear. Replace if worn, frayed or damaged with original Paramount replacement components.
-
Page 7: General Care And Maintenance
13. Be sure all hardware is tight before using the machine. Retain these instructions for future reference. If you have any questions, do not hesitate to contact your Paramount dealer or TRUE Fitness at (800)426-6570 or service@truefitness.com. -
Page 8: Machine Dimensions & Weights

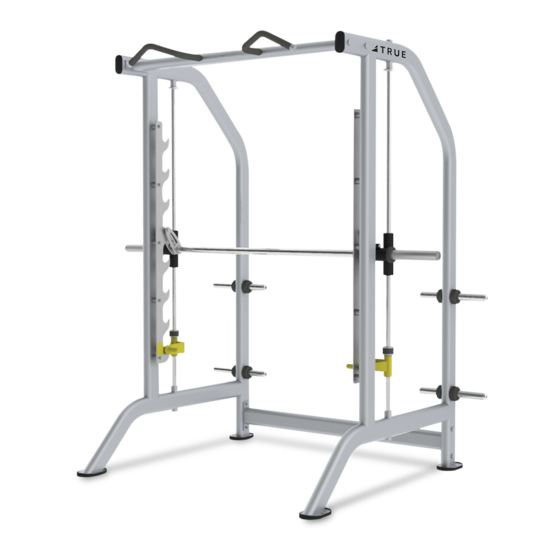

& W ACHINE IMENSIONS EIGHTS This unit is shipped in two cartons. Carton 1 and carton 2 have identical dimensions: 87” X 58” X 8” 220 cm x 147 cm x 19 cm Carton weight (as shipped) = 170 lbs (79 kg.) per carton. Total shipping weight for both cartons = 340 lbs (158 kg.) Assembled Weight (as shown) = 300 lbs (136 kg.) Maximum User Weight for pull up bars = 300 lbs. -
Page 9: Carton Contents
ARTON ONTENTS... -
Page 10: Assembly
SSEMBLY TOOLS REQUIRED • 14 mm (9/16”) wrench or ratchet handle and 14mm (9/16”) socket. • 3/32” allen hex wrench • 5.5 mm (7/32”) allen hex wrench • steel hammer • step ladder A MINIMUM OF TWO PEOPLE ARE REQUIRED TO ASSEMBLE THIS MACHINE. STEP 1. - Page 11 SSEMBLY...
- Page 12 SSEMBLY STEP 7. Insert the WEIGHT HORNS into the frame tube as shown. NOTE that the IMENSION holes in the WEIGHT HORNS are not symmetric. Make sure that the “short side” is facing into the center of the machine. Secure the WEIGHT HORNS to the frame by tapping the ROLL PINS into the frame with a steel hammer.
-
Page 13: Warning Labels
ARNING ABELS The following are the warning labels required for this product. If any of these labels are missing or become damaged contact Paramount. Note: these labels are not to scale. B2060A B2315 B547 B2082A LBL-WRN-0018 LBL-PR-FS30 LBL-WRN-0012... -
Page 14: Parts Diagrams
ARTS IAGRAMS... - Page 15 ARTS IAGRAMS...
- Page 16 ARTS IAGRAMS...
- Page 17 ARTS IAGRAMS...
- Page 18 ARTS IAGRAMS...
-
Page 19: Limited Warranty
ARAMOUNT IMITED ARRANTY READ PARAMOUNT’S WARRANTY SET FORTH BELOW PRIOR TO USING PARAMOUNT PRODUCTS. BY INITIAL USE OF PARAMOUNT PRODUCT YOU ARE CONSENTING TO BE BOUND BY THE FOLLOWING WARRANTY TERMS AND CONDITIONS. THE WARRANTY PERIODS COMMENCE ON THE INVOICE DATE OF THE ORIGINAL PURCHASE. LABOR COVERED DURING WARRANTY PERIODS REQUIRES PRIOR AUTHORIZATION OF PARAMOUNT. - Page 20 TRUE Fitness 865 Hoff Road O'Fallon, MO 63366 Phone: 1-800-426-6570 www.truefitness.com...
