True MP 3.0 Assembly Manual
  1. Manuals
  2. Brands
  3. True Manuals
  4. Fitness Equipment
  5. MP 3.0
  6. Assembly manual

True MP 3.0 Assembly Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MP 3.0 - MP 3.5 - MP 4.0
A
SSEMBLY
M
ANUAL
AM-MP-3-0
022520

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP 3.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for True MP 3.0

Summary of Contents for True MP 3.0

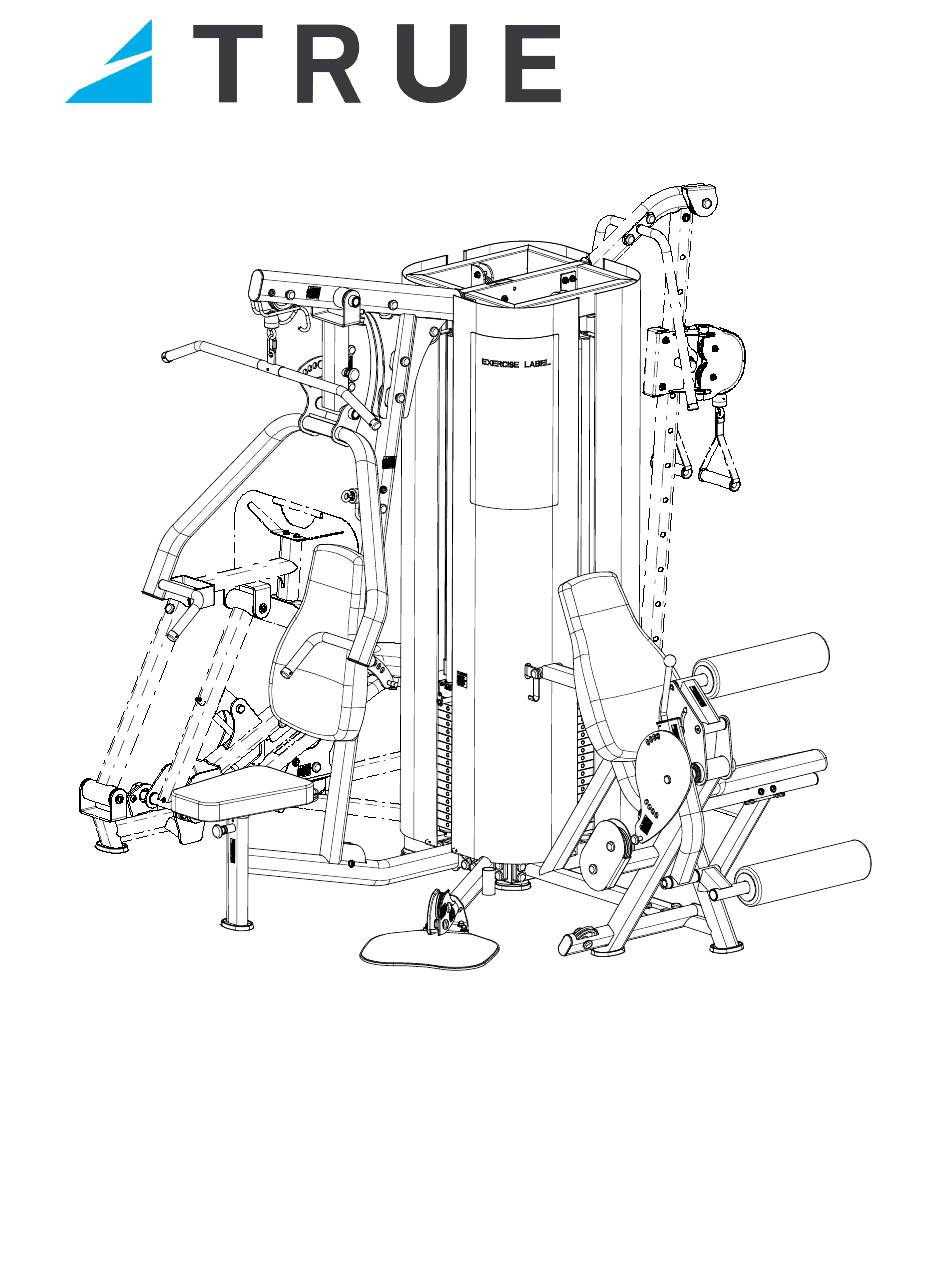

  • Page 1 MP 3.0 - MP 3.5 - MP 4.0 SSEMBLY ANUAL AM-MP-3-0 022520...
  • Page 2 Технические характеристики, особенности и программного обеспечения могут быть изменены без предварительного уведомления. Для получения самой последней на сегодняшний день руководство по эксплуатации пожалуйста, посетите www.truefitness.com .Для документов на другие языки, пожалуйста, посетите www.truefitness.com/resources/document-library/ Page # 2 of 64 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 3 The proud manufacturing tradition of quality and the culture of innovation at TRUE have given rise to a full line of extraordinary cardio and strength equipment. As a result, people all over the world are benefiting from the TRUE experience.

  • Page 4: Table Of Contents

    NSTALL THE ....................... 57 ENERAL ROCEDURE ABEL ..................... 58 ABLE OLUMN ROCEDURE ABEL ..........................59 ARNING ABELS ............................60 ERVICE ......................61 ARAMOUNT IMITED ARRANTY Page # 4 of 64 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 5: Afety

    Be certain members are instructed on how to operate and adjust all safety mechanisms. Page # 5 of 64 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 6 3. Install this piece of equipment on a solid level surface that does not deviate more then 1/8” over a 10’ distance (or as defined and required by local building and architectural codes. 4. TRUE strongly recommends that all equipment be anchored to the floor to prevent movement and increase stability.
  • Page 7 4. Replace any warning label at first sign of wear. Labels and the Facility Safety Sign may be obtained from Paramount free of charge. ENGTH EASURING UIDE FLAT HEAD SCREW BUTTON HEAD SCREW HEX HEAD SCREW SOCKET HEAD SCREW Page # 7 of 64 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 8: General Care And Maintenance

    Retain these instructions for future reference. If you have any questions, do not hesitate to contact your Paramount dealer or Paramount Fitness Corp. at (800)721-2121 or nasales@paramountfitness.com. Page # 8 of 64 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 9: Dimensions And Weight

    122 LBS/FT [595 KG/M 3 X 250 lbs. 1344 LBS [610 KG] 129 LBS/FT [630 KG/M MAXIMUM USER WEIGHT IS 300 LBS. (136 KG.) Page # 9 of 64 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 10 1 X 170 lbs. and 2 X 250 lbs. 1350 LBS [612 KG] 73 LBS/FT [357 KG/M 3 X 250 lbs. 1430 LBS [649 KG] 77 LBS/FT [356 KG/M Page # 10 of 64 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 11 1 X 170 lbs. and 3 X 250 lbs. 1664 LBS [755 KG] 91 LBS/FT [444 KG/M 4 X 250 lbs. 1744 LBS [791 KG] 95 LBS/FT [464 KG/M Page # 11 of 64 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 12: Preparation

    Hardware and components are indicated with a balloon. Refer to the hardware tables that accompany each step for corresponding size and type. Be sure all hardware is tight before using the machine. Page # 12 of 64 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 13: Upright Carton Contents

    Strength MP 3.0, 3.5, & 4.0 PRIGHT ARTON ONTENTS 1 Page # 13 of 64 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 14 Strength MP 3.0, 3.5, & 4.0 PRIGHT ARTON ONTENTS 2 Included in this box: -All Hardware -Assembly Manual -Weight Stack Labels Page # 14 of 64 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 15: Chest Press Carton Contents

    Strength MP 3.0, 3.5, & 4.0 HEST RESS ARTON ONTENTS 1 Page # 15 of 64 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 16: Leg Ext /Curl Carton Contents

    Strength MP 3.0, 3.5, & 4.0 ARTON ONTENTS Tagged for use only on Leg Ext/Curl weight stack. Page # 16 of 64 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 17: Cable Column Carton Contents

    Strength MP 3.0, 3.5, & 4.0 ABLE OLUMN ARTON ONTENTS Page # 17 of 64 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 18: Accessories And Weights

    10 LB. Weight Plate Box Part Number: B1603 Part Number: B1602 Comprised of Comprised of (4) x 15lb. Weight Plates (4) x 10 lb. Weight Plates Page # 18 of 64 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 19 6. Install the rubber feet Insert the pre-assembled cables as far as possible Threaded into the upright as cable end. shown. Page # 19 of 64 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 20: Tep Ssemble The

    3. Be sure that both the Seat pad and Back pad can adjust easily. Note: The adjustment slots are in front Page # 20 of 64 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 21 First, place the slot in the plate over the stop peg, then rotate the arm down to line up the axle housings. TO INSTALL ARM Installation may require two people. Page # 21 of 64 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 22 This section of cable is pre-assembled. Attach cable after weight stack is installed. Page # 22 of 64 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 23 Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 4: I NSTALL HEST RESS ABLE 1. Route the Chest Press cable as shown. 3/16” CABLE 2. Install the pulleys and associated hardware as you go along. 3.
  • Page 24 Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 5: I NSTALL THE ULLEY ABLE 1. Shown on this page is the general routing of the Low Pulley cable (P13- 0169). The following pages show sections in greater detail.
  • Page 25 Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 5: I NSTALL THE ULLEY ABLE 1. Route the Low Pulley cable as shown. 2. Install the pulleys and associated hardware as you go along. 3.
  • Page 26 Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 5: I NSTALL THE ULLEY ABLE P05-1000 1. Route the cable out the bottom of the upright. Attach the pre-installed wire tie to the cable bolt by wrapping it around the bolt threads, and pull the cable through the Low Pulley tube.
  • Page 27 Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 5: I NSTALL THE ULLEY ABLE 1. Disassemble the cable end piece as shown below. 2. Route the Low Pulley cable as shown on page 17 through 19. 3.
  • Page 28 Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 6: A SSEMBLE THE RAME 1. Loosely assemble ALL hardware shown in this step. DO NOT TIGHTEN THE HARDWARE. 2. Assemble rubber foot. Do not tighten.

  • Page 29: Tep Ssemble The

    Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 7: A SSEMBLE THE RONT RAME 1. Loosely assemble ALL hardware shown in this step. 2. After aligning all component edges and surfaces, tighten the hardware. Also tighten the hardware from the previous step.

  • Page 30: Pad

    Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 8: A SSEMBLE HIGH 1. Insert the Axle into the Thigh Pad Frame and then position it on the frame. 2. Insert the bolt through both the frame and the axle, then assemble and tighten the hardware.
  • Page 31 Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 9: A SSEMBLE THE DJUSTMENT 1. Assemble the Adjustment Cam and the Adjustment Arm as shown. 2. Secure the components in place using the 1”...
  • Page 32 Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 10: A SSEMBLE THE ADS AND ANDLES 1. Assemble the Back Pad Frame and Back Pad as shown. 2. Loosely assemble the Handle to the frame using the 4”...

  • Page 33: Step 11: Install Leg Ext

    Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 11: I NSTALL ABLE 1. Shown on this page is the general routing of the Leg Ext/Curl cable. The following pages show sections in greater detail. 2.
  • Page 34 Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 11: I NSTALL THE ABLE 1. Assemble the Pulleys, Hardware, and Cable as shown. 3/16” CABLE 2. Install the pulleys and associated hardware as you go along. 3.
  • Page 35 Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 11: I NSTALL THE ABLE 1. Route the Leg Extension/Curl cable as shown. 3/16” CABLE 2. Install the pulleys and associated hardware as you go along. 3.
  • Page 36 MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 STOP! If you have purchased the MP 3.0 which includes the Cable Column station, please continue with the installation process on the next page. If you have purchased the MP 3.5 which includes the Leg Press station, please refer to the MP3.5 &...

  • Page 37: Step 12: Cable Column

    Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 12: C ABLE OLUMN SSEMBLY 1. The cable column will attach only on the opposite side of the upright frame to the chest press, as shown in the overhead view.
  • Page 38 Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 12: C ABLE OLUMN SSEMBLY 1. Loosely assemble ALL hardware shown in this step. 2. After aligning all component edges and surfaces, tighten the hardware. NOTE THE COLUMN ORIENTATION.
  • Page 39 Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 12: C ABLE OLUMN SSEMBLY 1. Loosely assemble ALL hardware shown in this step. 2. After aligning all component edges and surfaces, tighten the hardware. Page # 39 of 64 T T r r ue Fi ue Fit t n n es ess T...
  • Page 40 Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 12: C ABLE OLUMN SSEMBLY 1. Loosely assemble ALL hardware shown in this step. 2. After aligning all component edges and surfaces, tighten the hardware. Page # 40 of 64 T T r r ue Fi ue Fit t n n es ess T...
  • Page 41 Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 12: C ABLE OLUMN SSEMBLY 1. Loosely assemble ALL hardware shown in this step. 2. After aligning all component edges and surfaces, tighten the hardware. Page # 41 of 64 T T r r ue Fi ue Fit t n n es ess T...
  • Page 42 Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 12: C ABLE OLUMN SSEMBLY 1. Be sure to assemble the shroud holders, washers and bumpers before adding weights. 2. The cap plate / selector bar will have the pulley housing pre-assembled from the factory.
  • Page 43 Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 12: C ABLE OLUMN SSEMBLY 1. Shown on this page is the general routing of the Cable Column cable (P13-0217). The following pages show sections in greater detail.
  • Page 44 Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 12: C ABLE OLUMN SSEMBLY 1. Route the Cable Column cable as shown. 2. Install the associated pulleys and hardware as you go along. 3.
  • Page 45 Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 12: C ABLE OLUMN SSEMBLY 1. Route the Cable Column cable as shown. 2. Install the associated pulleys and hardware as you go along. 3.
  • Page 46 Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 12: C ABLE OLUMN SSEMBLY 1. Route the Cable Column cable as shown. 2. Install the associated pulleys and 3/16” CABLE hardware as you go along. 3.
  • Page 47 Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 12: C ABLE OLUMN SSEMBLY 1. Route the Cable Column cable as shown. 3/16” CABLE 2. Install the pulleys and associated hardware as you go along. 3.
  • Page 48 Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 12: C ABLE OLUMN SSEMBLY 1. Route the cable as shown. 2. Install the pulleys and associated hardware as you go along. 3. After the cable is routed, attach the cable end assy as shown on page 24.

  • Page 49: Tep Nstall The

    Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 13: I NSTALL THE HEST RESS EIGHT TACK 1. Be sure to assemble the shroud holders, washers and bumpers before adding weights. 2. Be sure to install the correct weight plate size for this station.
  • Page 50 Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 13: I NSTALL THE HEST RESS EIGHT TACK 1. After installing the Chest Press weight stack, an adjustment of the Chest Press Arm Stop position may be needed. This Chest Press Stop Retaining Nut adjustment will accommodate for any...

  • Page 51: Ext /Curl Weight Stack

    Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 14: I NSTALL THE EIGHT TACK To Attach Cable. 1” (25mm) This hardware will be installed 10 lb. plates later. IMPORTANT If you are using 10 lb. plates on this weight stack, pin two (2) plates for counter...

  • Page 52: Step 15: Assemble The Step 16: Assemble The

    Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 15: A SSEMBLE THE RONT HROUD 1. Place the front shroud with the Procedure Label into the shroud holders at the base of the upright as shown. 2.

  • Page 53: Leg Ext /Curl Brace

    Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 16: A SSEMBLE THE RACE 1. After the front shroud is assembled, the LELC storage hook will attach to both the LELC frame and upright frame.

  • Page 54: Step 17: Assemble The

    Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 17: A SSEMBLE THE HROUDS 1. Assemble the Shrouds as shown. Be sure to assemble the shrouds with the Paramount Logo labels in the indicated positions 2.

  • Page 55: Tep Lace The

    Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 18: P LACE THE EIGHT TACK ABELS 1. Apply the correct weight stack label to LBL-WGT-170 LABEL, WGT STK 170 # the shroud next to each weight stack. 2 LBL-WGT-250 LABEL, WGT STK 250 # 2.
  • Page 56 Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 NSTALL THE ABLE OLUMN ABEL 1. Apply the Cable Column Procedure label to the shroud as shown 2. Locate the sticker on the shroud so that it is about 3/4”...

  • Page 57: Tep Nstall The

    Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 19: I NSTALL THE Install plastic Bolt covers (C-955) over all the exposed screws and fasteners on the machine. They will snap on to the Bolt Cover Base (C-955A) which was installed earlier.

  • Page 58: General Procedure Label

    Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 ENERAL ROCEDURE ABEL This is the Procedure Label required for all MP combinations. If this label is missing or becomes damaged, Paramount will replace it free of charge.

  • Page 59: Cable Column Procedure Label

    Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 ABLE OLUMN ROCEDURE ABEL This is the Cable Column Procedure Label required for the MP3.0 and MP4.0 combinations. If this label is missing or becomes damaged, Paramount will replace it free of...

  • Page 60: Warning Labels

    Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 Warning Labels The following are the Warning labels required for the MP3.0, MP3.5 and MP4.0. If any of these tables are missing or become damaged, Paramount will replace them free of charge.

  • Page 61: Service

    Strength Strength MP 3 3 .0 .0, , 3 3 .5 .5, & 4.0 , & 4.0 O W T O B T A I N E R V I C E For warranty service, contact an Authorized Paramount Dealer or a Paramount Customer Service representative at 1-800-721-2121 or 1-323-721-2121.

  • Page 62: Paramount Limited Warranty

    Hours of operation 8:30am - 5:00 pm CST workmanship for a 10 years. The frame is warranted for labor and freight (for parts shipped from TRUE) for one year from date of purchase. * This limited warranty on structural frame does not include paint or coatings.
  • Page 63 DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. TRUE within 30 days of purchaser’s receipt of this Product. The serial number must be intact on the Product for this Limited Warranty to be valid.
  • Page 64 If you prefer to mail your warranty card, have the owner of the product complete the information below and return it to TRUE Fitness within 30 days from the date of equipment installation.
