True SM1050 Owner's Manual

20 vertical position adjustments for 210 lb. weight stack
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SM1050
Quick Fit
OWNER'S
MANUAL
Model # SM1050
Revision 102017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM1050 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for True SM1050

Summary of Contents for True SM1050

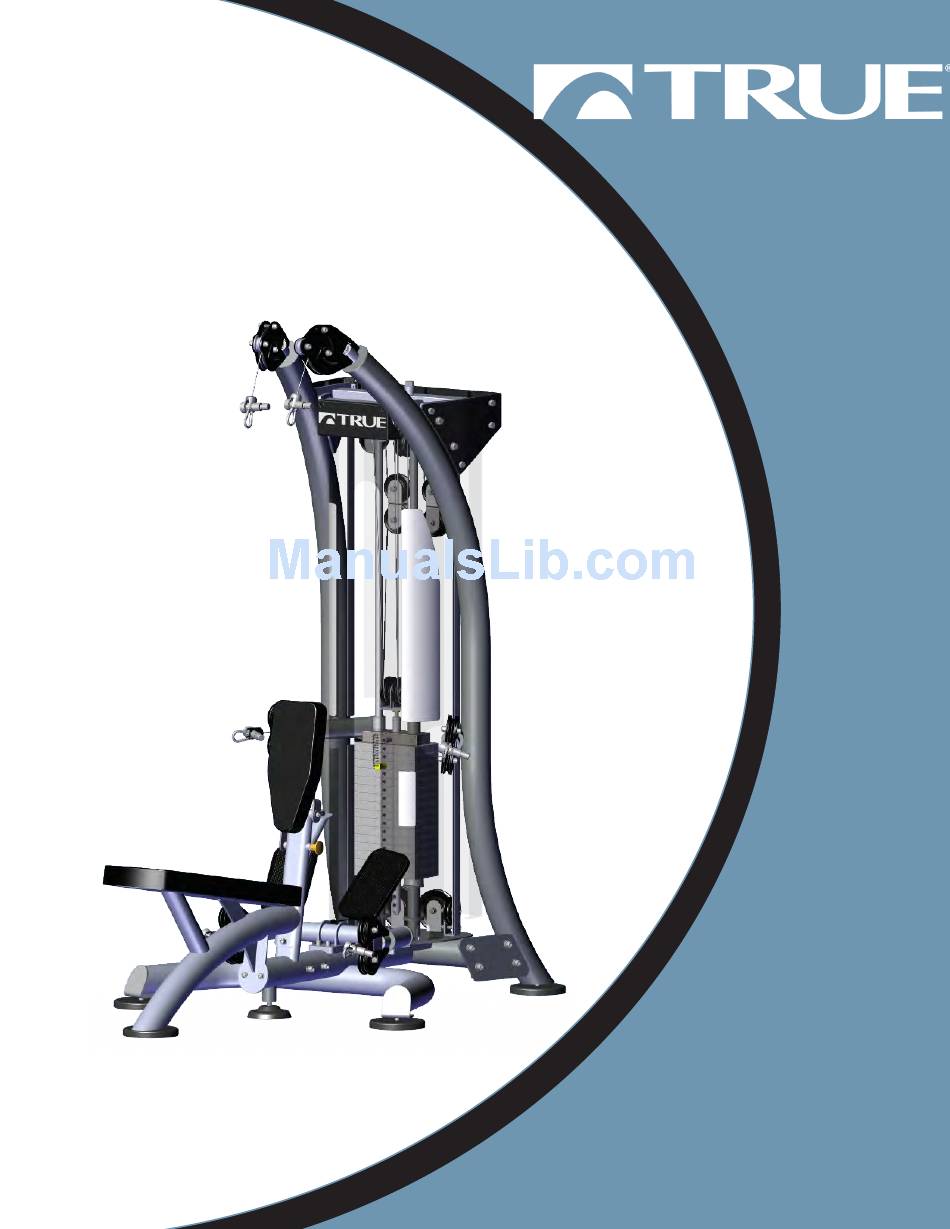

  • Page 1 SM1050 Quick Fit OWNER’S MANUAL Model # SM1050 Revision 102017...
  • Page 2 Технические характеристики, особенности и программного обеспечения могут быть изменены без предварительного уведомления. Для получения самой последней на сегодняшний день руководство по эксплуатации пожалуйста, посетите www.truefitness.com .Для документов на другие языки, пожалуйста, посетите www.truefitness.com/resources/document-library/ Page # 2 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 3 The proud manufacturing tradition of quality and the culture of innovation at TRUE have given rise to a full line of extraordinary cardio and strength equipment. As a result, people all over the world are benefiting from the TRUE experience.
  • Page 4 CHAPTER 4: CUSTOMER SERVICE ..........................40 • CONTACTING SERVICE: ......................40 • CONTACTING SALES: .......................40 • REPORTING FREIGHT OR PARTS DAMAGE: ..............41 CHAPTER 5: ADDITIONAL INFORMATION: ......................42 Page # 4 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 5: Chapter 1: Safety Instructions

    9. If the machine appears damaged or inoperable, contact a facility staff member to place an “OUT OF ORDER, DO NOT USE” sign on the machine until it is repaired. Only use TRUE supplied replacement components to service this machine.
  • Page 6 3. Install this piece of equipment on a solid level surface that does not deviate more than 1/8” over a 10’ distance (or as defined and required by local building and architectural codes.) 4. TRUE strongly recommends that all equipment be anchored to the floor to prevent movement and increase stability.
  • Page 7 • Frames and Lifting Arms: Inspect weekly for integrity and function. Replace any component at first signs of wear. Use only TRUE supplied components. 4. Replace any warning label at the first sign of wear. Labels and the facility safety sign may be obtained from TRUE.
  • Page 8 Be sure all hardware is tight before using the machine. Retain these instructions for future reference. If you have any questions, do not hesitate to contact your TRUE dealer or TRUE Fitness Technology at (800)883-8783 or service@truefitness.com. Page # 8 of 44...

  • Page 9: Commerical Maintenance Schedule

    CLEAN: Guide rods and lubricate with a teflon lubricant if equipped. CLEAN: Upholstery LUBRICATE: Pivot bearings and linear bearings. REPLACE: Cables if equipped. Page # 9 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 10: Chapter 2: Assembly Guide

    Weight of assembled machine: 594 lb. (270 kg.) with 210 lb. weight stack. • Floor loading: • For 210 lb. weight stack it is 35 lb/ft2 (171 kg/m 44" 79” 84” Page # 10 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 11: Required Tools

    External Snap Ring Pliers, 90 degrees Step Ladder COMPLIANCES: This equipment complies with all fitness product standards. For a complete list of compliances, please visit www. TrueFitness.com. Page # 11 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 12 Strength SM1050 CHAPTER 2: ASSEMBLY GUIDE WORKOUT PLACARD: Page # 12 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 13: Pre-Assembly Checklist

    LBL-SM2000-160 QF WEIGHT PLATE DECAL SM-2000PH100X TOP PULLEY HOUSING SM-2000PH200X PULLEY HOUSING ASSEMBLY SM-1050PH500X FLOATING PULLEY HOUSING SM-1050BR050 PULLEY HOUSING ON TOP PLATE, ASSEMBLY Page # 13 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 14 SPACER SLEEVE 32mm X 25.5mm X 4mm SM-2000SP000X SELLECTOR PIN 10mm X 121mm SM-1050SB000X SEAT BACK BASE ASSEMBLY SM-1050SF000X SEAT FRAME WELDMENT SM-1050PD002X SEAT PAD ASSEMBLY Page # 14 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 15: Assembly Steps

    Note: Do not remove the cable pull string located under the pulley removed in this step. It will be used for cable routing in Step 10B (Cable Routing). Page # 15 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 16 FLAT WASHER 13.57mm ID X identified hardware. 25.4mm OD X 2.8mm THICK C1103 SOCKET HEAD CAP SCREW M12 X 1.75 X 25mm SM-1050MF000X MAIN FRAME BOTTOM ASSEMBLY Page # 16 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 17 M12 X 1.75 X 25mm the right side frame assembly. SM-1050SF400X LEFT SIDE FRAME ASSEMBLY This will be reinstalled in Step 10B (Cable Routing). Page # 17 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 18 M12 X 1.75 X 25mm C1092 CURVED WASHER 12.5mm ID X 24mm OD X 2mm THICK SM-2000SB000X SEAT BACK BASE ASSEMBLY SM-1050SB100X SEAT BACK FRAME ASSEMBLY Page # 18 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 19 SM-2000LF000X LEVELING FOOT ASSEMBLY SM-2000LF100X LEVELING FOOT ASSEMBLY Note: After completing this step, place the machine in the upright position for the remaining assembly steps. Page # 19 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 20 SOCKET HEAD CAP SCREW M10 X 1.5 X 25mm SD0243 FLAT WASHER 10.5mm ID X 20mm OD X 2mm THICK SM-1050FB000X FOOT PLATE ASSEMBLY Page # 20 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 21 SOCKET HEAD CAP SCREW M10 X 1.5 X 25mm SD0214 SOCKET BUTTON HEAD SCREW M10 X 1.5 X 20mm SM-1050SF000X SEAT FRAME WELDMENT SM-2000LF000X LEVELING FOOT ASSEMBLY Page # 21 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 22 Ensure that the snap-link opens and closes easily and is fully engaged when closed. Replace the snap-link as needed. Truefitness.com / 800.426.6570 / 636.272.7100 Page # 22 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 23 Next, slide the pulley housing assembly over the shaft. Lastly, secure the retaining ring onto the designated shaft groove through the side space of the pulley housing assembly. Page # 23 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 24 W/ BALL ENDS Side Frame Assembly) and Step 3 (Left SM-2000CL000X END OF CABLE LINKAGE Side Frame Assembly) to the original location as shown below. Page # 24 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 25 Attach the left cable end assembly as shown in Step 10A (Cable Ends and Pulley Housings). Page # 25 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 26 Align the dowel pins on the main frame bottom assembly with the corresponding holes on the front shroud to secure the front shroud in place. Page # 26 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 27 Position the dowel pins on the main frame bottom assembly with the corresponding holes on the back shroud. Secure the front and back shrouds in place using the identified hardware. Page # 27 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 28 LOCK WASHER 11mm ID X 16mm OD X 2.6mm THICK SD0243 FLAT WASHER 10.5mm ID X 20mm OD X 2mm THICK SM-1050CL000 HANDLE COLUMN Page # 28 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 29 SM-2000PL001 RIGHT PLASTIC hardware. SM-2000PL002 LEFT PLASTIC Secure the remaining front, left, and right plastics to the top frame assembly using the identified hardware. Page # 29 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 30 FLAT WASHER 11mm ID X 20mm OD X 2.3mm THICK C1098 SOCKET BUTTON HEAD SCREW M10 X 1.5 X 70mm SM-1050PD001X SEAT BACK PAD Page # 30 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 31 M10 X 1.5 X 35mm SD0246 LOCK WASHER 11mm ID X 16mm OD X 2.6mm THICK SD0243 FLAT WASHER 10.5mm ID X 20mm OD X 2mm THICK Page # 31 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 32 LONG HANDLE SM-2000HD000X SHORT HANDLE SM-2000TS001X THIGH STRAP Attach the weight stack and other labels SM-2000RH000X ROW HANDLE to the front shroud as shown below. Page # 32 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 36: Chapter 3: Care & Maintenance

    The following items are critical to the safety of users and maintenance staff as well as ensuring the optimum performance of the machines. These inspections should be performed each day before the equipment is subject to use. TRUE Fitness is not responsible for performing or scheduling regular maintenance or inspections.

  • Page 37: Other Scheduled Preventive Maintenance

    CAUTION: Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Fitness Warranty. Never pour or spray liquids on any part of the equipment. Allow the equipment to dry completely before using.

  • Page 38: Cable Inspection & Maintenance

    If any of these conditions are apparent, the machine should immediately be taken out of service and repaired. Be sure to use only cables supplied by TRUE Fitness. DO NOT use cables that have fittings attached with hand- crimp tools.
  • Page 39 Ensure that the snap-link opens and closes easily and is fully engaged when closed. Replace the snap-link as needed. Page # 39 of 44 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com Truefitness.com / 800.426.6570 / 636.272.7100...

  • Page 40: Chapter 4: Customer Service

    HOURS OF OPERATION: 8:30 A.M. - 5:00 P.M. CST E-MAIL: service@truefitness.com CONTACTING SALES: Interested in TRUE products? Please contact us with any sales or product inquires so that we may direct you to the appropriate sales representative to answer your questions. TRUE FITNESS HOME OFFICE 865 HOFF ROAD ST.

  • Page 41: Reporting Freight Or Parts Damage

    Obvious damage to external packaging / internal product. Please refuse the shipment and it will be returned to TRUE Fitness by the carrier. Contact the TRUE Fitness customer support team by calling 800.883.8783 or sales support team by calling 800.426.6570 Monday-Friday during normal hours of operation to notify us that the shipment has been refused.

  • Page 42: Chapter 5: Additional Information

    Frame: The frame is warranted for defects in material and workmanship for a 10 years. The frame is warranted for labor and freight (for parts shipped from TRUE) for one year from date of purchase. * This limited warranty on structural frame does not include paint or coatings.
  • Page 43 DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. TRUE within 30 days of purchaser’s receipt of this Product. The serial number must be intact on the Product for this Limited Warranty to be valid.
  • Page 44 If you prefer to mail your warranty card, have the owner of the product complete the information below and return it to TRUE Fitness within 30 days from the date of equipment installation.
