C
ONTENTS
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Important User Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Manufacturer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Required Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Parts and Fastener List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
Please read and understand these Assembly Instructions before working with or using the Guitar
Mobile Storage Rack.
If you need additional information about the Guitar Mobile Storage Rack, contact Wenger
Corporation using the information below.
©Wenger Corporation 2009
Wenger Corporation, 555 Park Drive, P.O. Box 448, Owatonna, Minnesota 55060-0448
Questions? Call.....USA: (800) 733-0393 • International (call collect): (507) 455-4100 • www.wengercorp.com

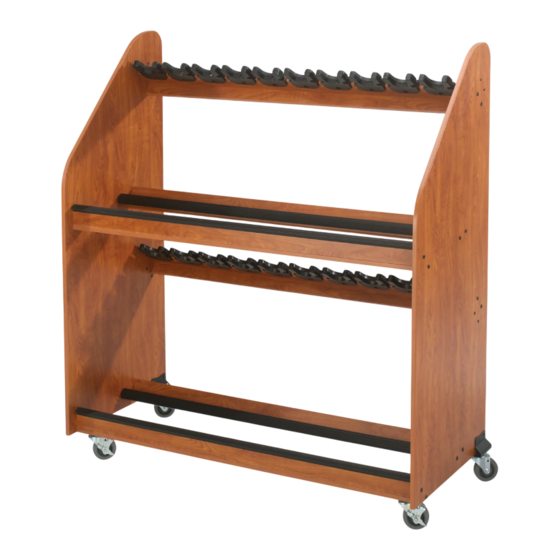

Guitar Mobile Storage Rack
Printed in China 011/09
Assembly Instructions
Part #251A150-01
Advertisement
Table of Contents
Related Manuals for Wenger 148J006
Summary of Contents for Wenger 148J006
- Page 1 Assembly ........5-8 Please read and understand these Assembly Instructions before working with or using the Guitar Mobile Storage Rack. If you need additional information about the Guitar Mobile Storage Rack, contact Wenger Corporation using the information below. ©Wenger Corporation 2009...
- Page 2 This is your sole remedy for breach of this warranty. Should you have a question or problem with any Wenger product, don’t hesitate to call, even if the product is past warranty. It’s important to us that all our customers be satisfied.
- Page 3 Wenger Corporation. Wenger Corporation does not assume any responsibility for any errors that may appear in this manual. In no event will Wenger Corporation be liable for technical or editorial omissions made herein, nor for direct, indirect, special, incidental, or consequential damages resulting from the use or defect of this manual.
- Page 4 EQUIRED OOLS The following tools are required to assemble a Guitar Mobile Storage Rack. Phillips Screwdriver #2 • " Allen Wrench (provided) • Straight Blade Screwdriver • EFORE SSEMBLY Remove components from packaging carefully. • Keep hardware together until needed for assembly. •...
- Page 5 SSEMBLY To begin the assembly of the Guitar Mobile Storage Rack: 1. Remove the four Lower Cross Panels (#2), four Stiffeners (#3), two Yoke Stiffeners (#5), two Yoke Mount Panels (#8) and the hardware pack from the package. 2. On a level surface with free access along one side, stand the Lower Cross Panel (#2) upright as shown with the smaller through holes along the lower edge.
- Page 6 SSEMBLY CONTINUED 7. Insert the Cross Dowels (#11) into the three cross holes in one of the Cross Panel/Stiffener assemblies. There are three holes on each end of the assembly as shown in figure C. Note: The slot in the metal cross dowel indicates the through hole for the machine screw and should be aligned with a screwdriver to assist starting the threads of the machine screw by hand.
- Page 7 SSEMBLY CONTINUED 12. To assemble the remainder Cross Panel/Stiffener assemblies to the rack; a. Repeat step 7. b. Using Machine Screws 1/4-20 x 3.15 (#13), assemble the other Cross Panel/Stiffener assembly to the End Panels (#1) shown. (see figure E) Cross Panel/Stiffener Assembly figure E 13.
- Page 8 SSEMBLY CONTINUED 14. Clear the area behind the Guitar Mobile Rack and place corrugation, cloth or carpet down for protection. 15. With a minimum of two people, gently tip the Guitar Mobile Rack onto it’s back. 16. Install the two Swivel Casters with the Brake (#12) carefully into the sockets in the bottom of the Caster (see figure G) Panel (#4) on the front side of the Guitar Mobile Rack.
