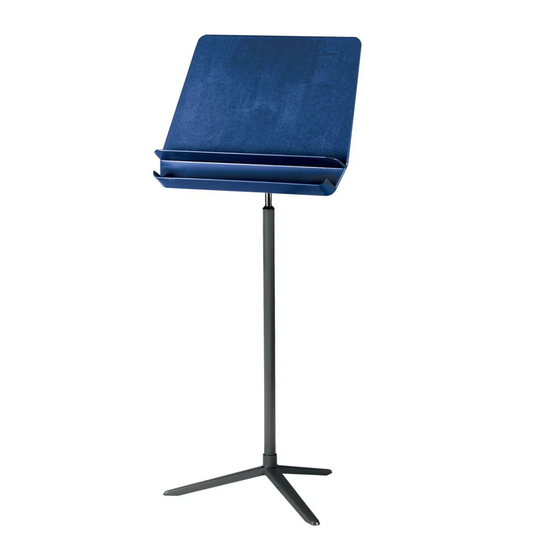

Assembly and Owner's Instructions
Stand
Preface
Stand
®
®
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Base and Slider Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Desk and Slider Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Music Stands
Preface
Conductor's Stand
®
Part #237A113-11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bravo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wenger Bravo

Summary of Contents for Wenger Bravo

  • Page 1 Visit the Music Stands web page at wengercorp.com for more information. Note: Please read and understand these instructions before assembling or using. Note: If you need additional information, contact Wenger Corporation using the information below. ©Wenger Corporation 2018 Printed in USA 2018-07 Part #237A113-11 Wenger Corporation, 555 Park Drive, P.O.
