Camcorder or Video
Game Equipment
Rear of TV
1
3
S VIDEO
VIDEO
L
(MONO)
AUDIO
R
VIDEO IN
30

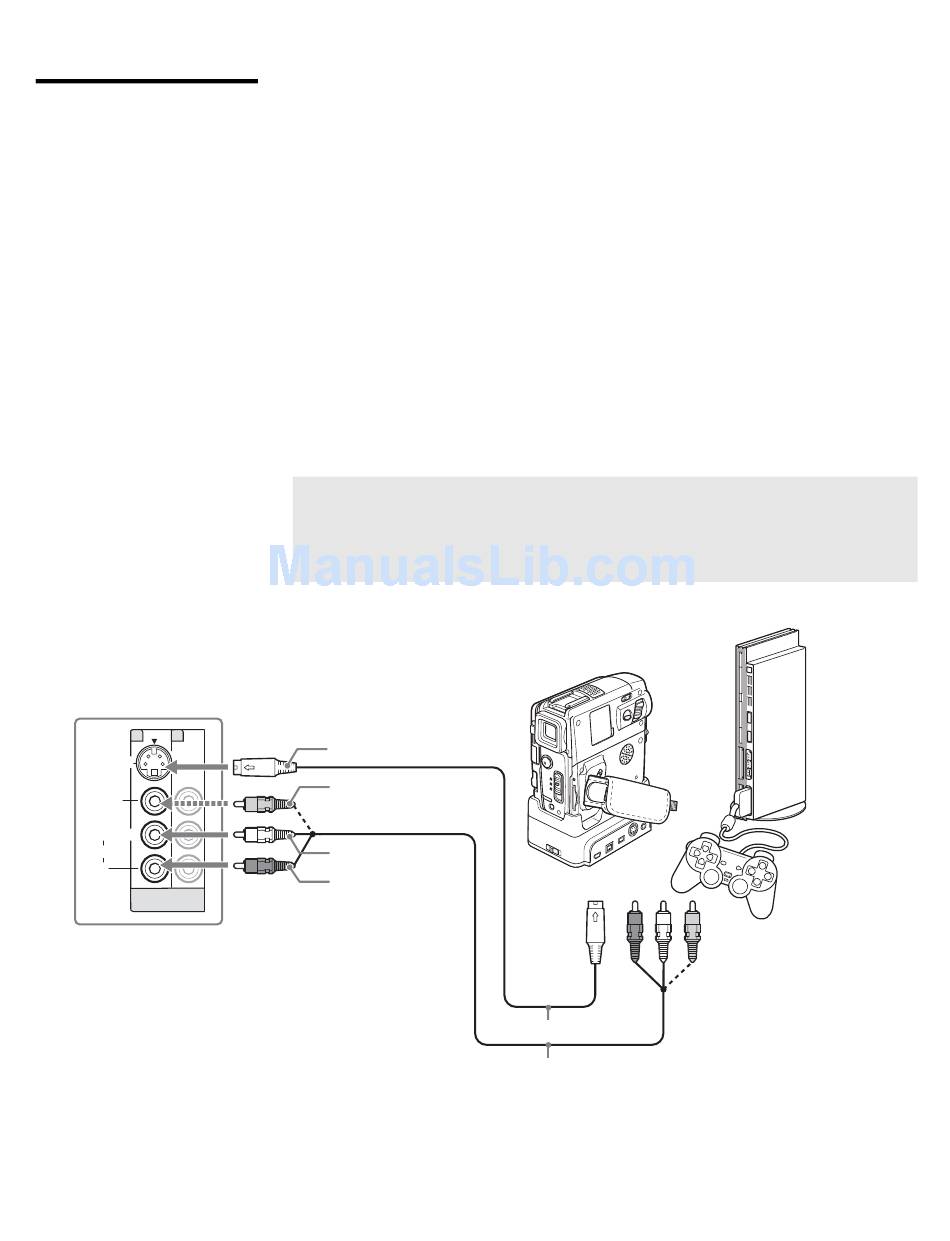

You can connect a camcorder or Video Game Equipment to your TV. For
easy connection, use VIDEO IN 2 on the left side of the TV. To use the S
VIDEO jack instead of the VIDEO jack (yellow), use VIDEO IN 1 on the
rear panel of the TV.
To connect a camcorder or Video Game Equipment to VIDEO IN 1
Use A/V and S VIDEO cables to connect the AUDIO and S VIDEO OUT
jacks on the camcorder or Video Game Equipment to the AUDIO and
S VIDEO IN jacks on the rear panel of the TV, as shown below.
To connect a camcorder or Video Game Equipment to VIDEO IN 2
Select Off in the Video 2 (Component) option in the Setup settings (see
page 61). Use an A/V cable to connect the A/V output jacks on the
camcorder or Video Game Equipment to the A/V input jacks on the left side
of the TV.
✍
If your camcorder is not equipped with S VIDEO, use a VIDEO
cable (yellow) instead of the S VIDEO cable.
✍
If you have a mono camcorder, connect its audio output jack to the
TV's L MONO audio input jack.
S VIDEO
VIDEO
AUDIO-L
AUDIO-R
Video Game Equipment
Camcorder
or
To
S VIDEO
jack
S VIDEO cable
A/V cable
To A/V output jacks
