Figure 2-12 Evaluation Board Schematic For Xpcw1003100K, Part 4 Of 7 - Lantronix xPico Wi-Fi Series User Manual

2: Evaluation Kit

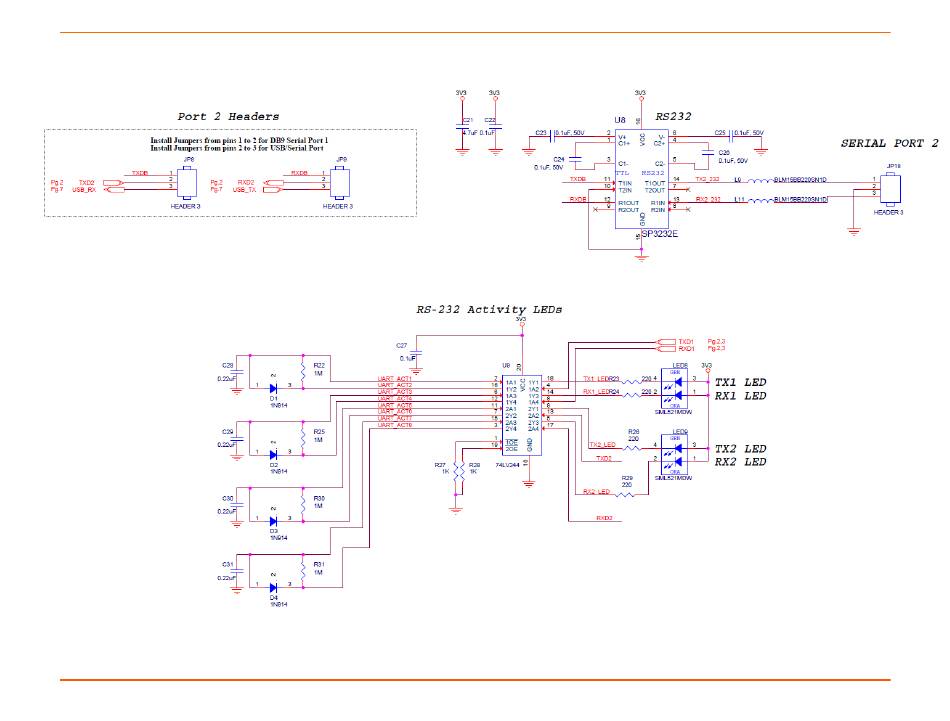

Figure 2-12 Evaluation Board Schematic for XPCW1003100K, Part 4 of 7

xPico® Wi-Fi® Embedded Device Server Evaluation Kit User Guide 26
