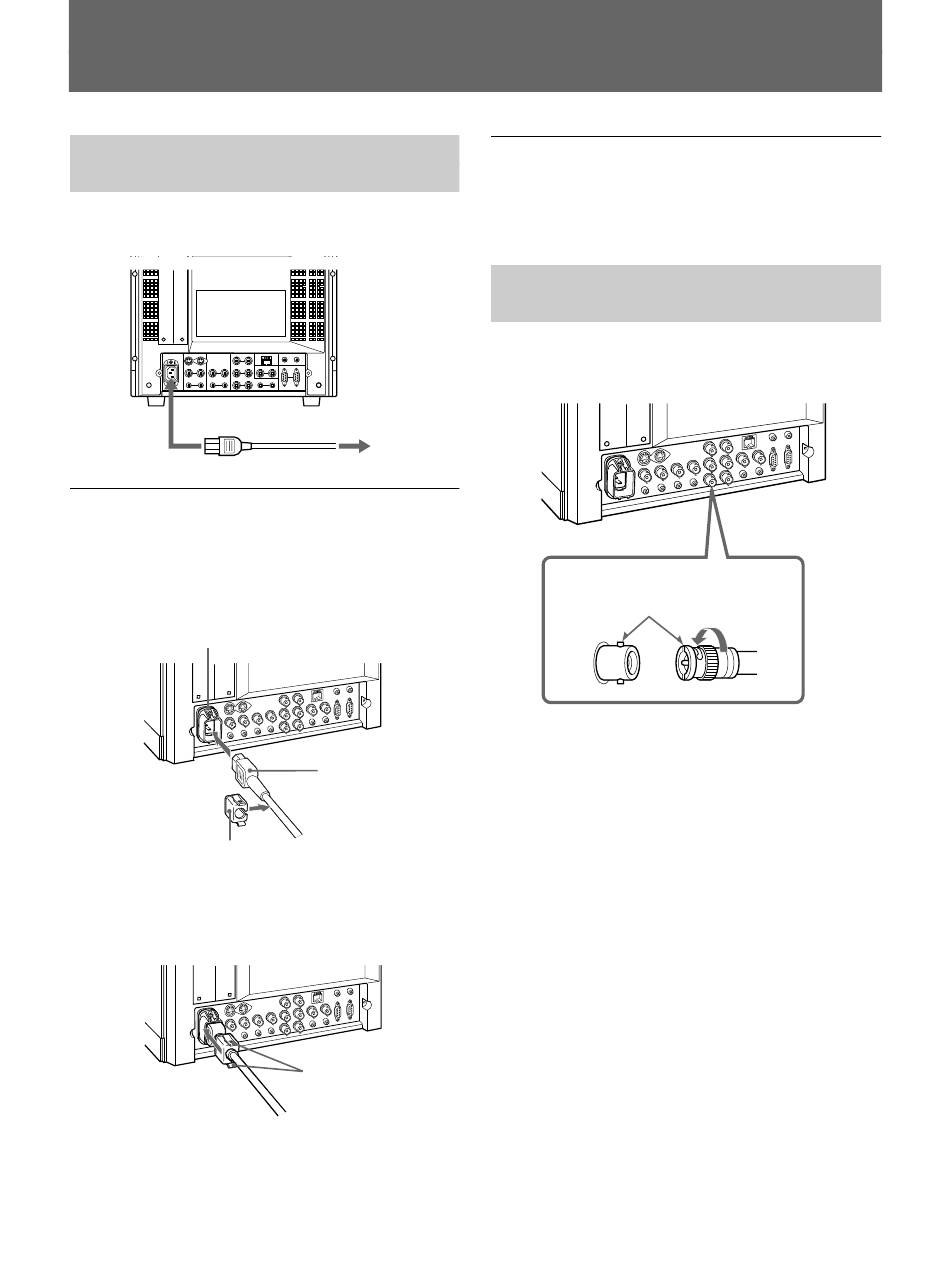

Connections

How to Connect the AC Power
Cord
Connect the AC power cord (supplied) to the AC IN
socket on the rear panel and to a wall outlet.
to AC IN
To connect an AC power cord securely
with AC plug holder
1
Plug the power cord into the AC IN socket. Then,
attach the AC plug holder (supplied) on top of the
AC power cord.
AC IN socket
AC plug holder
2
Slide the AC plug holder over the cord until it
locks.
to a wall outlet
AC power plug
Lock levers
To remove the AC power cord
Pull out the AC plug holder while pressing the lock
levers.
How to Connect a Cable to a
BNC Connector
Connect a coaxial cable with the BNC plugs to the
BNC connectors on the rear panel as illustrated below.
Insert the BNC plug into the connector on
the rear panel, matching the slit and pin,
and turn the BNC plug clockwise to
secure the connection.
7
