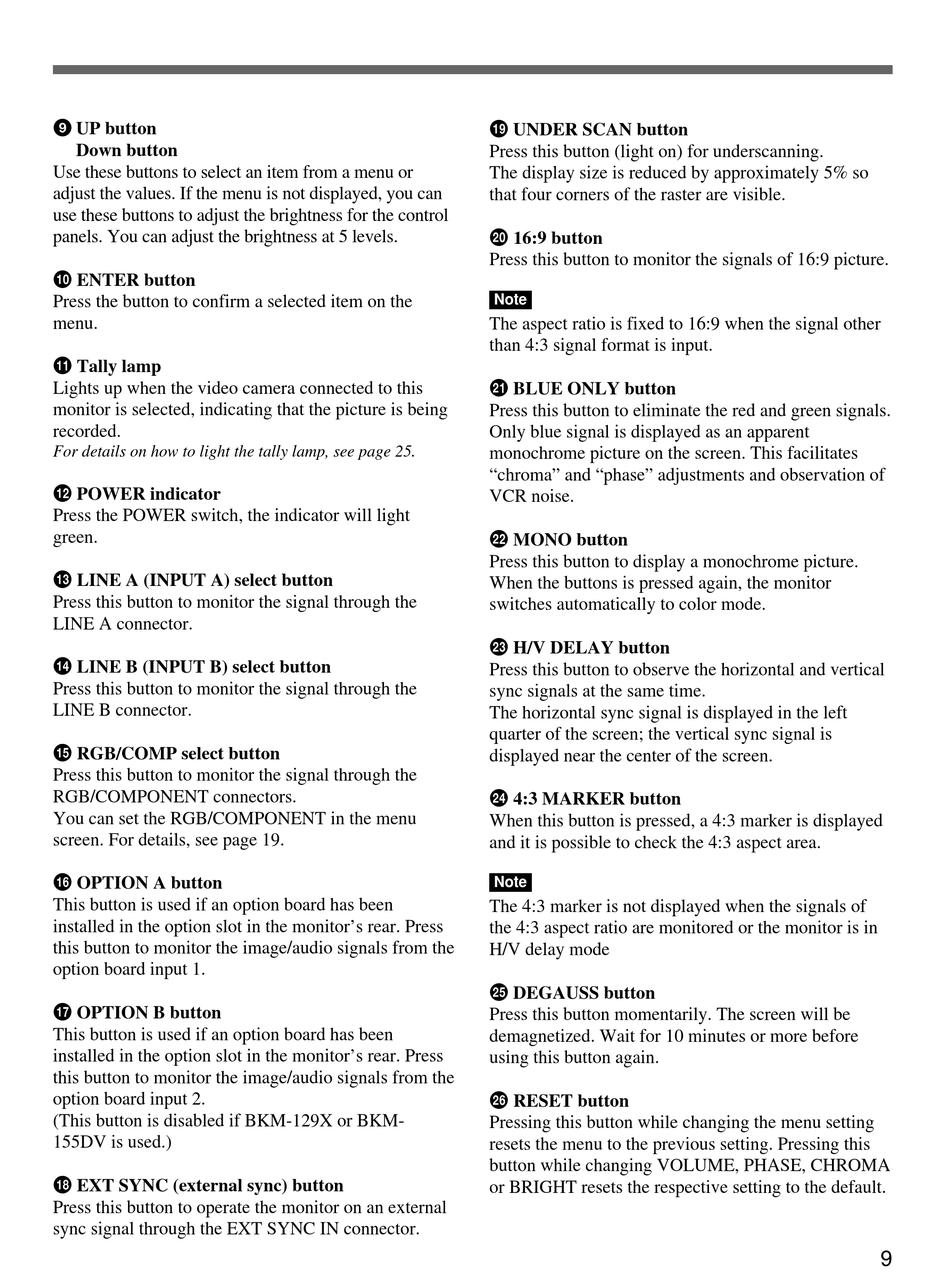

Sony Trinitron PVM-D14L5A Operating Instructions Manual Page 9

Color video monitor.
Hide thumbs

Advertisement

9 UP button
Down button
Use these buttons to select an item from a menu or
adjust the values. If the menu is not displayed, you can
use these buttons to adjust the brightness for the control
panels. You can adjust the brightness at 5 levels.
0 ENTER button
Press the button to confirm a selected item on the
menu.
qa Tally lamp
Lights up when the video camera connected to this
monitor is selected, indicating that the picture is being
recorded.
For details on how to light the tally lamp, see page 25.
qs POWER indicator
Press the POWER switch, the indicator will light
green.
qd LINE A (INPUT A) select button
Press this button to monitor the signal through the
LINE A connector.
qf LINE B (INPUT B) select button
Press this button to monitor the signal through the
LINE B connector.
qg RGB/COMP select button
Press this button to monitor the signal through the
RGB/COMPONENT connectors.
You can set the RGB/COMPONENT in the menu
screen. For details, see page 19.
qh OPTION A button
This button is used if an option board has been
installed in the option slot in the monitor's rear. Press
this button to monitor the image/audio signals from the
option board input 1.
qj OPTION B button
This button is used if an option board has been
installed in the option slot in the monitor's rear. Press
this button to monitor the image/audio signals from the
option board input 2.
(This button is disabled if BKM-129X or BKM-
155DV is used.)
qk EXT SYNC (external sync) button
Press this button to operate the monitor on an external
sync signal through the EXT SYNC IN connector.
ql UNDER SCAN button
Press this button (light on) for underscanning.
The display size is reduced by approximately 5% so
that four corners of the raster are visible.
w; 16:9 button
Press this button to monitor the signals of 16:9 picture.
Note
The aspect ratio is fixed to 16:9 when the signal other
than 4:3 signal format is input.
wa BLUE ONLY button
Press this button to eliminate the red and green signals.
Only blue signal is displayed as an apparent
monochrome picture on the screen. This facilitates
"chroma" and "phase" adjustments and observation of
VCR noise.
ws MONO button
Press this button to display a monochrome picture.
When the buttons is pressed again, the monitor
switches automatically to color mode.
wd H/V DELAY button
Press this button to observe the horizontal and vertical
sync signals at the same time.
The horizontal sync signal is displayed in the left
quarter of the screen; the vertical sync signal is
displayed near the center of the screen.
wf 4:3 MARKER button
When this button is pressed, a 4:3 marker is displayed
and it is possible to check the 4:3 aspect area.
Note
The 4:3 marker is not displayed when the signals of
the 4:3 aspect ratio are monitored or the monitor is in
H/V delay mode
wg DEGAUSS button
Press this button momentarily. The screen will be
demagnetized. Wait for 10 minutes or more before
using this button again.
wh RESET button
Pressing this button while changing the menu setting
resets the menu to the previous setting. Pressing this
button while changing VOLUME, PHASE, CHROMA
or BRIGHT resets the respective setting to the default.
9
