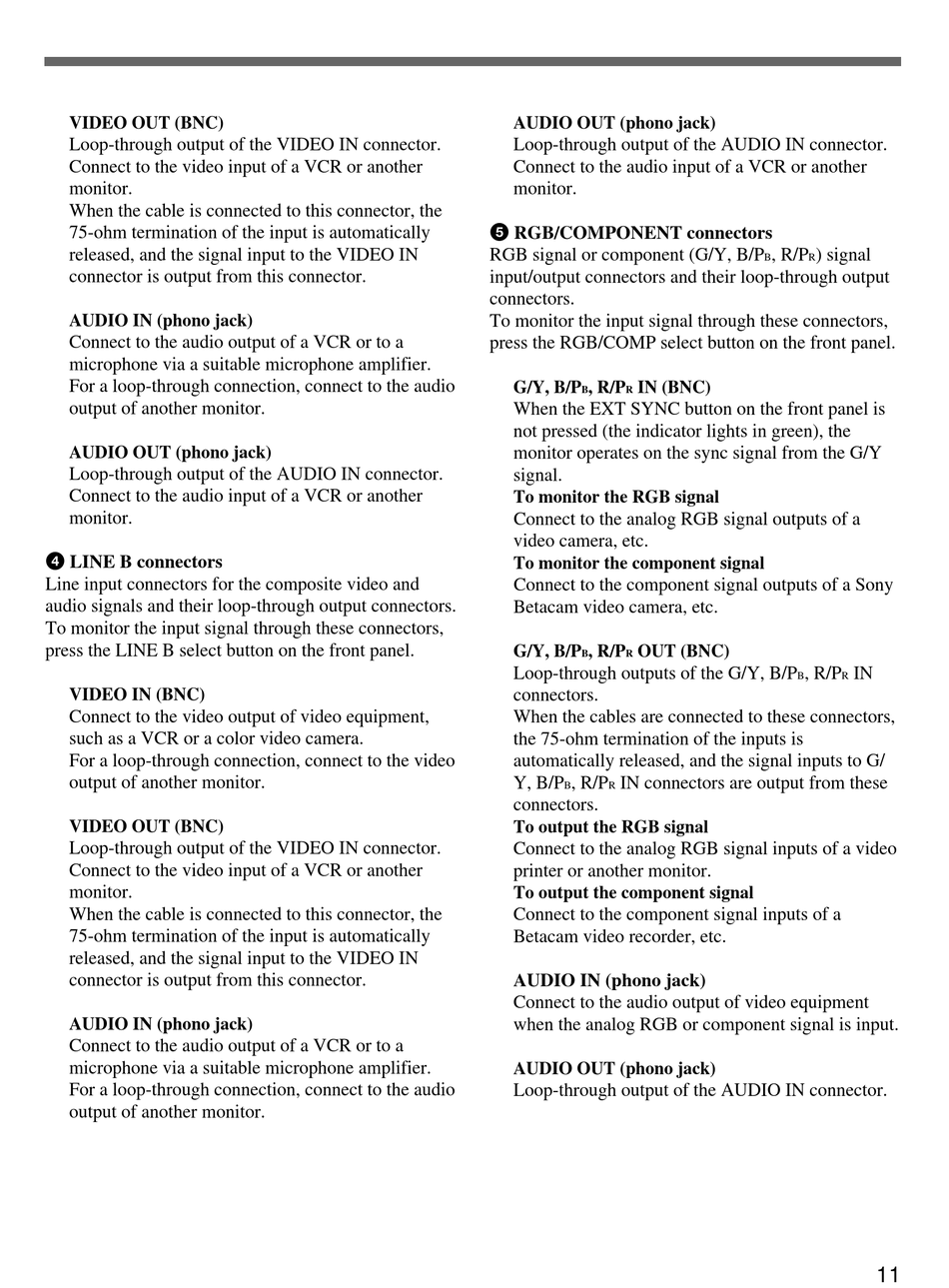

Sony Trinitron PVM-D14L5A Operating Instructions Manual Page 11

Color video monitor.
Hide thumbs

Advertisement

VIDEO OUT (BNC)
Loop-through output of the VIDEO IN connector.
Connect to the video input of a VCR or another
monitor.
When the cable is connected to this connector, the
75-ohm termination of the input is automatically
released, and the signal input to the VIDEO IN
connector is output from this connector.
AUDIO IN (phono jack)
Connect to the audio output of a VCR or to a
microphone via a suitable microphone amplifier.
For a loop-through connection, connect to the audio
output of another monitor.
AUDIO OUT (phono jack)
Loop-through output of the AUDIO IN connector.
Connect to the audio input of a VCR or another
monitor.
4 LINE B connectors
Line input connectors for the composite video and
audio signals and their loop-through output connectors.
To monitor the input signal through these connectors,
press the LINE B select button on the front panel.
VIDEO IN (BNC)
Connect to the video output of video equipment,
such as a VCR or a color video camera.
For a loop-through connection, connect to the video
output of another monitor.
VIDEO OUT (BNC)
Loop-through output of the VIDEO IN connector.
Connect to the video input of a VCR or another
monitor.
When the cable is connected to this connector, the
75-ohm termination of the input is automatically
released, and the signal input to the VIDEO IN
connector is output from this connector.
AUDIO IN (phono jack)
Connect to the audio output of a VCR or to a
microphone via a suitable microphone amplifier.
For a loop-through connection, connect to the audio
output of another monitor.
AUDIO OUT (phono jack)
Loop-through output of the AUDIO IN connector.
Connect to the audio input of a VCR or another
monitor.
5 RGB/COMPONENT connectors
RGB signal or component (G/Y, B/P
input/output connectors and their loop-through output
connectors.
To monitor the input signal through these connectors,
press the RGB/COMP select button on the front panel.
G/Y, B/P
, R/P
IN (BNC)
B
R
When the EXT SYNC button on the front panel is
not pressed (the indicator lights in green), the
monitor operates on the sync signal from the G/Y
signal.
To monitor the RGB signal
Connect to the analog RGB signal outputs of a
video camera, etc.
To monitor the component signal
Connect to the component signal outputs of a Sony
Betacam video camera, etc.
G/Y, B/P
, R/P
OUT (BNC)
B
R
Loop-through outputs of the G/Y, B/P
connectors.
When the cables are connected to these connectors,
the 75-ohm termination of the inputs is
automatically released, and the signal inputs to G/
Y, B/P
, R/P
IN connectors are output from these
B
R
connectors.
To output the RGB signal
Connect to the analog RGB signal inputs of a video
printer or another monitor.
To output the component signal
Connect to the component signal inputs of a
Betacam video recorder, etc.
AUDIO IN (phono jack)
Connect to the audio output of video equipment
when the analog RGB or component signal is input.
AUDIO OUT (phono jack)
Loop-through output of the AUDIO IN connector.
, R/P
) signal
B
R
, R/P
IN
B
R
11
