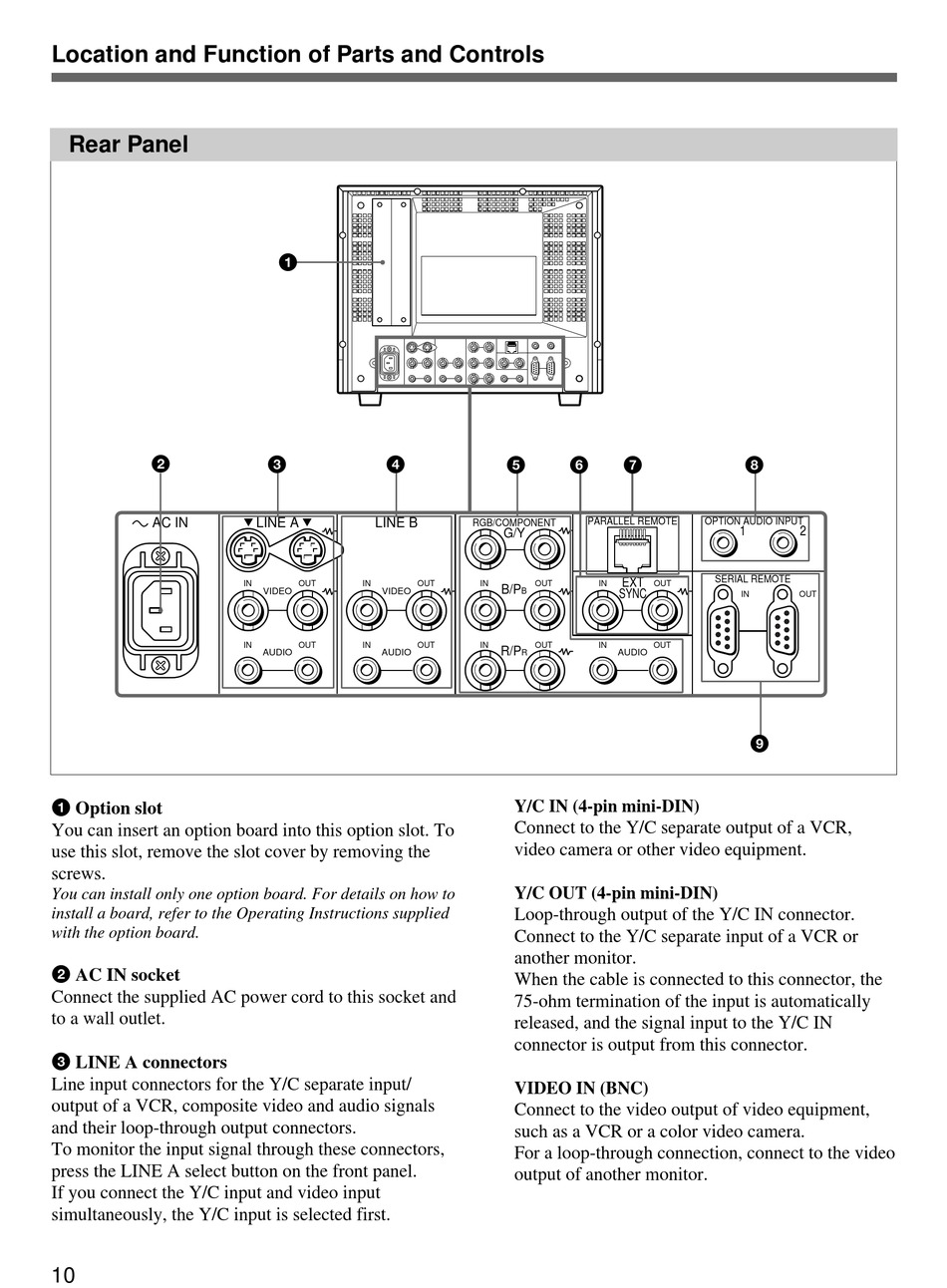

Location and Function of Parts and Controls

Rear Panel

2
AC IN
1 Option slot
You can insert an option board into this option slot. To
use this slot, remove the slot cover by removing the
screws.
You can install only one option board. For details on how to
install a board, refer to the Operating Instructions supplied
with the option board.
2 AC IN socket
Connect the supplied AC power cord to this socket and
to a wall outlet.
3 LINE A connectors
Line input connectors for the Y/C separate input/
output of a VCR, composite video and audio signals
and their loop-through output connectors.
To monitor the input signal through these connectors,
press the LINE A select button on the front panel.
If you connect the Y/C input and video input
simultaneously, the Y/C input is selected first.
10
1
3
4
LINE A
LINE B
IN
OUT
IN
OUT
VIDEO
VIDEO
IN
OUT
IN
OUT
AUDIO
AUDIO
5
6
7
PARALLEL REMOTE
RGB/COMPONENT
G/Y
EXT
IN
OUT
IN
B/P
B
SYNC
IN
OUT
IN
R/P
R
AUDIO
Y/C IN (4-pin mini-DIN)
Connect to the Y/C separate output of a VCR,
video camera or other video equipment.
Y/C OUT (4-pin mini-DIN)
Loop-through output of the Y/C IN connector.
Connect to the Y/C separate input of a VCR or
another monitor.
When the cable is connected to this connector, the
75-ohm termination of the input is automatically
released, and the signal input to the Y/C IN
connector is output from this connector.
VIDEO IN (BNC)
Connect to the video output of video equipment,
such as a VCR or a color video camera.
For a loop-through connection, connect to the video
output of another monitor.
8
OPTION AUDIO INPUT
1
2
SERIAL REMOTE
OUT
IN
OUT
OUT
9
