1. Presentation

• External power not required.
• Direct connection to Modbus RTU (EIA-485) networks. Up to 63 MH-RC-MBS-1 devices can
be connected in the same network.
MH-RC-MBS-1 is a Modbus slave device.
• Direct connection to the AC indoor unit. Up to 16 AC indoor units can be connected to MH-
RC-MBS-1, controlling them as one (not individually).
• Configuration from both on-board DIP-switches and Modbus RTU.
• Total Control and Supervision.
• Real states of the AC unit's internal variables.
• Allows simultaneous use of the AC's remote controls and Modbus RTU.

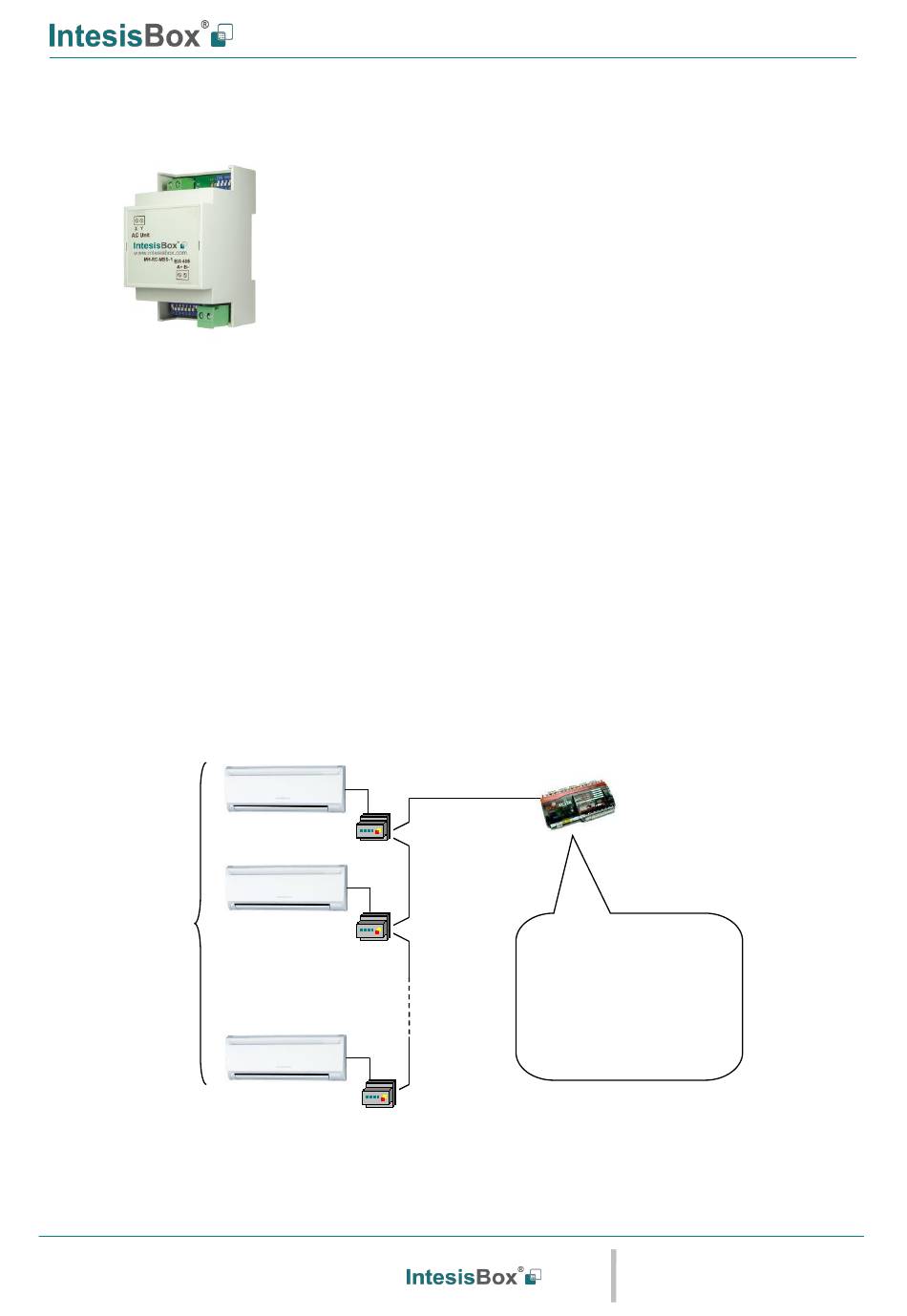

Up to 63
AC indoor
units*
*
Up to 63 IntesisBox devices can be installed in the same Modbus RTU bus. However, depending on the configured speed, the
installation of Modbus Repeaters may be required
