1. Presentation

• Quick and easy installation.
Mountable on DIN rail, wall, or even inside the indoor unit on some models of AC.
• External power not required.
• Direct connection to Modbus RTU (EIA-485) networks. Up to 63 ME-AC-MBS-1 devices can
be connected on the same network.
ME-AC-MBS-1 is a Modbus slave device.
• Direct connection to the AC indoor unit. Up to 1 AC indoor units can be connected to ME-AC-
MBS-1.
The cable for this connection is also supplied
• Configuration from both on-board DIP-switches and Modbus RTU.
• Total Control and Supervision.
• Real states of the AC unit's internal variables.
• Allows simultaneous use of the AC's remote controls and Modbus RTU.

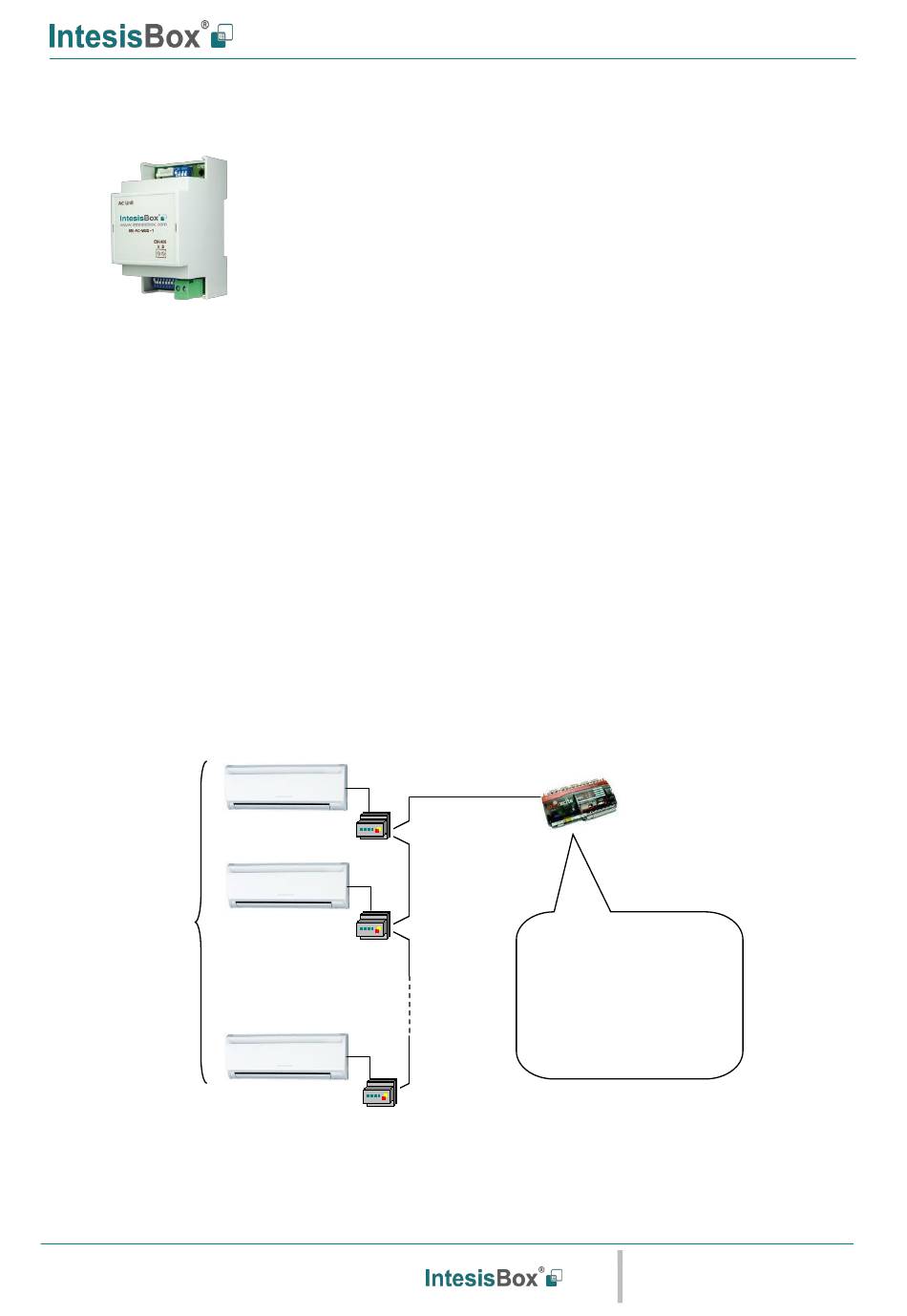

Up to 63
AC indoor
units*
*
Up to 63 IntesisBox devices can be installed in the same Modbus RTU bus. However, the installation of Modbus Repeaters may be
required.
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox ® is a registered trademark of Intesis Software SLU
ME-AC-MBS-1
The ME-AC-MBS-1
integration of Mitsubishi Electric air conditioners into Modbus RTU
(EIA-485) networks.
Compatible with all models of Domestic and Mr.Slim line. Check the
section 6 for more information.
Reduced dimensions. 93 x 53 x 58 mm
ME-AC-MBS-1
ME-AC-MBS-1
ME-AC-MBS-1
interfaces allow
3.7" x 2.1" x 2.3"
.
Modbus RTU
EIA-485 network
•
•
•
•
•
•
•
