1. Presentation

• Quick and easy installation.
Mountable on DIN rail, wall, or even inside the indoor unit on some models of AC.
• External power not required.
• Direct connection to Modbus RTU (EIA-485) networks. Up to 63 DK-RC-MBS-1 devices can
be connected in the same network.
DK-RC-MBS-1 is a Modbus slave device.
• Direct connection to the AC indoor unit. Up to 16 AC indoor units can be connected to DK-
RC-MBS-1, controlling them as one (not individually).
• Configuration from both on-board DIP-switches and Modbus RTU.
• Total Control and Supervision.
• Real states of the AC unit's internal variables.
• Allows simultaneous use of the AC's remote controls and Modbus RTU.

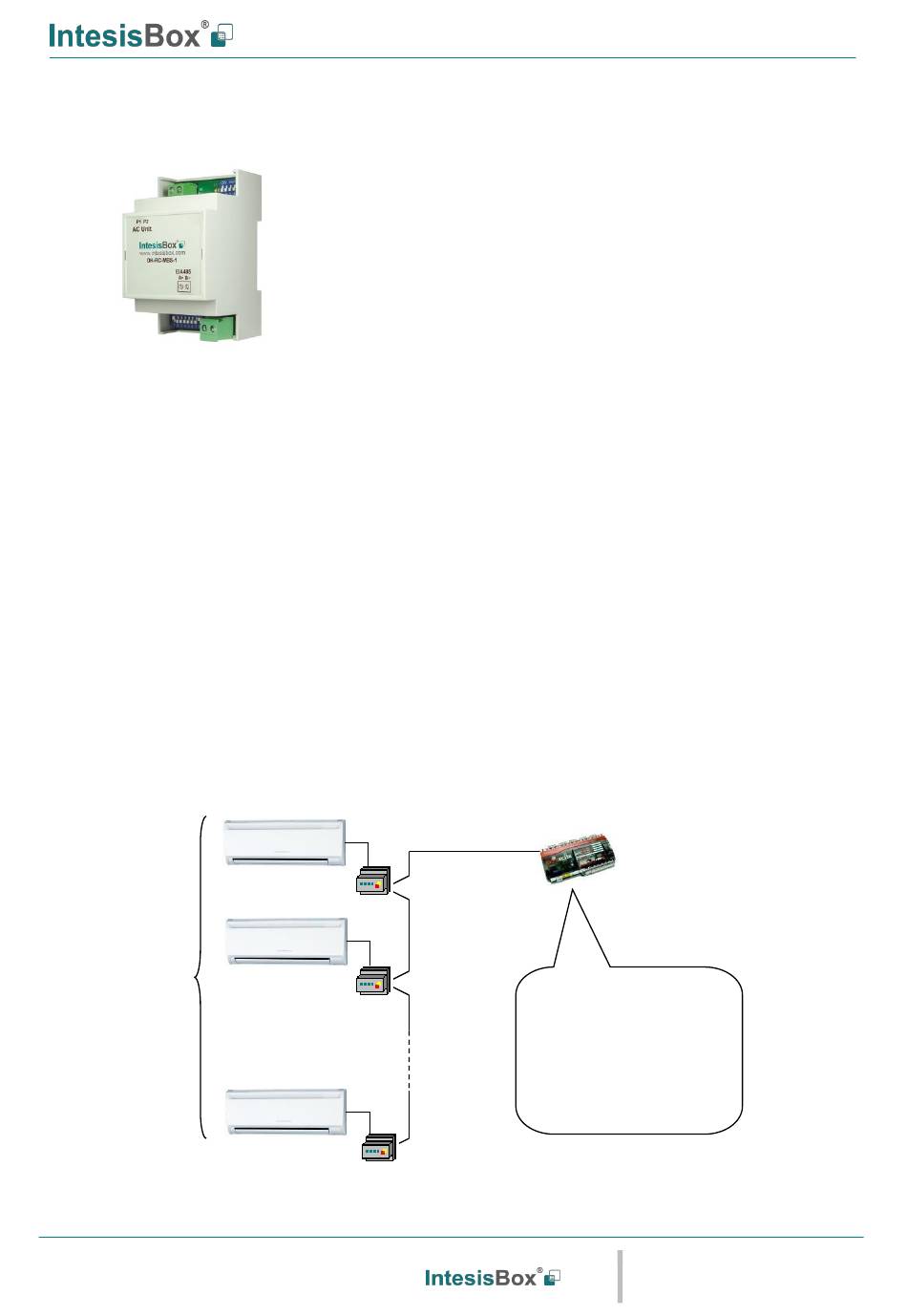

Up to 63
AC indoor
units*
*
Up to 63 IntesisBox devices can be installed in the same Modbus RTU bus. However, depending on the configured speed, the
installation of Modbus Repeaters may be required
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox ® is a registered trademark of Intesis Software SLU
DK-RC-MBS-1
The DK-RC-MBS-1 interfaces allow a complete and natural
integration of Daikin air conditioners into Modbus RTU (EIA-
485) networks.
Compatible with all SKY Air and VRV models commercialized
by Daikin. Check the Section 6 to obtain more information.
Reduced dimensions. 93 x 53 x 58 mm
Modbus RTU
EIA-485 network
DK-RC-MBS-1
DK-RC-MBS-1
DK-RC-MBS-1
User's Manual r3.3 EN
3.7" x 2.1" x 2.3"
Modbus RTU
Master
device
• SCADA
• PLC
• DDC
• BMS
• HMI
• Controller
• etc
