- Page 1 HEAT PRESS MODEL No: DHP7 INSTRUCTION MANUAL CONTACT Dulytek Equipment help@dulytek.com © 2018 Dulytek All rights reserved Seatle, WA 98105 www.dulytek.com...
- Page 2 PAGE 5 UNPACKING Unpacking Precautions Unpacking Instructions Item Checklist Recommended Parts PAGE 6 GETTING FAMILIAR DHP7 Press Features and Controls - Front DHP7 Press Features and Controls - Back PAGE 7 OPERATING INSTRUCTIONS Preparing Press Starting Press Setting Control Panel Pressing...
- Page 3 INSTRUCTION MANUAL: DHP7 PAGE 2 INTRODUCTION DULYTEK DHP7 hydraulic heat press is a machine engineered and manufactured for solvent-less plant rosin oil extraction for further use in research laboratories, pharmaceutical, cosmetic, food processing, and brewing industries. READ BEFORE To avoid accidents, first read SAFETY PRECAUTIONS (PAGE 3) and OPERATING HANDLING PRECAUTIONS (PAGE 4).
-
Page 4: Safety Precautions
Please make sure to thoroughly read, understand, and follow these precautions before using the product. If product is damaged, appears to be damaged, or malfunctions, contact DULYTEK customer service at help@dulytek.com. WARNING: Follow the warnings below. Otherwise, death or serious injuries may occur. -
Page 5: Handling Precautions
• DO NOT exceed the rated capacity. • Contact DULYTEK if the equipment does not start or if smoke or unusual odors are detected. • Always turn the machine OFF and unplug it when done using. Dulytek Equipment ©... - Page 6 4. Remove any protective or promotional labels from the press and other parts if applicable. 5. Examine the heat press after unpacking for any damage. If found one, take a picture and contact DULYTEK at help@dulytek.com immediately. ITEM Before starting, please make sure that the following items are included with CHECKLIST your press machine.
-
Page 7: Getting Familiar

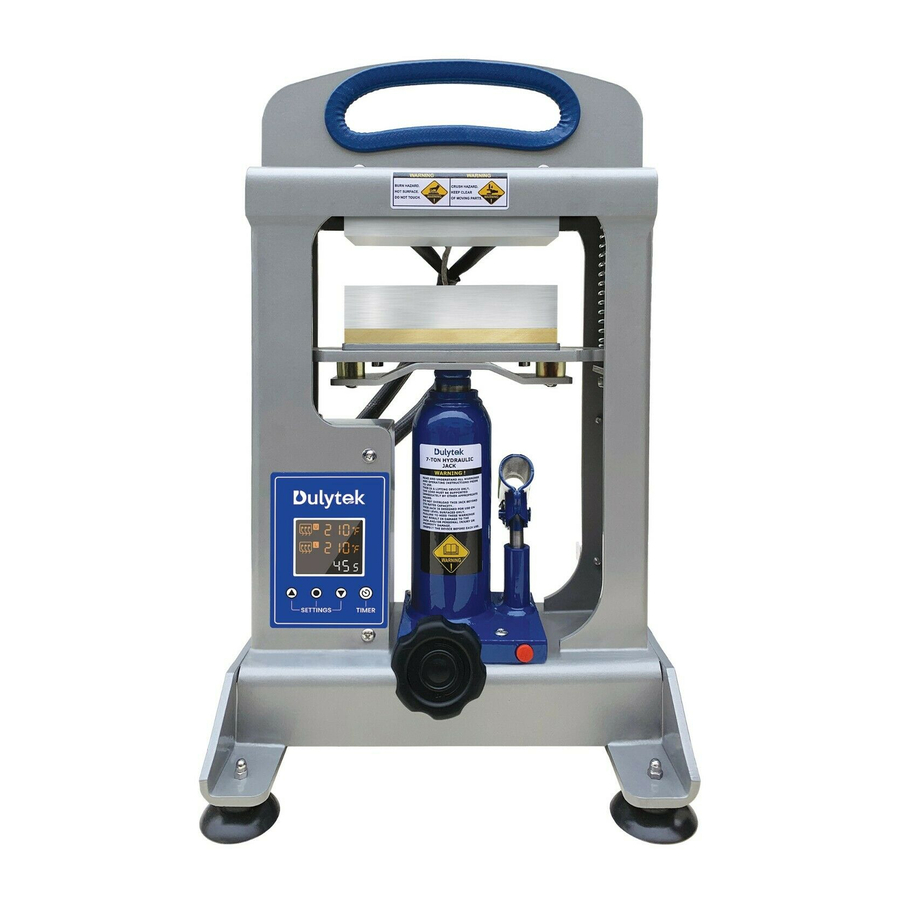

INSTRUCTION MANUAL: DHP7 PAGE 6 GETTING FAMILIAR DHP7 PRESS FEATURES AND Press Handle CONTROLS - FRONT Top Platen Bottom Platen Timer ON / OFF Button Control Panel Pump Handle Pump Handle Socket Release Valve Knob © 2018 Dulytek Dulytek Equipment All rights reserved www.dulytek.com... - Page 8 INSTRUCTION MANUAL: DHP7 PAGE 7 GETTING FAMILIAR (continued) DHP7 PRESS FEATURES AND CONTROLS - BACK ON / OFF Switch AC Power Cord Socket OPERATING INSTRUCTIONS PREPARING 1. Make sure the press stands on a flat sturdy countertop. PRESS 2. Make sure all switches and controls are turned OFF. 3. Prepare materials you wish to press.
- Page 9 INSTRUCTION MANUAL: DHP7 PAGE 8 OPERATING INSTRUCTIONS (continued) STARTING 1. Flip the ON / OFF switch to turn the press on. The control panel PRESS and the switch become lit. SETTING You can set the press temperature and timer using the control panel CONTROL Please follow the steps below to record the desired settings.
- Page 10 INSTRUCTION MANUAL: DHP7 PAGE 9 OPERATING INSTRUCTIONS (continued) SETTING 5. Press SET button again (Figure 7) to go to the temperature scale CONTROL selection mode. Now, you should see “P - 3” on the display (Figure 8). PANEL Tip: Depending on your machine’s default settings, you may either see (continued) “F” or “C” on the display, indicating the currently selected temperature scale (°F or °C).
- Page 11 INSTRUCTION MANUAL: DHP7 PAGE 10 OPERATING INSTRUCTIONS (continued) SETTING 9. Now, press SET button once more to record the settings (Figure 13). CONTROL The display screen shows the current temperature of the corresponding PANEL platen on the “PV” line and your desired temperature on the “SV” line (continued) (Figure 14). Figure 13 Figure 14 PRESSING 1. Wait until the platens heat up to the desired temperature. Tip: The temperatures shown on both “PV” and “SV” lines should be the same.
-
Page 12: Technical Specifications
INSTRUCTION MANUAL: DHP7 PAGE 11 TECHNICAL SPECIFICATIONS PARAMETER SPECIFICATIONS Model DHP7 Press Force 14000 lb / 7 Ton Power 420 W Current 3.8 A Voltage 110 V Frequency 50 / 60 Hz Dual Heating Plates Platen Size 2.5 x 6 inch / 64 x 152 mm Temperature Range up to 750 °F / 340 °C...
