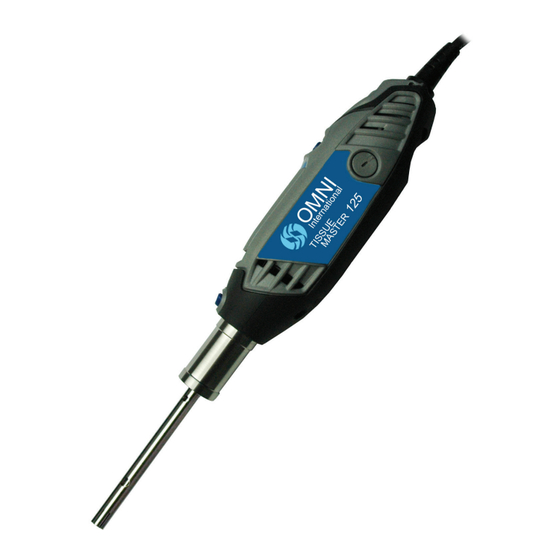

- Page 1 OMNI TISSUE MASTER USER MANUAL REV. B...
-
Page 2: Warranty Information
WARRANTY INFORMATION This manual is a guide for the use of the Omni International Tissue Master and accessories. Data herein has been verified and validated. It is believed adequate for the intended use of the instrument. If the instrument or procedures... - Page 3 Do not attempt to modify any part of the Tissue Master. If you experience problems with or have questions about your Tissue Master, contact your authorized dealer or call Omni at 1-800-776-4431 or 770-421-0058. DANGER -DO NOT allow the machine to be submerged in any liquid.
-
Page 4: Table Of Contents
Remove the Tissue Master and any accessories from their packaging. If any parts are missing or damaged, call your authorized dealer or call Omni at 1-800-776-4431 or 1-770-421-0058. Your Tissue Master includes the following parts and accessories: 1. Assembled Tissue Master Unit with 5mm, 7mm or 10mm Probe 2. -
Page 5: Section 1. Preparation For Use
Replacement 7mm x 95mm Stainless Steel Probe F2107 Replacement 10mm x 110mm Stainless Steel Probe F2107-10 The Omni Tissue Master is a variable speed, handheld homogenizer. It combines a high-speed, high-torque motor with an included autoclavable rotor-stator generator probe. 1.2 SPECIFICATIONS... -
Page 6: Stand-Mounting The Tissue Master
SECTION 1. PREPARATION FOR USE 1.3 STAND-MOUNTING THE TISSUE MASTER (Optional) An optional stand kit (Part # F22000) may be purchased to mount the Tissue Master. Contact your authorized dealer or Omni International at 1-800-776-4431 or 1-770-421-0058 to order. Assemble the stand: 1. -
Page 7: Section 3. Generator Probe Maintenance
SECTION 3. GENERATOR PROBE & ACCESSORY MAINTENANCE In order to thoroughly clean the components of the Tissue Master, it must be disassembled. 3.1 DISASSEMBLY 1. Disconnect the MOTOR from the power source. 2. Unthread the GENERATOR TUBE from the motor unit. 3. -
Page 8: Reassembly
SECTION 3. GENERATOR PROBE & ACCESSORY MAINTENANCE 3.3 REASSEMBLY 1. Stand the new BEARING flat on a table surface and press the smaller end of the ROTOR SHAFT through the BEARING. 2. Holding the ROTOR SHAFT off the table, push the ROTOR SHAFT through the hole in the center of the collet wrench and use the wrench to press the BEARING down the shaft until it snaps into place (the bearing should feel loose in the bearing seat). -
Page 9: Replacement Bearing Run-In
SECTION 3. GENERATOR PROBE & ACCESSORY MAINTENANCE 3.4 BEARING RUN-IN If the BEARING was replaced, it must be run-in before use. 1. Immerse 1/3 of the GENERATOR in water and run the MOTOR at a low speed for one minute. 2. -
Page 10: Section 4. Reorder Information
SECTION 4. REORDER INFORMATION This table provides part numbers for Omni Tissue Master replacement parts. Please call 1-800-776-4431 to order. Motor Flexible Collet (black) Generator Tube Shaft Lock Collet Nut Button Bearing (white) Rotor Shaft PART # DESCRIPTION 20811 Brush Cap... -
Page 11: Section 5. Motor Unit Maintenance
BRUSH CAP (2) WARNING: DO NOT connect the power cord to a power source if it is worn or damaged. For assistance, call your authorized dealer or Omni International at 1-800-776-4431 of 770-421-0058. WARNING: DO NOT attempt to disassemble the motor unit. -
Page 12: Section 6. Troubleshooting
Do not attempt to service the Tissue Master in a manner other than those discussed in this manual. For any issue that is unsuccessfully corrected using this guide, please contact your authorized dealer or call technical assistance at Omni International at 1-800-776-4431 or 770-421-0058. PROBLEM... - Page 13 SECTION 6. TROUBLESHOOTING PROBLEM CORRECTIVE ACTION Excessive noise during run-in of a -Turn the Tissue Master OFF and new bearing return to step 1 of Section 3.4 PTFE bearing wears quickly -Fluid level may be too low in the tube. -Immerse the probe deeper into the fluid.
- Page 14 NOTES:...
- Page 15 NOTES:...
- Page 16 OMNI TISSUE MASTER USER MANUAL 935 C Cobb Place Blvd. Toll Free: 1.800.776.4431 Kennesaw, GA 30144 Phone: 770.421.0058 Email: omni@omni-inc.com Fax: 770.421.0206 Patents Pending P/N: 03-203 www.omni-inc.com...
