Summary of Contents for Omni Mixer

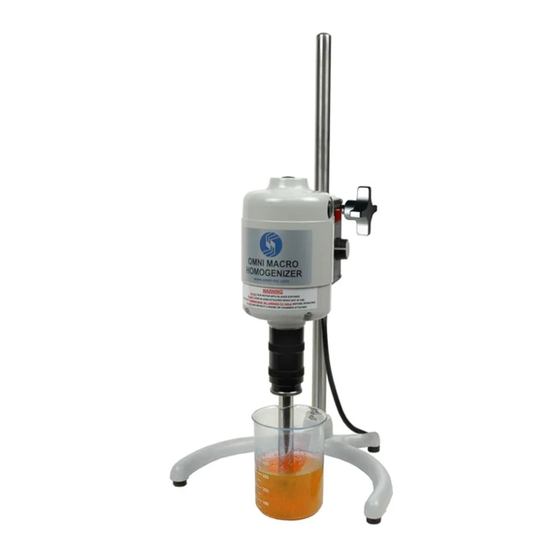

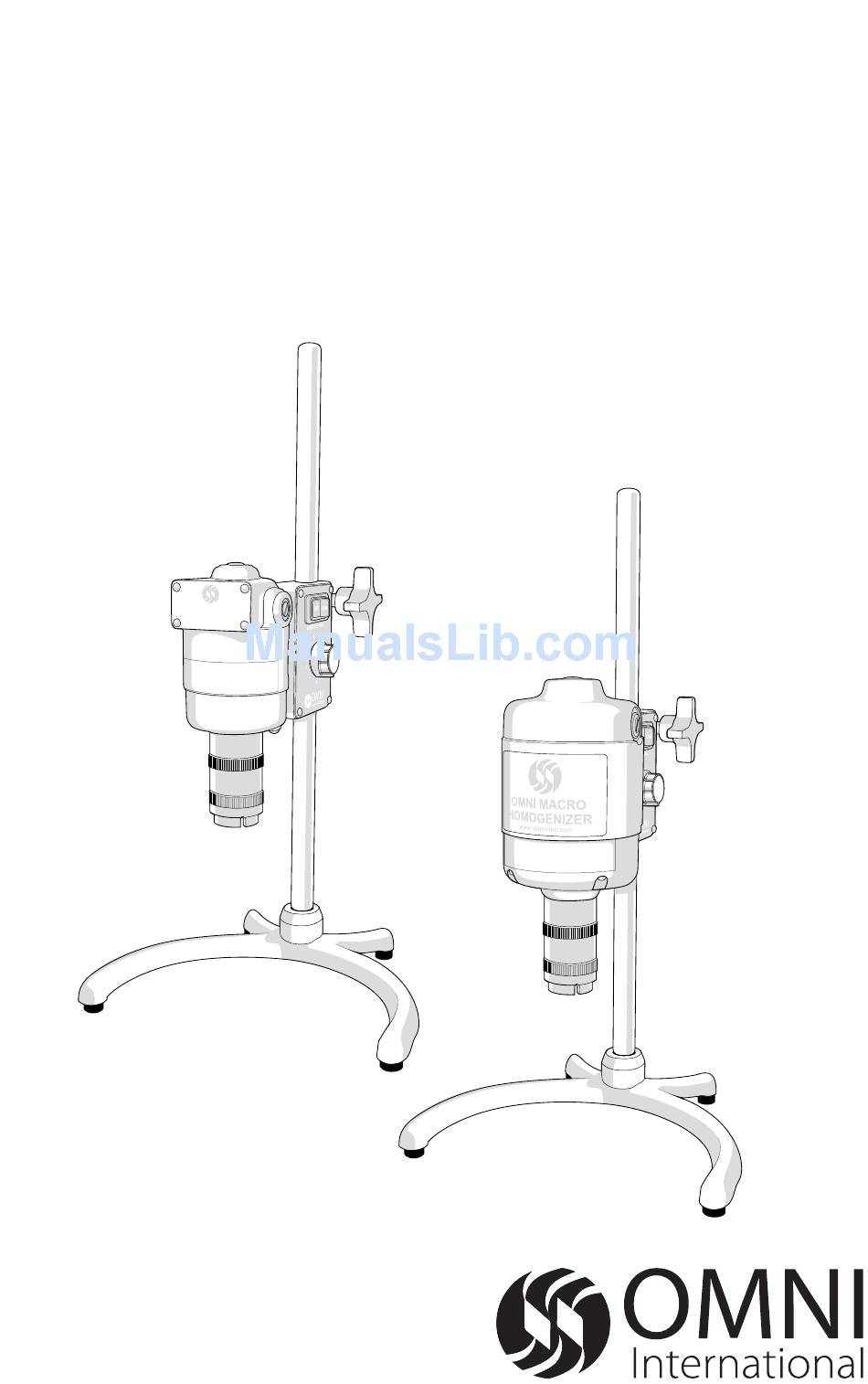

- Page 1 Omni Mixer & Macro User Manual OMN I MIXE R HOM OGE NIZE R www.om ni-inc.co m...
- Page 2 DO NOT attempt to modify any part of the Omni Mixer or Omni Macro. If you experience problems with or have questions about your Omni Mixer or Omni Macro, contact your authorized dealer or call Omni International at 800-776-4431 or 770-421-0058.
- Page 3 17104 17104 Instruction Manual 17258 17258 The following components are supplied as part of the Omni Mixer and Omni Macro tool kit (P/N 17104) Description Gen Probe Multi Tool 00-402 20, 30, 45, 55 mm Knife Tool 15100K 1/16” Allen Wrench 00-416 5/64”...
-
Page 4: Operation
Operation The speed of the Omni Mixer or Omni Macro may be regulated to achieve optimum results when working with different materials. A speed selection knob is located at the side of the unit, as is a separate “OFF”... - Page 5 Generator Probe Installation All generator probes (sold separately) are easily installed to the motor unit by following these steps: Screw the generator probe adapter (P/N 15001) into the coupling adapter Screw the generator probe into the generator probe adapter until the O-ring is completely inside the generator probe adapter.
- Page 6 Vessel Restraint Disk (Optional) The Vessel Restraint Disk (P/N LT-750) can be used with the Omni Mixer and Macro to help reduce splashing and contain aerosols during homogenization. This accessory is compatible with 20mm and larger diameter rotor-stator generator probes and with containers up to six inches in diameter.
- Page 7 Sealed chamber assemblies are available as separately ordered items for use with the Omni Mixer and Macro. They consist of chambers, many of which are fluted to facilitate mixing by inhibiting swirling, gasket screw on cover seals to inhibit aerosol release, a shaft assembly, and a sharpened stainless steel blade, or generator probe.
- Page 8 (cont.) Sealed Generator Probe Assemblies Sealed chamber generator probe assemblies are available for use with the Omni Mixer and Macro but are not supplied with the instrument. They consist of chambers, many of which are fluted to facilitate mixing by inhibiting swirling, gasket screw on cover seals to inhibit aerosol release, and a generator assembly.
-
Page 9: Maintenance
If this counter-clockwise. occurs with your Omni Mixer or Omni Macro, Installation of the coupling is the reverse of unplug the cord, loosen the brush caps one at these steps. -
Page 10: Troubleshooting
Troubleshooting Do not attempt to service the Omni Mixer or Macro in a manner other than those dis- cussed in this manual. For any issue that is unsuccessfully corrected using this guide, please contact your authorized dealer or call technical assistance at Omni International at 1-800-776-4431 or 770-421-0058. - Page 11 This page left blank intentionally.
- Page 12 935C Cobb Place Blvd. Kennesaw, GA 30144 800.776.4431 • 770.421.0058 www.omni-inc.com PN: 17258 Rev.B...
