Summary of Contents for Omni TH

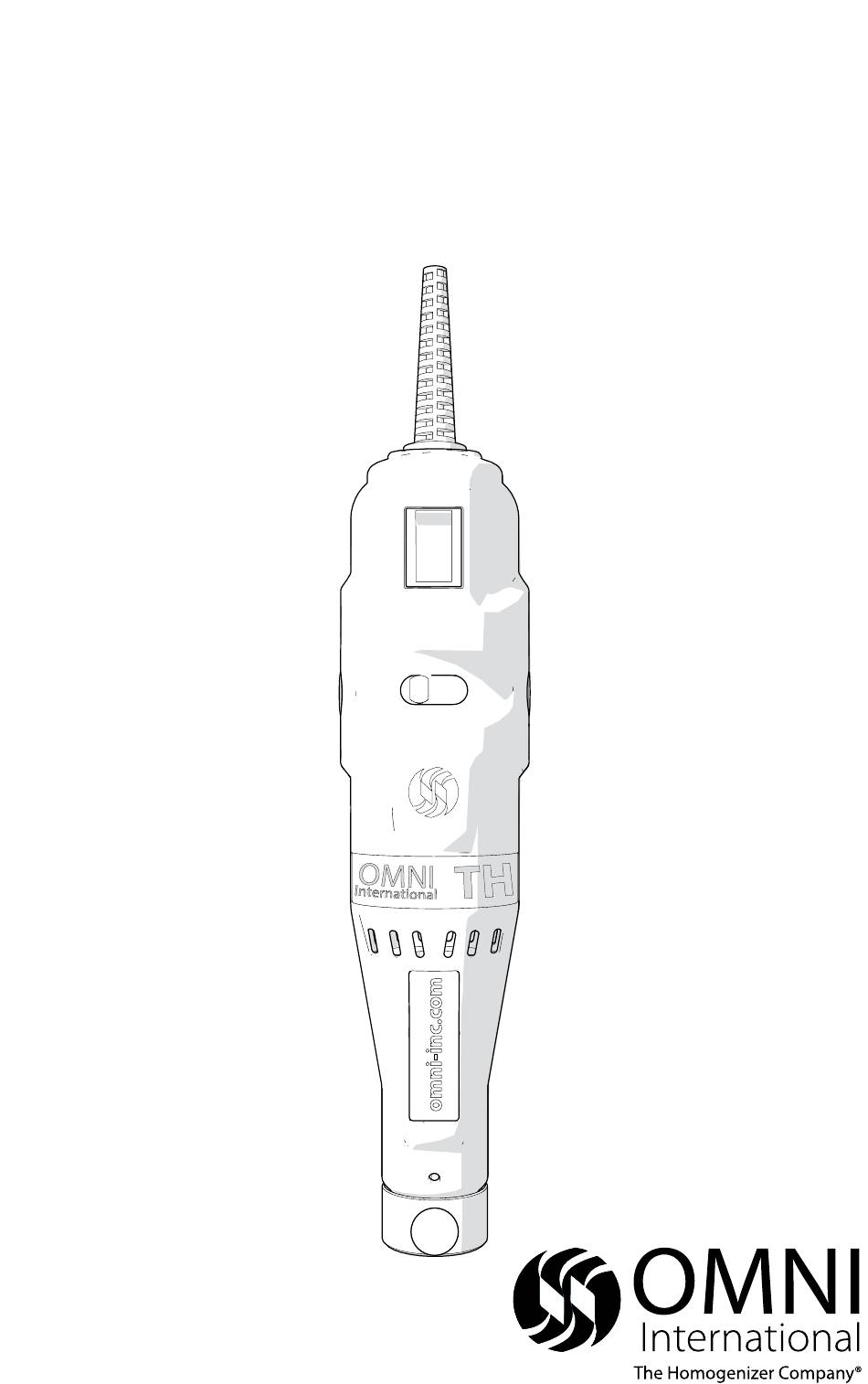

- Page 1 Tissue Homogenizer User Manual...
- Page 2 This warranty does not include normal wear from use; it does not apply to any instrument or parts which have been altered by anyone other than an employee of Omni...
- Page 3 4. Motor Brushes 1. Power Cord 5. Thumb Screw 2. On/Off Switch 6. Probe Coupling 3. Variable Speed Control Adapter Clamp The Omni TH consists of the following: 12-120 12-118 Description Part Number Quantity Motor Drive Unit (110V) TH-01 Or Motor Drive Unit (220V)
-
Page 4: Stand Mounting
Clamp Release Button Push to lock into Clamp Clamp 1. Slide the TH motor into the opening 12-118 on the end of the post clamp assembly and push it down firmly. The unit will lock in place. 2. To release the TH, press the black... - Page 5 1/4 Turn *Never run dry Omni Tips and Adapter 1. Insert Adapter 2. Tighten 3. Insert Omni Tip 4. Quarter turn 5. Ready to use into coupling Thumbscrew into adapter clockwise to lock *always submerge probe...
-
Page 6: General Operation
Saw Tooth - Wide Window Fine G7-115STW Saw Tooth Fine G10-115 10 mm 1.5 mL - 100 mL Saw Tooth - Wide Window Coarse G10-115W Omni Tips® Type Size Quantity Order No. 7 mm x 110 mm 25 Pack 30750H Plastic Hard Tissue Disposable... -
Page 7: Troubleshooting
Troubleshooting PROBLEM CORRECTIVE ACTION The Omni TH is plugged in and turned on - Check power cord connectors but is not fu nctioning. - Check wall socket for power to the outlet Motor is turned ON and makes a makes a - Check that the brushes are not worn “buzzing”... - Page 8 935C Cobb Place Blvd. Kennesaw, GA 30144 800.776.4431 • 770.421.0058 www.omni-inc.com PN: H258-TH Rev. D...
