Summary of Contents for Omni Sonic Ruptor 400

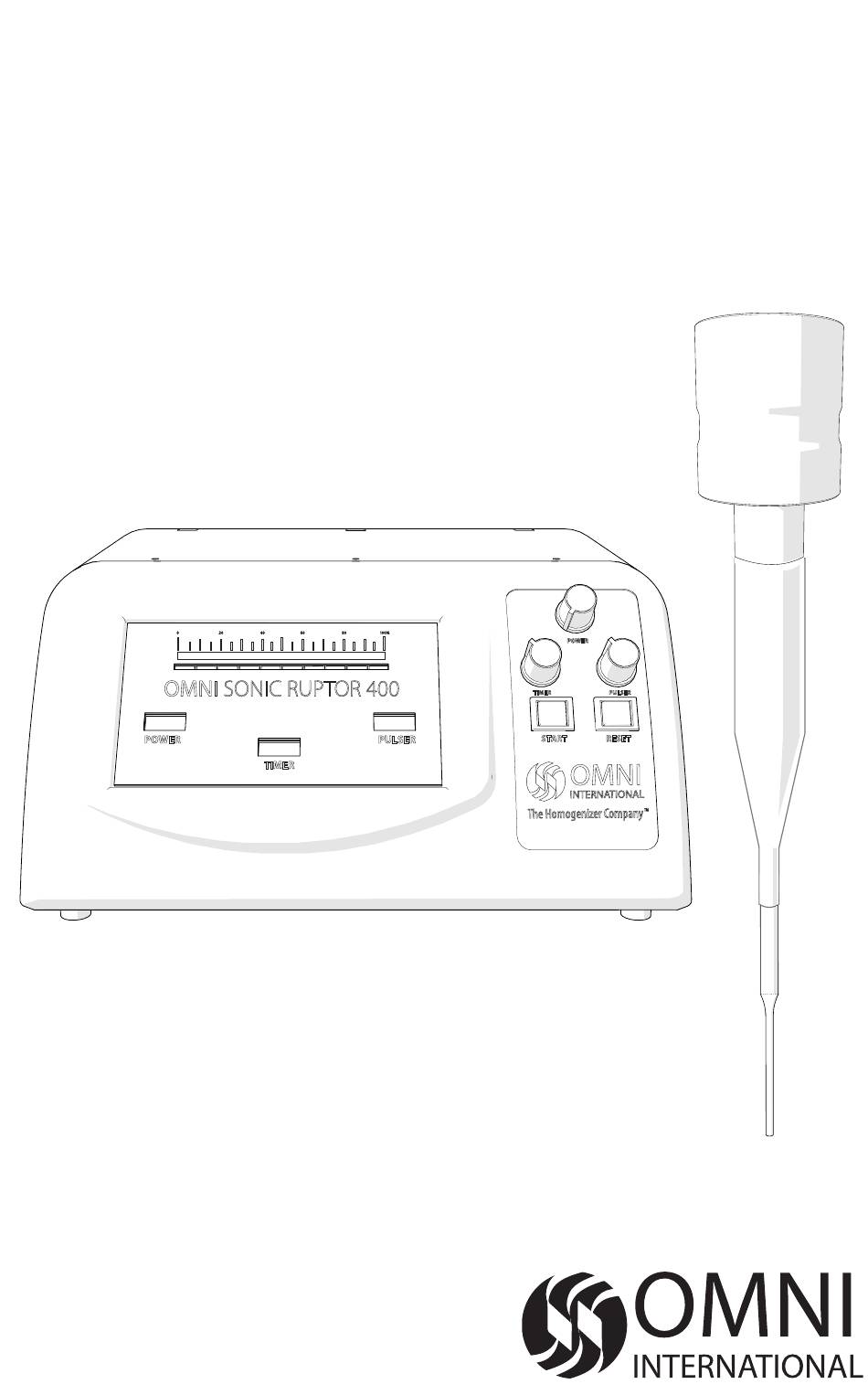

- Page 1 Sonic Ruptor 400 User Manual...
- Page 2 This product is warranted to be free from defects in material and workmanship for a period of ONE YEAR from the date of delivery. Omni International will repair or replace and return free of charge any part which is returned to its factory within said period, transportation prepaid by user, and which is found upon inspection to have been defective in materials or workmanship.
- Page 3 3. Timer LED 8. Power Cord Port 4. Pulser LED 9. Transducer Connector 5. Processing Tip 10. Transducer (Sold Separately) The Sonic Ruptor 400 consists of the following: Description Quantity Control Unit Transducer Power Cord 2” Pin Wrench User Manual...
- Page 4 Accessories Generator Probes Tighten with Attach the processing 2” pin wrenches tip to the transducer. Place the Plastic Interface Washer between the tip and the transducer. Plastic Interface Washer (included with processing tip) CAUTION: Use wrenches to twist the processing tip. Do not twist the Transducer.
-
Page 5: Stand Mounting

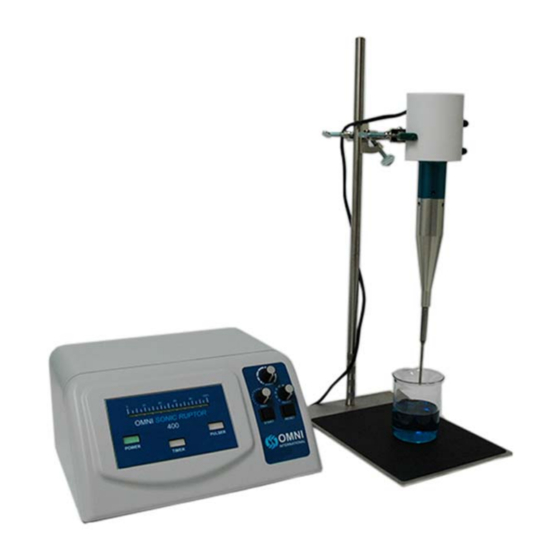

Stand Mounting Stand Clamp 18-205 (Sold Separately) Stand 18-205 (Sold separately) Ready to use. -
Page 6: General Operation
Operation (Back of Unit) 1. Timer Control 7. Power Control 2. Power Output Meter 8. Pulser Control 3. Power LED 9. Reset Button 4. Timer LED 10. Start Button 5. Pulser LED 11. On/Off Switch 6. Transducer Connector 12. Power Cord Port General Operation - Adjust power level to desired setting (see probe instructions for max settings) - Adjust timer setting for run duration... -
Page 7: Troubleshooting
3. Attach a new washer and tip. incorrect frequency DO NOT attempt to service the Sonic Ruptor 400 in a manner other than those discussed in this manual. For any issue that is unsuccessfully corrected using this guide, please contact your authorized dealer or call Omni International at 1-800-776-4431... - Page 8 935C Cobb Place Blvd. Kennesaw, GA 30144 800.776.4431 • 770.421.0058 www.omni-inc.com PN: 03-254 Rev. B...
