Parameter settings with VPlus

7.4.2.1 Basic IP settings
IP settings can be made via the interface X21 and the USB/Com Port adapter.
Various parameters are available for module information and IP settings.
1431 shows basic module data:
Parameter
Module Info
MAC-ID: unambiguous MAC-ID
Sno: Serial number
HW: Hardware version
SW: Software version
For IP setting, five parameters are available.
No.
1432
IP address
1433
Netmask
1434
Gateway
1435
DNS Server
1436
DHCP Option
They define the IP settings and/or use of DHCP. When the DHCP option is activated, the IP settings
will be made by the DHCP server when the module is started.
Each setting comprises four values. Please contact your IT administrator for permissible values. The
four values of the parameters are assigned on the display to four datasets ("Data Set 1" to "Data Set
4"). However, they do not depend on changes of these data sets directly. The datasets are only pro-
vided for clear representation of the values.

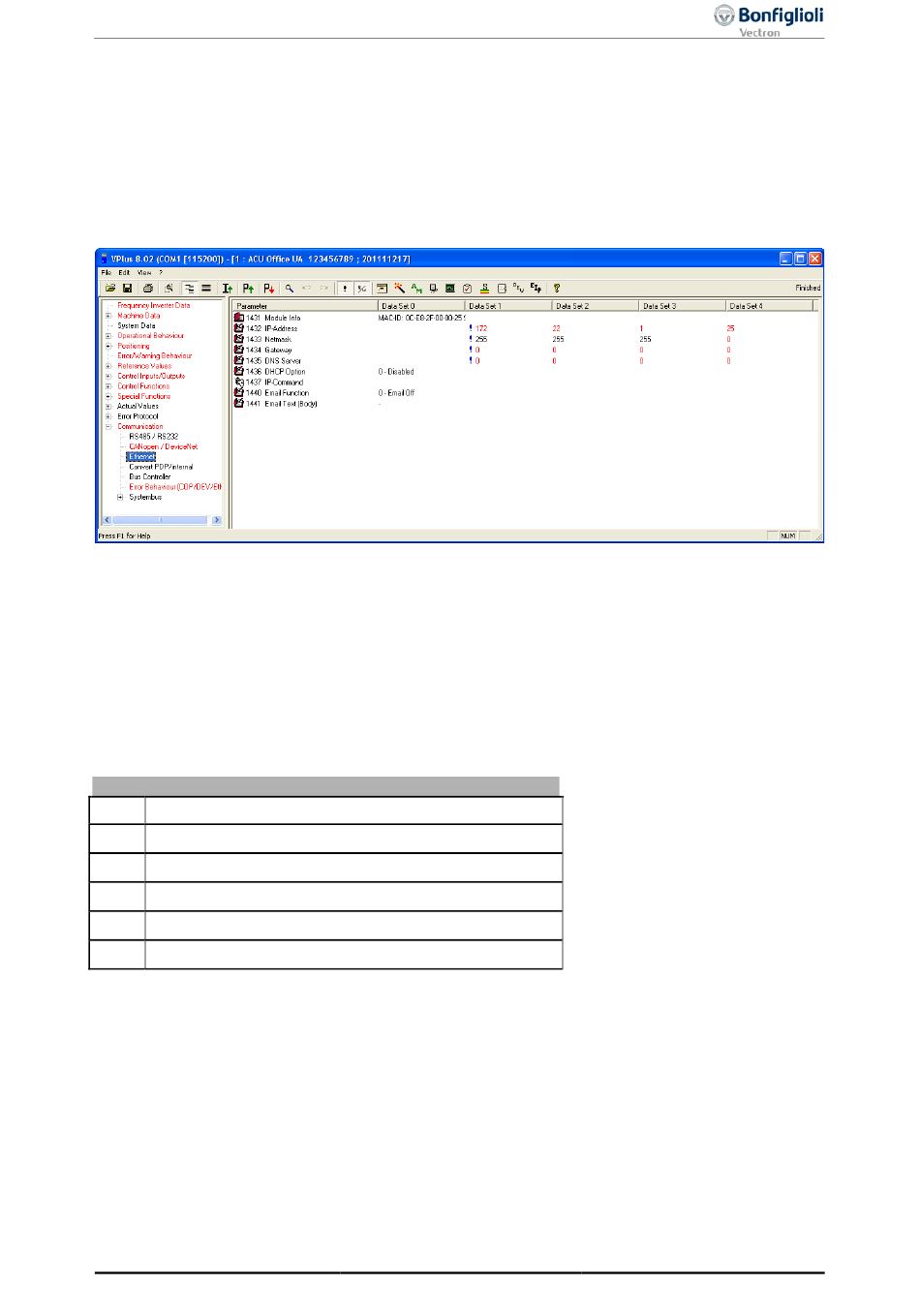

To make IP settings, click on the first entry (e.g. Parameter 1432
•
Enter the required value and go to the next input field by pressing the "TAB" button.
•
12/13
Parameters
Description
Agile
VABus/TCP
"Data Set 1").
IP-Address
