6.2

Disassembly

Disconnect the frequency inverter from power supply and protect it against being
•
energized unintentionally.
• Remove the cover of the module slot.

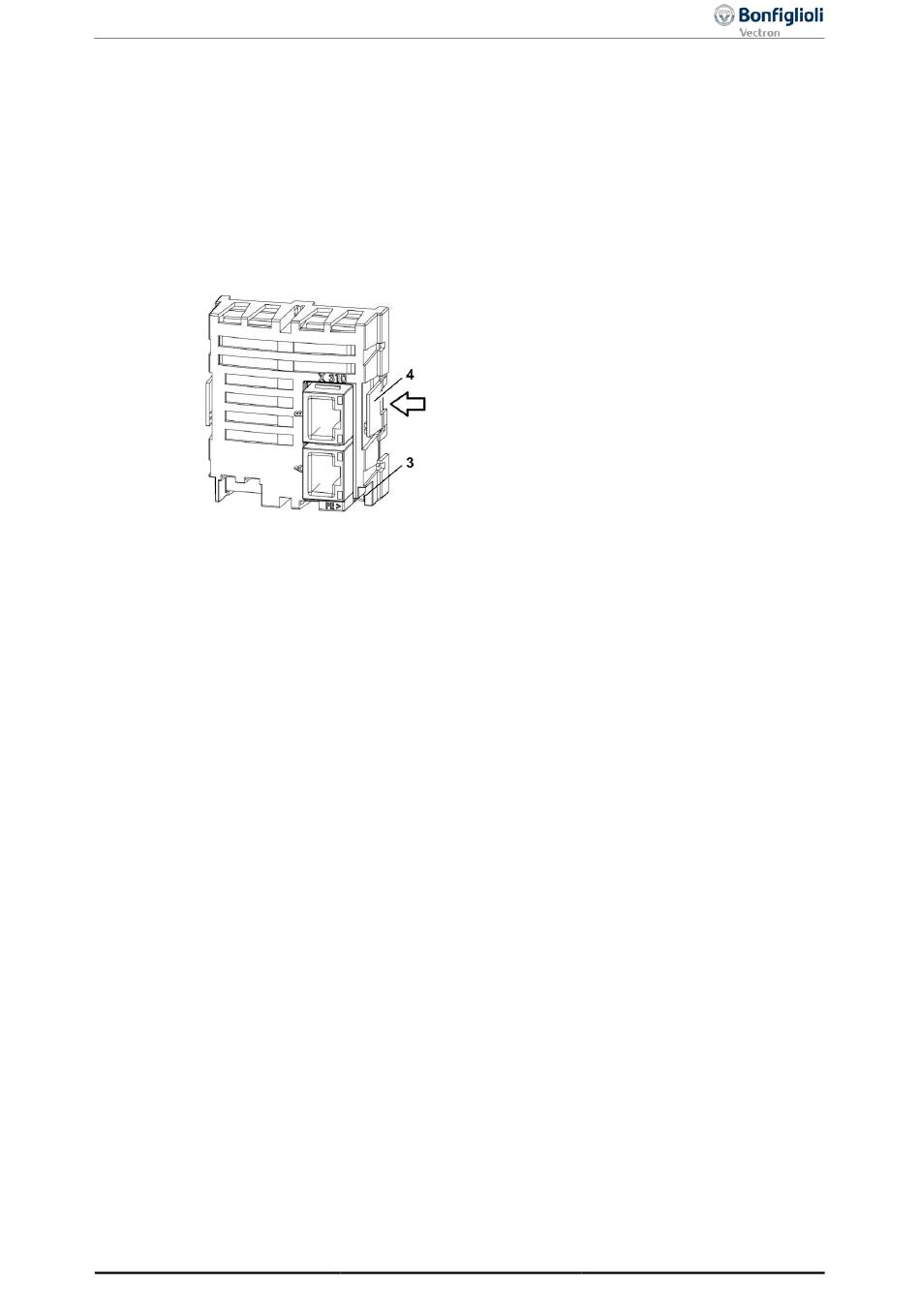

• Loosen the screw (3) at the communication module.
• Using a small screwdriver, unlock the hooks (4) (first right then left).
Pull communication module out of slot.
•
Unscrew PE-spring.
•
Fix the cover on the frequency inverter.
•
