6

Assembly/disassembly of communication module

6.1

Assembly

The CM-VABus/TCP and CM-VABus/TCP-2P communication modules are pre-
assembled in a case and are ready for installation. In addition, a PE-spring is supplied
for PE-connection (shield).
CAUTION
Danger of destruction of frequency inverter and/or communication module
Before installation of the communication module, the frequency inverter must
•
be disconnected from power supply. Installation is not permissible while the
unit is energized.
• Do not touch the PCB visible on the back of the module, otherwise compo-
nents may be damaged.

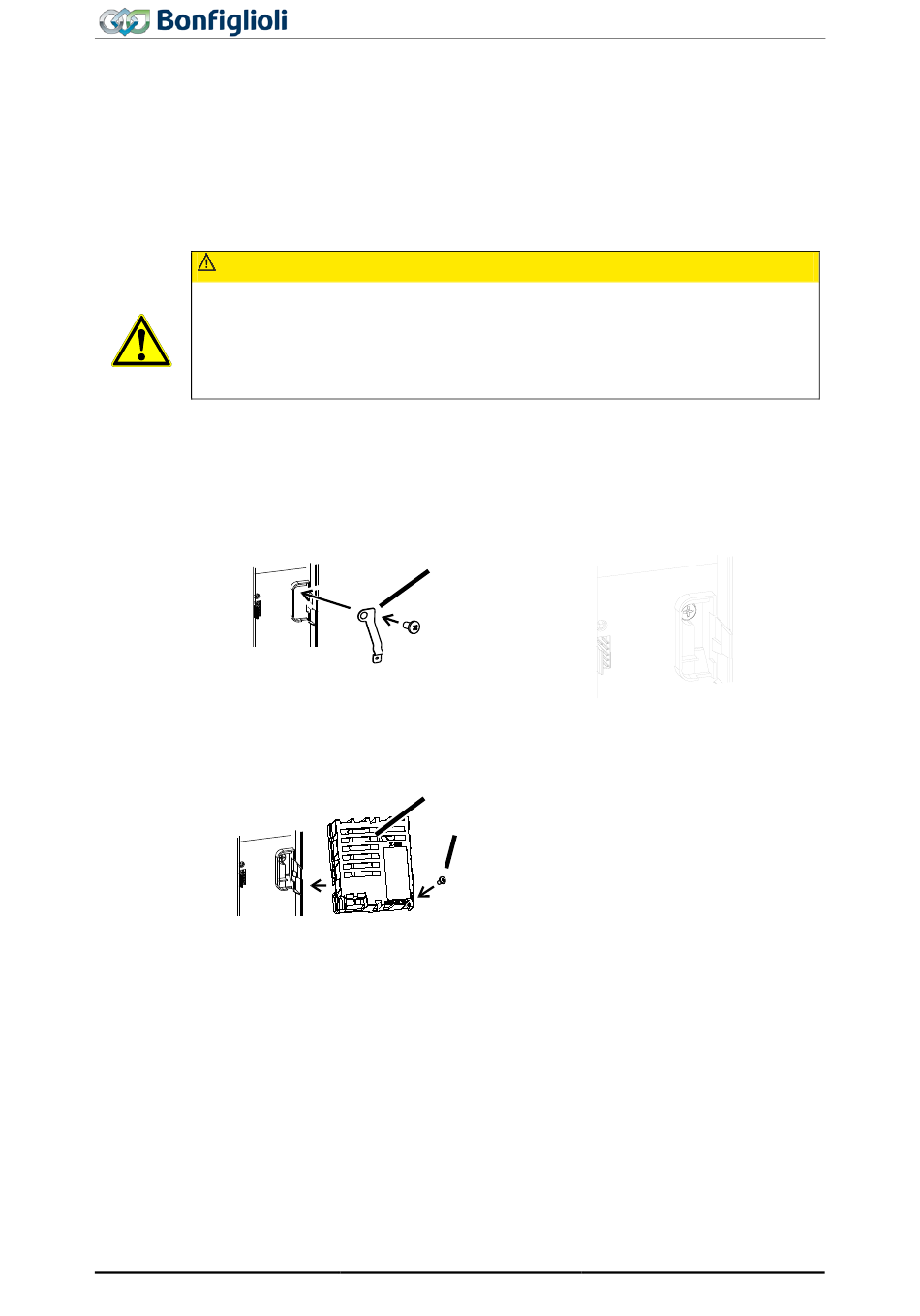

Work steps:
• Disconnect the frequency inverter from mains voltage and protect it against being
energized unintentionally.
• Remove the cover of the module slot.
• Fix the PE-spring (1). Use the screw provided at the frequency inverter.
• Insert the communication module.
Fix the communication module (2) at the frequency inverter using the screw (3).
•
• Break out the pre-punched cut-out from the cover.
• Fix the cover again.
22
1
2
3
