TCP/IP configuration

In order to establish connection with a frequency inverter featuring a CM-VABus/TCP module, you will
have to configure IP settings for the CM-VABus/TCP module.
TCP/IP configuration can be performed in different ways.
• TCP/IP configuration program, see Chapter 7.4.1 "TCP configurations tool".
• Parameter settings with VPlus via service port of frequency inverter (KP232), see Chapter 7.4.2.1
"Basic IP settings".
• Control panel.
7.4.1

TCP configurations tool

There are different ways to start the "TCP configuration tool":
• In the "Inverter Manger" window click on the "Start TCP configuration tool".
• Double-click on the desktop icon "Vectron Network Configuration" (stand-alone application).

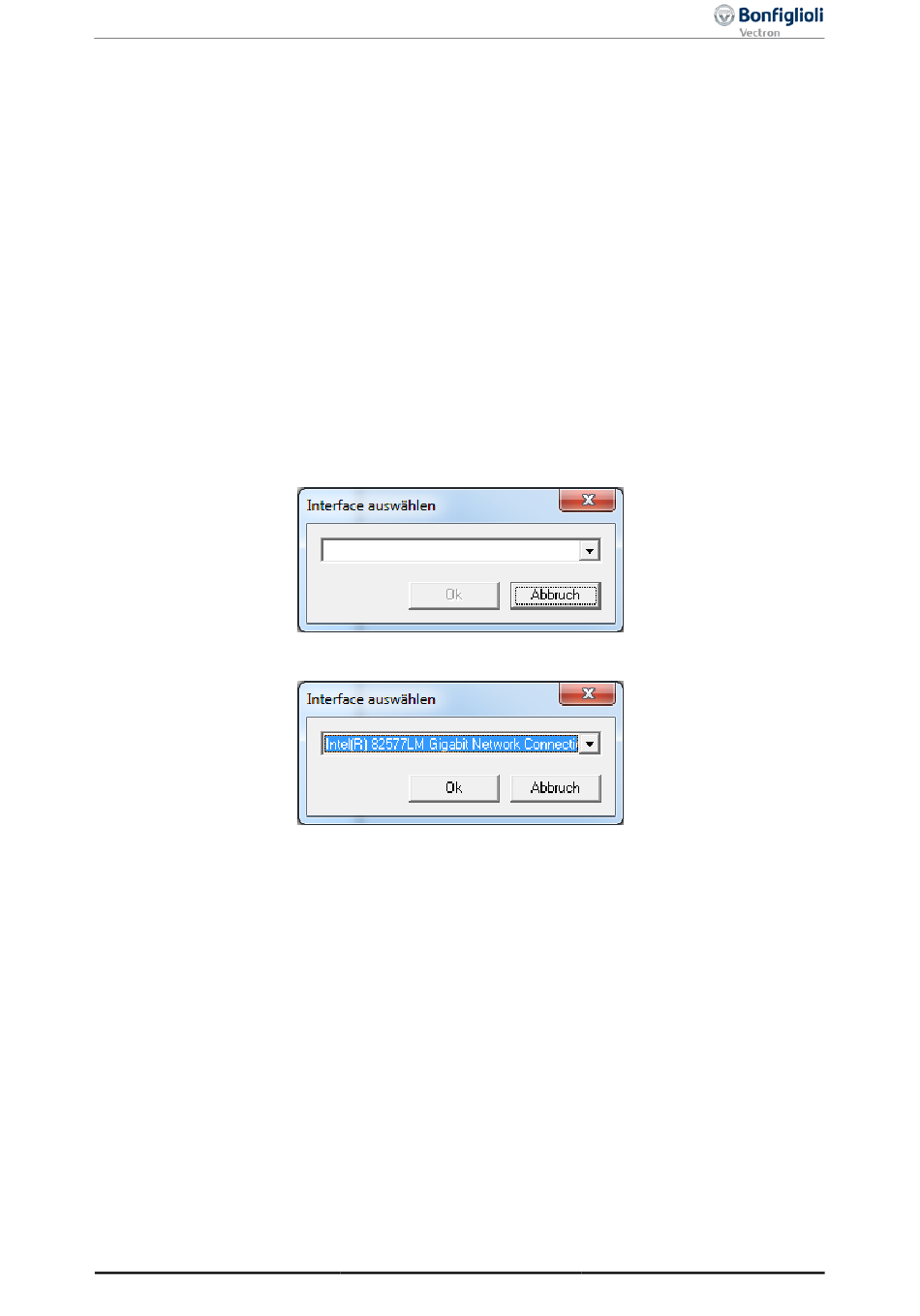

Once the application has started, a window will appear where you can select the Ethernet adapter via
which the frequency inverter is connected:
• Select the Ethernet adapter and click on "Ok".
Once the Ethernet adapter has been selected, the configuration program is ready to search for availa-
ble frequency inverters.
With the "Timeout" setting, you define how long the TCP configuration tool will wait for responses
from the frequency inverter.
