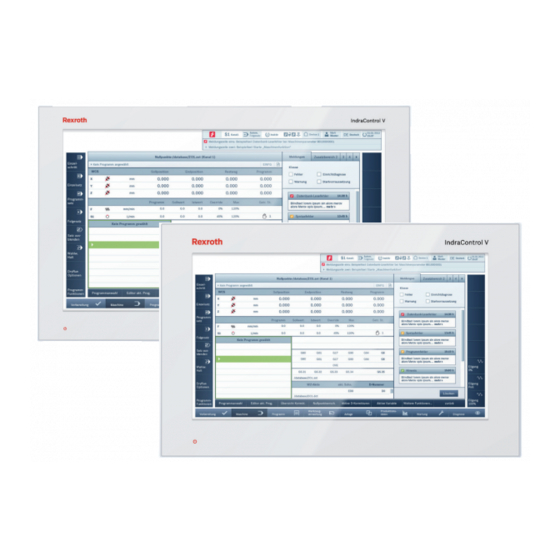

Bosch Rexroth IndraControl VDP 15.3 Operating Instructions Manual

Multitouch operator display – built-in devices
Hide thumbs
Table of Contents

Advertisement

Quick Links

Electric Drives
and Controls
Hydraulics
Rexroth IndraControl
VDP 15.3, 18.3, 21.3 Multitouch
Operator Display – Built-In Devices
Operating Instructions
Linear Motion and
Assembly Technologies
Pneumatics
Service
R911341191
Edition 02

Advertisement

Table of Contents
loading

Related Manuals for Bosch Rexroth IndraControl VDP 15.3

Summary of Contents for Bosch Rexroth IndraControl VDP 15.3

  • Page 1 Electric Drives Linear Motion and and Controls Hydraulics Assembly Technologies Pneumatics Service Rexroth IndraControl R911341191 Edition 02 VDP 15.3, 18.3, 21.3 Multitouch Operator Display – Built-In Devices Operating Instructions...
  • Page 2 © Bosch Rexroth AG 2014 This document, as well as the data, specifications and other information set forth in it, are the exclusive property of Bosch Rexroth AG. It may not be repro- duced or given to third parties without its consent.

  • Page 3: Table Of Contents

    VDP 15.3, 18.3, 21.3 Multitouch Bosch Rexroth AG Table of Contents Table of Contents Page About this Documentation..............1 Product Identification and Scope of Delivery........2 Product Identification................2 Scope of Delivery................... 3 Using the Safety Instructions..............3 Safety Instructions – Structure.............. 3 Explaining Signal Words and Safety Alert Symbol.........
  • Page 4 XSER Interfaces and XVID Interfaces........... 14 Assembly, Disassembly and Electrical Installation......15 10.1 Housing Dimensions................15 10.1.1 Rexroth Design..................15 10.1.2 Rexroth Special Design................ 16 10.1.3 Bosch Design..................17 10.2 Installation Notes................. 17 10.3 Assembly....................17 10.4 VDP Assembly Dimensions..............20 10.5...
  • Page 5 VDP 15.3, 18.3, 21.3 Multitouch Bosch Rexroth AG Table of Contents Page 15.1 Accessories and Spare Parts............... 30 15.2 Type Code.................... 31 Disposal....................31 16.1 Take-Back..................... 31 16.2 Packaging..................... 32 Service and Support................32 Index....................35 DOK-SUPPL*-VDPXX.3MTBU-IT02-EN-P...
  • Page 6 Bosch Rexroth AG VDP 15.3, 18.3, 21.3 Multitouch DOK-SUPPL*-VDPXX.3MTBU-IT02-EN-P...

  • Page 7: About This Documentation

    VDP 15.3, 18.3, 21.3 Multitouch Bosch Rexroth AG About this Documentation 1 About this Documentation Overview – target groups and product phases The activities, product phases and target groups that refer to the present docu- mentation are marked in red color in the following figure.

  • Page 8: Product Identification And Scope Of Delivery

    Please email your feedback on the documentations to Feed- back.Documentation@boschrexroth.de. Directly insert comments in the elec- tronic PDF document and send the PDF file to Bosch Rexroth. 2 Product Identification and Scope of Delivery 2.1 Product Identification The type plate is located on the rear panel.

  • Page 9: Scope Of Delivery

    IN 3AC 230V 50760Hz : AC 230V / 115V OUT 10/7,5/5/5/1,5/1,5A max. : 0,7A / 1,4A SN: 004012652 I-C-B-T-V I-C-B-H-T-V IND.CONT-EQ 17YB Bosch Rexroth Electric Drives and Controls GmbH SW-Version V0,002 XXXXXXXXXXXXXXXXX D-6471 1 Erbach Made in Germany IND.CONT.EQ 17YB 123456814...

  • Page 10: Explaining Signal Words And Safety Alert Symbol

    Bosch Rexroth AG VDP 15.3, 18.3, 21.3 Multitouch Using the Safety Instructions Consequences and Safety alert symbol source of danger Signal word Burns and chemical burns due to wrong CAUTION battery treatment! Do not open the batteries and do not heat them over 80 °C.

  • Page 11: Symbols Used

    This is a tip. 4 Intended Use The Bosch Rexroth operator terminals are passive operation and visualization terminals. They form a PC-based operator terminal when used with a Bosch Rexroth control cabinet PC. Danger of destruction of the device if not ex-...

  • Page 12: Spare Parts, Accessories And Wear Parts

    Bosch Rexroth AG VDP 15.3, 18.3, 21.3 Multitouch Spare Parts, Accessories and Wear Parts Risk of destroying the touch screen or the front NOTICE panel by using inappropriate items. Operate the touch screen only with your finger or with a special touch pen (parts number 1070923266).

  • Page 13: Wear Parts

    VDP 15.3, 18.3, 21.3 Multitouch Bosch Rexroth AG Ambient Conditions Ordering code Part number Description RKB0008/007,5 (*******-*******-*******) R911172971 Length: 7.5 m RKB0008/010,0 (*******-*******-*******) R911170153 Length: 10 m RKB0008/015,0 (*******-*******-*******) R911171183 Length: 15 m RKB0008/020,0 (*******-*******-*******) R911171184 Length: 20 m RKB0008/025,0 (*******-*******-*******)
  • Page 14 Bosch Rexroth AG VDP 15.3, 18.3, 21.3 Multitouch Ambient Conditions In operation Transport Storage Humidity Min. relative humidity: Min. relative humidity: Min. relative humidity: Max. relative humidity: Max. relative humidity: Max. relative humidity: 85 % 75 % 85 % Min. absolute humidity: Min.

  • Page 15: Technical Data

    VDP 15.3, 18.3, 21.3 Multitouch Bosch Rexroth AG Technical Data 7 Technical Data 7.1 General Technical Data VDP 15.3GA VDP 18.3GBN VDP 21.3GC (Rexroth design) (Rexroth design) (Rexroth design) VDP 15.3CL VDP 21.3CN (Bosch design) (Bosch design) Display 396 mm TFT (15") 470 mm TFT (18")

  • Page 16: Standards

    Bosch Rexroth AG VDP 15.3, 18.3, 21.3 Multitouch Standards 8 Standards 8.1 General Information The products have been developed according to the current German edition of the standards at the time of product development. 8.2 Used Standards Standard Meaning EN 60,204 -1...

  • Page 17: Ul/Csa Certified

    VDP 15.3, 18.3, 21.3 Multitouch Bosch Rexroth AG Standards Standard Title Edition DIN EN 61000-6-4 Electromagnetic Compatibility (EMC) September 2007 (VDE 0839-6-4) Part: 6-4: Generic standards – emission standard for indus- trial environments (IEC 61000-6-4:2006) DIN EN 61000-6-2 Electromagnetic Compatibility (EMC)

  • Page 18: Interfaces

    Bosch Rexroth AG VDP 15.3, 18.3, 21.3 Multitouch Interfaces 9 Interfaces 9.1 View Fig. 9-1: Interfaces on the operating display 9.2 Overview Designation at Connection type Connector type, inte- Mating connector or the housing grated cable (from outside) ① S1 chapter 9.4 "S1 DIP Switch"...

  • Page 19: Dc 24 V Voltage Supply

    VDP 15.3, 18.3, 21.3 Multitouch Bosch Rexroth AG Interfaces 9.3 DC 24 V Voltage Supply Fig. 9-2: Interface for 24 V voltage supply Function Supply voltage +24 V Supply voltage 0 V n. c. Use a 24 V industrial power supply unit acc. to DIN EN 60742, classification VDE 0551, for example "VAP01.1H-W23-024-010-NN"...

  • Page 20: Xser Interfaces And Xvid Interfaces

    Bosch Rexroth AG VDP 15.3, 18.3, 21.3 Multitouch Interfaces Operation of the USB ports on the operating display The USB speed at the operating display depends on the cable length of the XSER connection and of the DIP switch setting, see tab.

  • Page 21: Assembly, Disassembly And Electrical Installation

    VDP 15.3, 18.3, 21.3 Multitouch Bosch Rexroth AG Assembly, Disassembly and Electrical Installation CDI interface, data (XSER) Violet CDI interface, screen (XVID) Black Tab. 9-4: Color-coding of the interface 10 Assembly, Disassembly and Electrical Installation 10.1 Housing Dimensions 10.1.1 Rexroth Design 422 mm (VDP 15.3), 554 mm (VDP 21.3)

  • Page 22: Rexroth Special Design

    Bosch Rexroth AG VDP 15.3, 18.3, 21.3 Multitouch Assembly, Disassembly and Electrical Installation 10.1.2 Rexroth Special Design 8 mm 412 mm 56,5 mm 490 mm ① Field of vision of the display Fig. 10-2: Housing dimensions of the operating display VDP 18.3 in millimetres, Rexroth spe-...

  • Page 23: Bosch Design

    VDP 15.3, 18.3, 21.3 Multitouch Bosch Rexroth AG Assembly, Disassembly and Electrical Installation 10.1.3 Bosch Design 420 mm (VDP 15.3), 552 mm (VDP 21.3) 346 mm (VDP 15.3), 478 mm (VDP 21.3) ① Field of vision of the display Fig. 10-3: Housing dimensions of the operating display VDP 15.3/VDP 21.3 in millimetres, Bosch design 10.2 Installation Notes...
  • Page 24 Bosch Rexroth AG VDP 15.3, 18.3, 21.3 Multitouch Assembly, Disassembly and Electrical Installation Loss of degree of protection IP 65! The housing in which the operating display is installed, has to fulfil the following conditions: free from impurities ● sufficient mechanical strength and flatness ●...
  • Page 25 VDP 15.3, 18.3, 21.3 Multitouch Bosch Rexroth AG Assembly, Disassembly and Electrical Installation Fig. 10-5: Clamp fastening 4. Tighten the clamping screws. Mechanic damage due to incorrect mounting NOTICE torque. Tighten the screws and nuts with the corresponding torque according to the fol- lowing table.

  • Page 26: Vdp Assembly Dimensions

    Bosch Rexroth AG VDP 15.3, 18.3, 21.3 Multitouch Assembly, Disassembly and Electrical Installation 10.4 VDP Assembly Dimensions 535 mm (VDP 21.3) 473 mm (VDP 18.3) 403 mm (VDP 15.3) ① Mounting cut-out Fig. 10-6: Assembly dimensions in millimetres 10.5 Disassembly 1.

  • Page 27: Electrical Wiring

    VDP 15.3, 18.3, 21.3 Multitouch Bosch Rexroth AG Assembly, Disassembly and Electrical Installation 10.6 Electrical Wiring 10.6.1 Connecting the Control Cabinet PC to Operating Display Connection diagram Violet XSER XSER Operator display Control cabinet PC XVID XVID Black Functional earth ground Fig.
  • Page 28 Bosch Rexroth AG VDP 15.3, 18.3, 21.3 Multitouch Assembly, Disassembly and Electrical Installation When installing CDI cables with a diameter of 7.4 mm observe the bending radius: Radius (when bended once during installation): 4 × cable diame- ● Minimum bending radius (when moved permanently): 8 × cable ●...

  • Page 29: Connecting The Operatingdisplay To The 24 V Voltage Supply

    VDP 15.3, 18.3, 21.3 Multitouch Bosch Rexroth AG Assembly, Disassembly and Electrical Installation 10.6.2 Connecting the OperatingDisplay to the 24 V Voltage Supply Connection diagram 24 V voltage X1S1 Potential-free supply industrial power supply Operator display unit acc. to DIN EN 60742, classification VDE 0551 Fig.

  • Page 30: Connection Scheme - Power Supply Unit, Ups, Control Cabinet Pc And Operating Display

    Bosch Rexroth AG VDP 15.3, 18.3, 21.3 Multitouch Assembly, Disassembly and Electrical Installation 10.6.3 Connection Scheme – Power Supply Unit, UPS, Control Cabinet PC and Operating Display USB cable USB connection USB connection for USB2.0, max. 5 m Type A Type B XUSB1..6...
  • Page 31 VDP 15.3, 18.3, 21.3 Multitouch Bosch Rexroth AG Assembly, Disassembly and Electrical Installation Equipotential Bonding Make sure that no compensating current flows via the cable shield of the CDI cables during the installation of the equipotential bonding between device and machine parts.
  • Page 32 Bosch Rexroth AG VDP 15.3, 18.3, 21.3 Multitouch Assembly, Disassembly and Electrical Installation Comply with the following steps during the assembly of the shield connection: 1. Only remove the CDI cable jacket on the length required for the connec- tion.

  • Page 33: Commissioning

    VDP 15.3, 18.3, 21.3 Multitouch Bosch Rexroth AG Commissioning Fig. 10-15: Foil shield removed 3. Fasten cable with EMC shield clamps. Fig. 10-16: CDI cable with shield clamp More shield clamps: ① Manufacturer: Ikotec ② Manufacturer: Phoenix Contact Fig. 10-17: Shield clamps 11 Commissioning The product can be used directly, no configuration is required.

  • Page 34: Device Description

    Bosch Rexroth AG VDP 15.3, 18.3, 21.3 Multitouch Error Causes and Elimination 12 Device Description 12.1 General Information ① Status displays Fig. 12-1: Front view 12.2 Operating and Error Display A status LED is positioned in the lower area of the front plate.

  • Page 35: Maintenance

    The backlight is subject to wear, see chapter 5.5 "Wear Parts" on page A fading backlight causes a progressive deterioration display readability, so that a replacement is necessary. For further information please contact the Bosch Rexroth Service. 14.3 Cleaning Notes...

  • Page 36: Regular Maintenance Tasks

    Bosch Rexroth AG VDP 15.3, 18.3, 21.3 Multitouch Ordering Information 14.4 Regular Maintenance Tasks At least once a year, all plug and terminal connections of the components are ● to be checked regarding proper tightness and possible damage. Check for wire break or crimped lines.

  • Page 37: Type Code

    15,6“, Multitouch ......= GA 18,5“, Multitouch with front USB ..= GB 21,5“, Multitouch ......= GC Customized Design Bosch: 15,6“, Multitouch ....= CL Bosch: 21,5“, Multitouch ....= CN Additional option Without ..........= N Control panel interface CDI ............

  • Page 38: Packaging

    Bosch Rexroth AG VDP 15.3, 18.3, 21.3 Multitouch Service and Support Furthermore, the products returned for disposal must not contain any undue foreign material or foreign components. Send the products "free domicile" to the following address: Bosch Rexroth AG Electric Drives and Controls Bürgermeister-Dr.-Nebel-Straße 2...
  • Page 39 VDP 15.3, 18.3, 21.3 Multitouch Bosch Rexroth AG Service and Support Your contact data (phone and fax number as well as your email address) ● 33/37 DOK-SUPPL*-VDPXX.3MTBU-IT02-EN-P...
  • Page 40 Bosch Rexroth AG VDP 15.3, 18.3, 21.3 Multitouch 34/37 DOK-SUPPL*-VDPXX.3MTBU-IT02-EN-P...

  • Page 41: Index

    VDP 15.3, 18.3, 21.3 Multitouch Bosch Rexroth AG Index Index 0 … 9 24 V voltage supply....... 13 Feedback........2 Accessories........6 Housing dimensions...... 15 Ambient conditions......7 Assembly........15 Assembly dimensions....20 Installation notes......17 Intended use........5 Interfaces........12 Backlight.........
  • Page 42 Bosch Rexroth AG VDP 15.3, 18.3, 21.3 Multitouch Index Support See service hotline....32 Symbols.......... 5 Target groups......... 1 Technical data........ 9 Voltage supply......13 Type plate........2 UL/CSA certified......11 Uninterruptible power supply..6 UPS..........6 USB interfaces......13 Use, intended.........
  • Page 43 VDP 15.3, 18.3, 21.3 Multitouch Bosch Rexroth AG Notes...
  • Page 44 Bosch Rexroth AG Electric Drives and Controls P.O. Box 13 57 97803 Lohr, Germany Bgm.-Dr.-Nebel-Str. 2 97816 Lohr, Germany Tel. +49 9352 18 0 +49 9352 18 8400 www.boschrexroth.com/electrics DOK-SUPPL*-VDPXX.3MTBU-IT02-EN-P...
