TECHNICAL DESCRIPTION

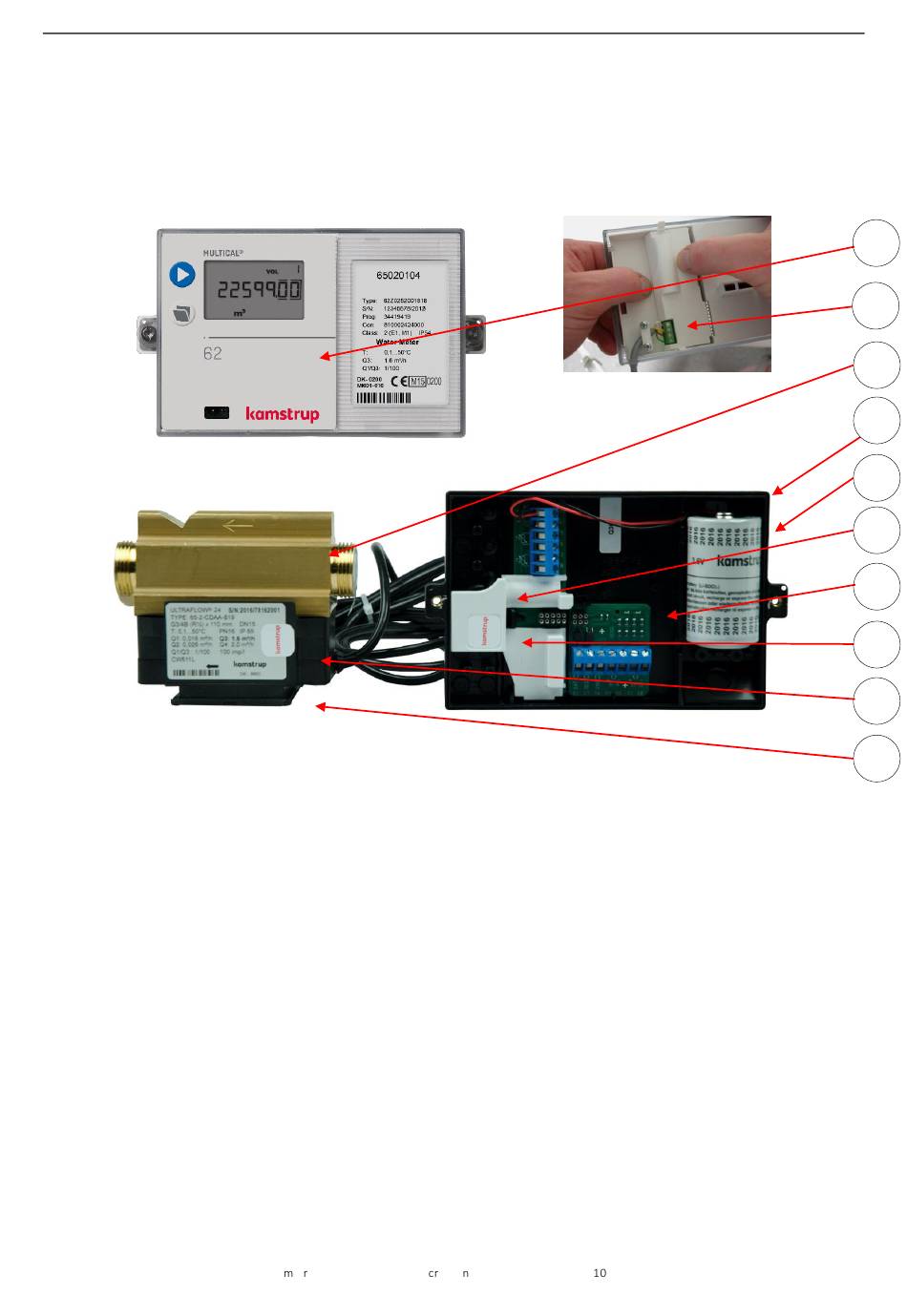

1.1 Mechanical construction

1. Transparent top cover with front plate (Blue: cold water meter, Red: hot water meter)
2. Cabinet for electronics unit
3. Verification cover. The top cover can be dismounted without breaking the verification seal
4. Verification label
5. Meter housing
6. Signal housing
7. Fitting, also for wall mounting. Screws and rawlplugs for wall mounting are enclosed with
the meter (item no. 3130-105)
8. Supply: Battery, 24 VAC or 230 VAC. Can be replaced without breaking the verification seal
9. Base module
10. Top module
Optional equipment for cold water meter only:
o Strainer (dirt filter) for DN15 and DN40 with gasket
o Anti-pollution check valves for DN15 to DN40 with gasket (NF EN 13959)
8
Figure 1
