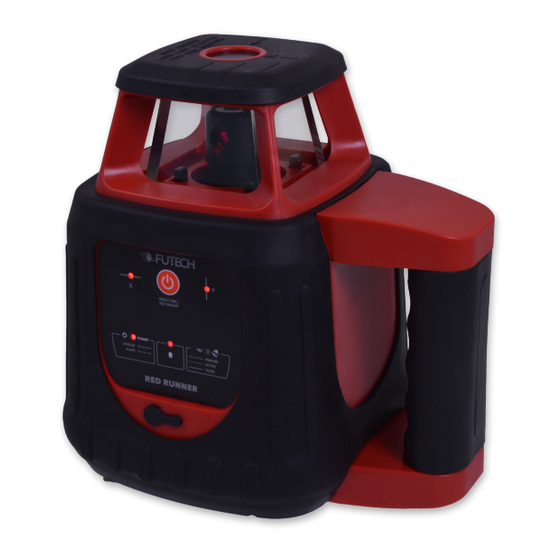

Futech RED RUNNER Manual
  1. Manuals
  2. Brands
  3. Futech Manuals
  4. Measuring Instruments
  5. RED RUNNER
  6. Manual

Futech RED RUNNER Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

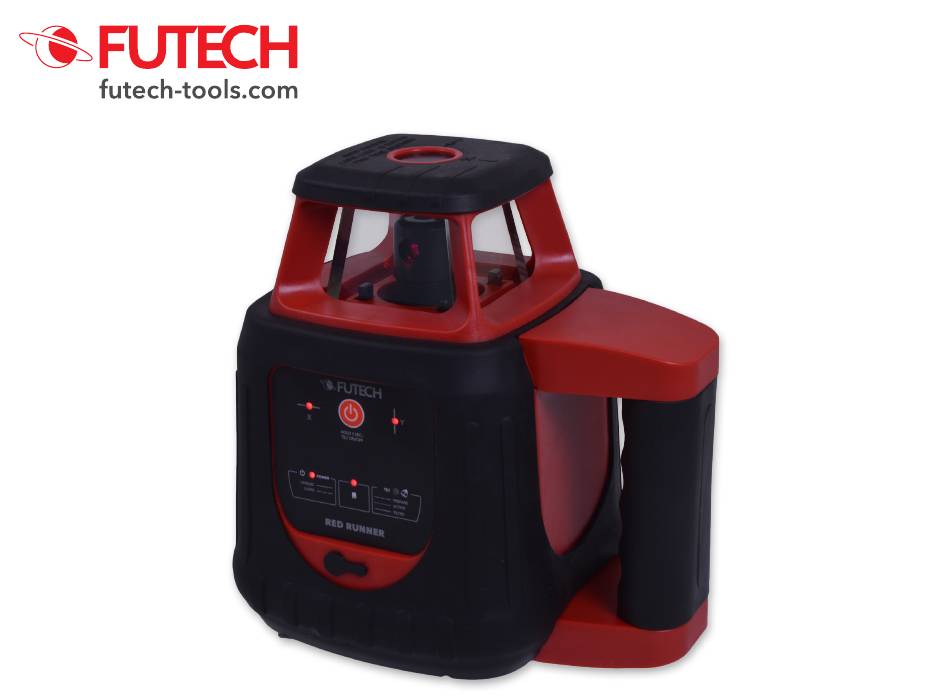

RED RUNNER
MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the RED RUNNER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Futech RED RUNNER

Summary of Contents for Futech RED RUNNER

  • Page 1 RED RUNNER MANUAL...
  • Page 2 Congratulations! On choosing this FUTECH instrument. FUTECH provides measuring instruments of precision and quality. Contributions from professional end users enable us to offer innovative, easy-to-use equipment. RED RUNNER Professional Rotation laser with ultra visible laser beams. Automatic levelling using electronic stabilizers . This system enables greater stability and faster levelling.
  • Page 3 RED RUNNER MANUAL Parts of the housing X and Y axis marking Laser exit Receiving points for remote control Control panel 5/8” threaded tripod adaptor fitting Controle panel On/off button x-axis indicator light y-axis indicator light power indicator light 10. battery indicator light 11.
  • Page 4 First time usage Remove all protection foile. Place 4x C Alkaline batteries Turn the device on (6). Pay attention that the device isn’t too tilted (maximum 5°). If the device is tilted more then 5°, the laser beam will keep blinking and the x-axis (7) and y-axis (8) indicator lights will blink too.
  • Page 5 RED RUNNER MANUAL IMPORTANT ∙ A faster rotation speed is designated by the use of a laser receiver. ∙ The slower the rotational speed, the better it will be visible with your eyes. Slopefucntion The instruments shows a 100% horizontal laser beam by default. Power inducator (9) lights up continuously.
  • Page 6 Tilt functie The hold function avoids measuring errors in case the instrument moved uninten- tionally after it was fully set up (e.g. a gurt of wind, unstable floor, an external manip- ulation…). In those cases, the hold function will automatically stop spinning after the instrument moved.

  • Page 7: Limits Of Use

    ∙ Use of products with obviously recog- in hazardous areas, or in close proximity ∙ To inform FUTECH immediately if the nizable damages or defects. to electrical installations or similar sit- product and the application becomes ∙...
  • Page 8 HAZARDS OF USE by lightning. international rules and regulations are WARNINGS ∙ Do not use the product in a thunder- observed. Before transportation or ∙ The person responsible for the product storm. shipping contact your local passenger must ensure that it is used in accord- ∙...

  • Page 9: Laser Classification

    RED RUNNER MANUAL environmental contamination. ∙ special warning signs in the laser By disposing of the product irrespon- working area sibly you may enable unauthorized if used and operated as defined in this user persons to use it in contravention of manual due to the low eye hazard level.

  • Page 10: Accuracy Control

    ACCURACY CONTROL If your instrument does not reach the re- Monitor horizontal levelling quired tolerance, it should be returned ∙ Choose a room ±10 m long to your service centre or to your reseller ∙ Place the instrument next to wall no. 1. for service.

  • Page 11: Technical Specifications

    RED RUNNER MANUAL TECHNICAL SPECIFICATIONS accuracy ± 1mm / 10m levelling range ± 5° levelling motor slope fucntion ± 5° (x- and y-axis) rotation speed (rpm) 0, 60, 300, 600 scan fucntion Ð laser wavelenght 635nm laser classification class ii...
