INSTALLATION METHOD:

This product has been designed to be installed into a plaster board, or existing masonry chimney breast.
Please note that any GF2 models from the e-series range are not suitable to be installed into a existing chimney breast.
Please seek advice from a professional, with reference to the structural integrity of the installation site.
if the products is to be installed into a open chimney or flue, it is important that the chimney/flue is blocked off to prevent any up/down draughts and falling debris which could restrict
and alter the airflow to the product.
It is also important to ensure that the product has a minimum internal clearance directly above and below the product of 50mm, this is to ensure that the product can circulate the re-
quired airflow for the heater unit.
The product should never be sealed into a opening with the use of silicones or adhesives as this can also alter the airflow and hinder any further servicing of the product.
Installing Product:

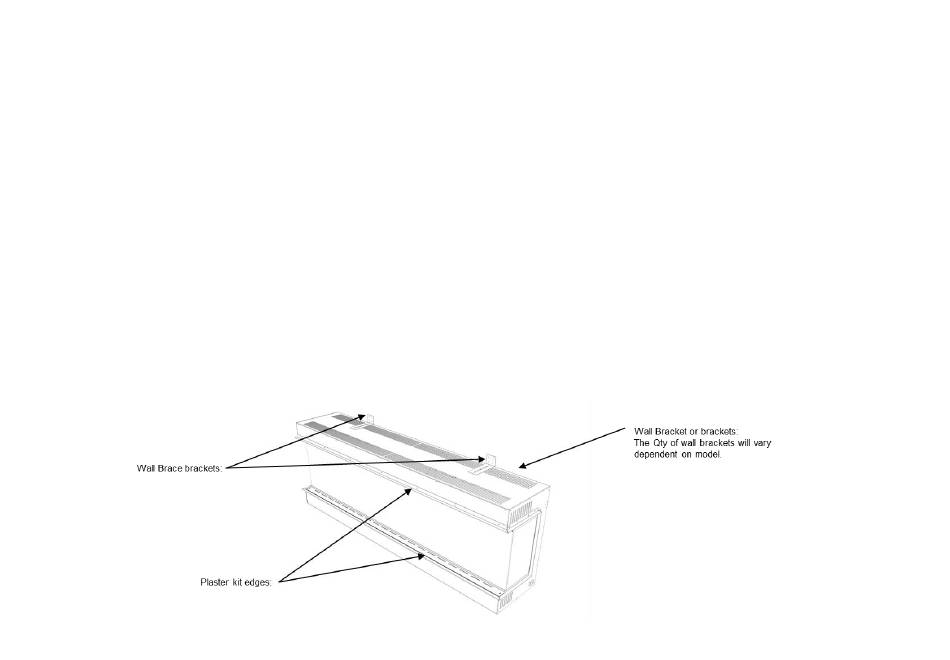

Each E-Series product is supplied complete with one or more wall mounting brackets. (Dependent on Model)
Establish the desired finished height from floor level to the bottom of the plaster kit of the product.
Fix the wall bracket to the wall ensuring to use the correct hardware fixings given the wall construction, Plaster board or Solid Wall.
Lift and hook the product onto the wall bracket and secure using the wall brace brackets.
Once the product is secured to the wall and connected to the power supply, the false construction such as plaster board wall or chimney breast can be formed around it.
It is important to allow for the finished face board when setting the depth of the frame construction.
It is essential to include header/Lintel at the required height to ensure the appliance does not support the weight of the finished wall.
Prepare the Cut-Out in the Plaster-board or Finishing Board, and install ensuring that the plaster kit edges are fitting to the inside of the Cut-out of the board.
