Default MCU card

Microcontrollers are supported using specialized 104-pin
MCU cards that can be inserted into the on-board MCU socket.
There are several types of cards which cover all microcontroller
-M4. The Default MCU card
families of Tiva ™ C Series Cortex ™
that comes with the EasyMx PRO v7 for Tiva
™
is shown on Figure 4-1. It contains the TM4C129XNCZAD
microcontroller with on-chip peripherals and is a great choice
for both beginners and professionals. After testing and building
the final program, this card can also be taken out of the board
socket and used in your final device.
1
TM4C129XNCZAD is the default chip of EasyMx PRO
for Tiva C Series. It belongs to ARM
™
It operates at 120MHz, has 1024 KB of Flash memory,
256 KB of single-cycle System SRAM, integrated Ethernet
controller with PHY, USB 2.0 (OTG, Host, Device), 140
General purpose I/O pins, 7x16/32-bit timers, 2x12-bit
A/D (24 channels), a 12-bit D/A , 8xUARTs, internal Real
time clock (RTC), 10xI2C, 4xSPI and 2xCAN controllers.
It has Serial wire debug (SWD) and JTAG interfaces for
programming and debugging.
2
25MHz crystal oscillator. We carefully chose the most
convenient crystal value that provides clock frequency
which can be used directly, or with the PLL multipliers
to create higher MCU clock value. MCU card also contains
32.768 kHz crystal oscillator which provides external
clock for RTCC module.
3
32.768-kHz external crystal oscillator which provides
external clock for the internal hibernation module.
page 8
C Series package
™
v7
™
Cortex -M4F family.
® ™
3
1
2

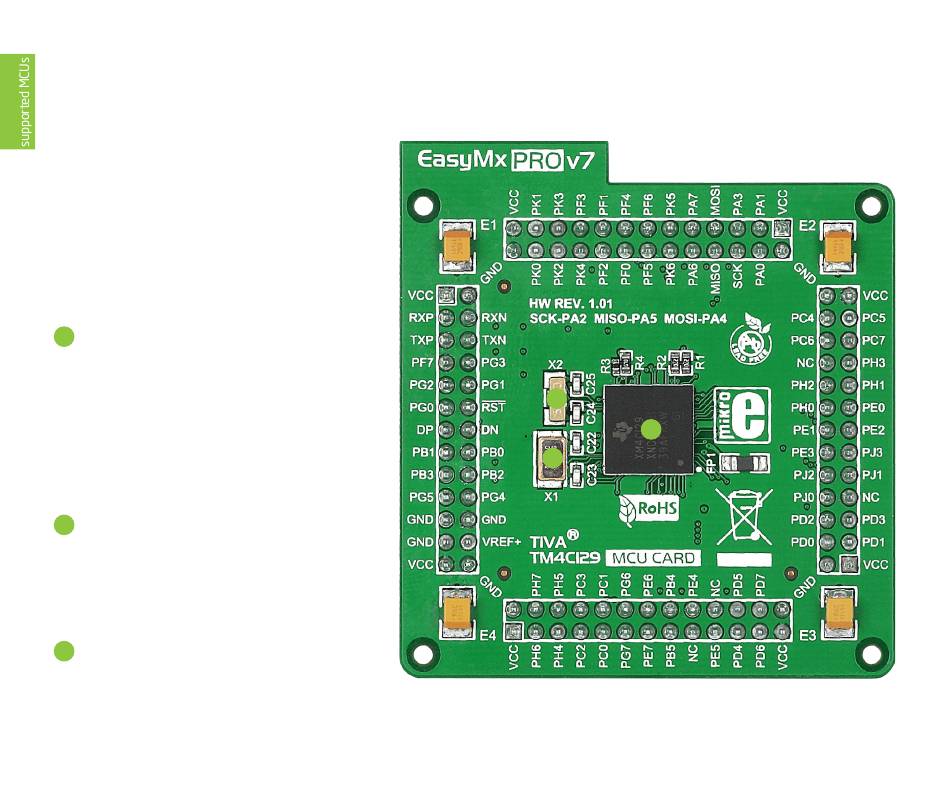

Figure 4-1: Default MCU card
with TM4C129XNCZAD
EasyMx PRO
v7
