Icom ID-800H Service Manual page 10

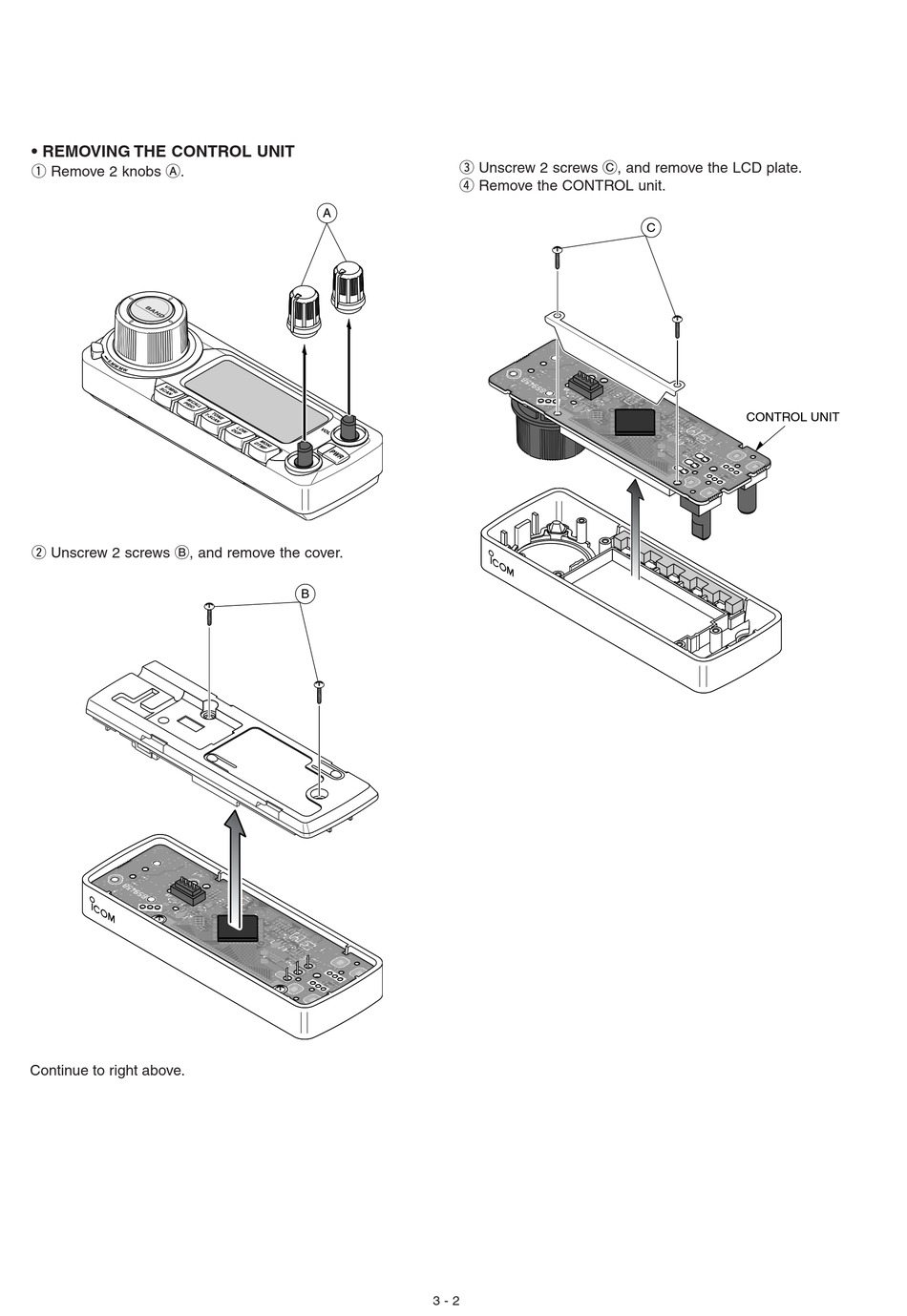

• REMOVING THE CONTROL UNIT
1 Remove 2 knobs A.
2 Unscrew 2 screws B, and remove the cover.
Continue to right above.
3 Unscrew 2 screws C, and remove the LCD plate.
4 Remove the CONTROL unit.
A
B
3 - 2
C
CONTROL UNIT
