SOFTWARE ADJUSTMENT (continued)
ADJUSTMENT
ITEM
SENSITIVITY 1 • Operating freq. : 118.100 MHz
[Tr] • C o n n e c t a n S S G t o t h e a n t e n n a
connector and set as :
Level
Modulation
Deviation
• Receiving
2 • Operating freq. : 146.100 MHz
• Receiving
3 • Operating freq. : 160.100 MHz
• Receiving
4 • Operating freq. : 173.900 MHz
• Receiving
5 • Operating freq. : 230.100 MHz
• Receiving
6 • Operating freq. : 260.100 MHz
• Receiving
7 • Operating freq. : 380.100 MHz
• Receiving
8 • Operating freq. : 399.900 MHz
• Receiving
9 • Operating freq. : 400.100 MHz
• Receiving
10 • Operating freq. : 429.900 MHz
• Receiving
*This output level of a standard signal generator (SSG) is indicated as SSG's open circuit.
ADJUSTMENT CONDITION
: 1 µV* (–107dBm)
: 1 kHz
: 3.5 kHz

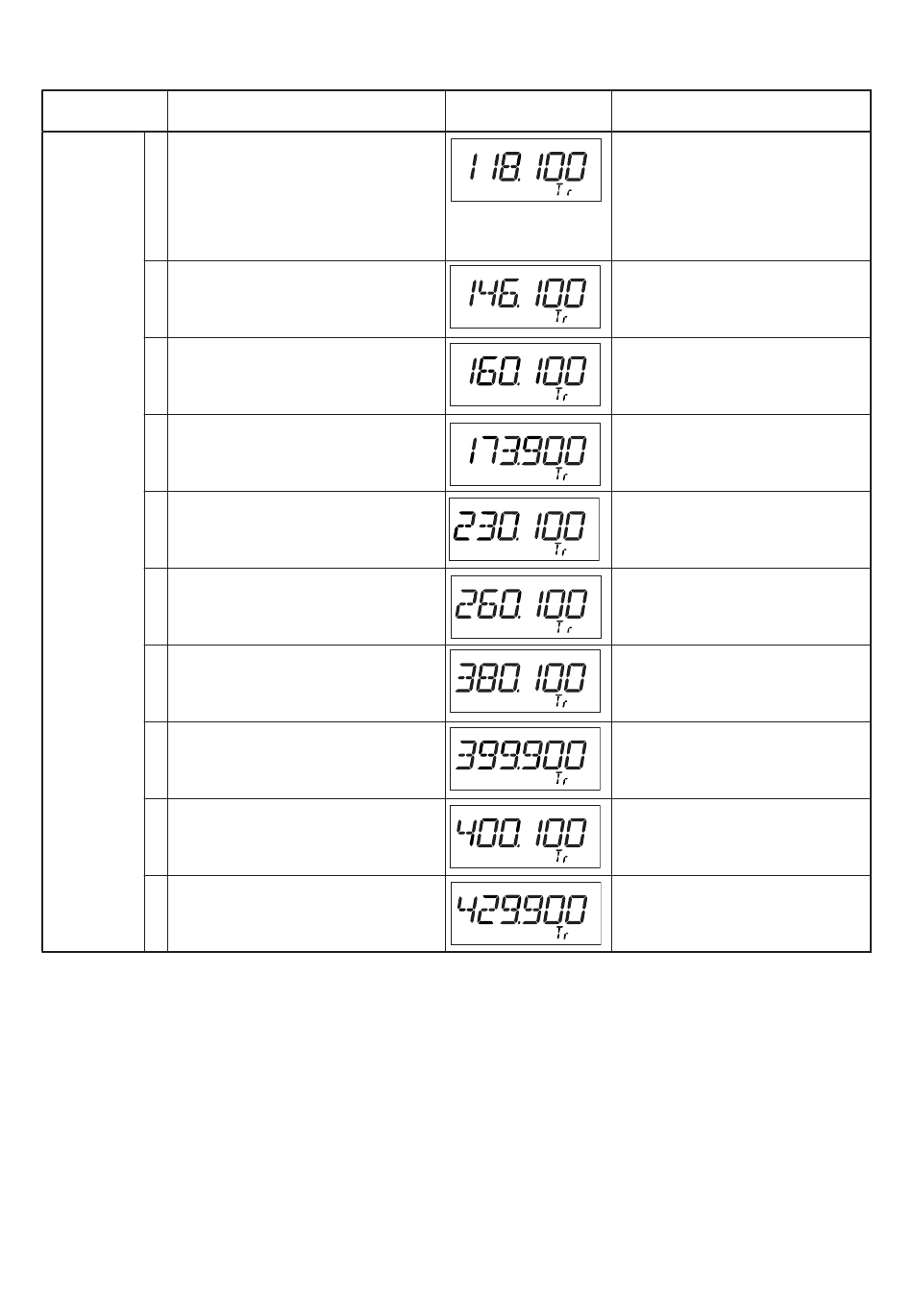

DISPLAY
5 - 6
OPERATION
• Push [BAND].
• Push [BAND].
• Push [BAND].
• Push [BAND].
• Push [BAND].
• Push [BAND].
• Push [BAND].
• Push [BAND].
• Push [BAND].
• Push [BAND].
